2007 Liberty KJ Factory Service Manual 13 - FRAME & BUMPERS

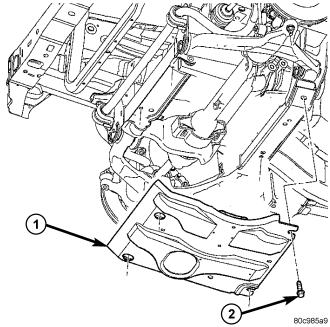

FRONT SKID PLATE

REMOVAL




1. Raise and support the vehicle.
2. Remove the skid plate bolts and remove the skid plate.

INSTALLATION




1. Install the skid plate.
2. Install the bolts and tighten to 61 N·m (45 ft. lbs.).
