2007 Liberty KJ Factory Service Manual 13 - FRAME & BUMPERS

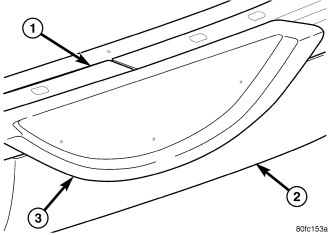

REAR FASCIA - RAIN DIVERTER

REMOVAL




1. Open the swing gate.
2. Remove the three rivets from the diverter and remove the diverter.

INSTALLATION




1. Install the diverter and install new rivets.
