PEDAL-CLUTCH
REMOVAL
1. Remove steering column lower cover and knee blocker for access.
2. Disconnect clutch pedal position switch wires.

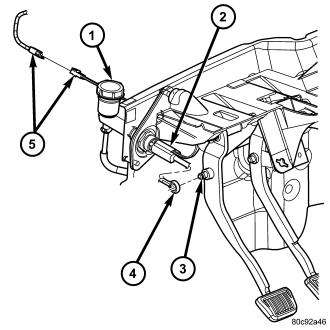

3. Disengage bushing lock tabs attaching clutch master cylinder actuator (4) to pedal pivot (3).
4. Remove nuts attaching pedal and bracket to dash panel and upper cowl support.
5. Separate pedal assemble from vehicle.
INSTALLATION
1. Place clutch pedal and bracket over studs on dash panel and cowl support.
2. Install pedal and bracket to dash panel nuts and tighten to 39 N·m (29 ft. lbs.).
3. Install actuator (4) on brake pedal pivot (3).
4. Connect clutch pedal position switch wires (5).
