RELAY-CLUTCH SWITCH OVERRIDE
DESCRIPTION
The clutch pedal position switch override relay is located in the Power Distribution Center (PDC). Refer to PDC cover label for location within PDC.
OPERATION
The clutch pedal position switch override relay, inhibits operation of the clutch pedal position switch when the vehicle transfer case is in the four wheel drive low-range position. This enables the starter motor to operate without depressing the clutch pedal, for off-road applications. If Diagnostic Trouble Codes (DTC's) for the override relay or transfer case switch are stored, override relay will be inhibited.
REMOVAL
NOTE: Refer to label on PDC cover for relay location.

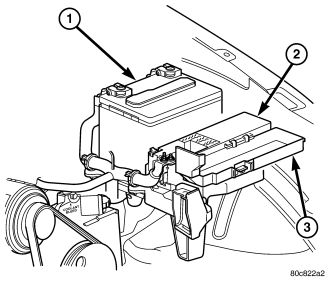

1. Remove PDC (2) cover (3).
2. Remove relay from PDC.
3. Check relay and PDC terminals for:
- Damage or corrosion
- Pin height (all terminals should be same height)
INSTALLATION
1. Install relay in PDC.
2. Install PDV cover.
3. Verify operation of relay.
