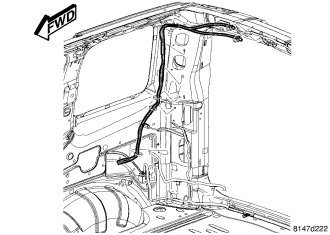

ANTENNA CABLE - SATELLITE RADIO
REMOVAL
1. Disconnect and isolate the battery cable.
2. Remove headliner (Refer to 23 - BODY/INTERIOR/HEADLINER - REMOVAL).
3. Disconnect antenna cable from antenna.
4. Remove antenna cable retainers from C-pillar and roof panel.
5. Disconnect antenna cable from satellite receiver.
INSTALLATION
1. Connect antenna cable to satellite receiver.
2. Install antenna cable retainers to C-pillar and roof panel.
3. Connect antenna cable to satellite antenna.
4. Install headliner (Refer to 23 - BODY/INTERIOR/HEADLINER - INSTALLATION).
5. Connect battery negative cable.
