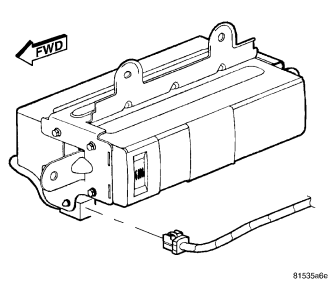

CD CHANGER
DESCRIPTION
The CD changer (if equipped) is mounted in the cargo area of the passenger compartment on the right rear quarter panel.
OPERATION
The CD changer will only operate when the ignition switch is in the On or Accessory positions, and the radio is turned on. The six-CD magazine may be ejected with the ignition in the Off position.
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the right rear quarter trim panel. (Refer to 23 - BODY/INTERIOR/QUARTER TRIM PANEL - REMOVAL).
3. Disconnect the electrical wire harness connector.
4. Remove the mounting fasteners.

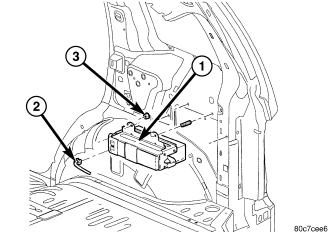

5. Remove the CD Changer (1) from the vehicle.
INSTALLATION
1. Install the CD Changer to the vehicle.
2. Install and tighten the mounting fasteners.
3. Connect the wire harness connector.
4. Install the right rear quarter trim panel (Refer to 23 - BODY/INTERIOR/QUARTER TRIM PANEL - INSTALLATION).
5. Connect the battery negative cable.
