RADIO
DESCRIPTION
RADIO
Available radios include:
- AM/FM/cassette with CD changer control feature (RBB sales code)
- AM/FM/cassette/CD/ with CD changer control feature (RAZ sales code)
- AM/FM/CD with CD changer control feature (RBK sales code)
- AM/FM/ 6 CD in-dash changer (RBQ sales code)
- AM/FM/cassette/CD with CD changer control feature (RAD, RBT or RBY sales code) - export only
- AM/FM/CD (REK sales code) - export only
- AM/FM/DVD with GPS navigation (RB1 sales code)
- AM/FM/DVD with GPS navigation (RB3 sales code) - export only
All radio receivers can communicate on the Programmable Communications Interface (PCI) data bus network.
COUNTRY CODE AND CABIN EQ SETTING - REK RADIO ONLY
The REK radio may require the country code and cabin EQ setting to be set if not programmed correctly.
If battery power is lost to radio, the anti-theft code must be entered before radio will operate.
If the region the vehicle will be driven in uses 10 kHz spacing on the AM band (i.e. 950, 960 etc.), set the Country Code to “USA”. If the region uses 9 kHz spacing, has LW and MW Bands, and uses RDS (i.e. AF, PTY, TA, etc.), set the radio for “EUR”. If neither of the previous settings apply, and the vehicle is not being driven in Japan, set the radio to “ROW”. Vehicles driven in Japan should have the radio set to “JPN”. The following chart list selected country codes and radio broadcast standards.
To enter the country code and EQ setting, use a scan tool.
| INTERNATIONAL COUNTRY CODE |
RADIO BROADCAST STD. |
| AFGHANISTAN (8AA) |
ROW |
| ALBANIA (8BA) |
ROW |
| ALGERIA (8AC) |
EUR |
| AMERICAN SAMOA (8AD) |
ROW |
| ANDORRA (8AE) |
ROW |
| ANGOLA (8AF) |
ROW |
| ANGUILLA (8HA) |
USA |
| ANTARCTICA (8HB) |
ROW |
| ANTIGUA (8AG) |
USA |
| ARGENTINA (8AJ) |
USA |
| ARMENIA (8HC) |
EUR |
| ARUBA (8AK) |
USA |
| AUSTRALIA (8AL) |
ROW |
| AUSTRIA (8AM) |
EUR |
| AZERBAIJAN (8HD) |
ROW |
| AZORES (8AN) |
USA |
| BAHAMAS (8AP) |
USA |
| BAHRAIN (8AR) |
ROW |
| BANGLADESH (8AS) |
ROW |
| BARBADOS & ISLANDS (8AT) |
ROW |
| BELARUS (8G5) |
EUR |
| BELGIUM & LUXEMBOURG (8AU) |
EUR |
| BELIZE (8AV) |
USA |
| BENIN (8WA) |
ROW |
| BERMUDA (8AX) |
USA |
| BOLIVIA (8AY) |
USA |
| BOSNIA-HERZEGOVINA (8HE) |
ROW |
| BOTSWANA (8AZ) |
ROW |
| BRAZIL (8A1) |
USA |
| BRITISH INDIA OCEAN (8A2) |
ROW |
| BRITISH VIRGIN ISLANDS (8A3) |
USA |
| BRUNEI (8A4) |
ROW |
| BULGARIA (8A5) |
EUR |
| BURKINA FASO (8GM) |
ROW |
| CAMBODIA/KAMPUCHEA (8DG) |
ROW |
| CAMEROON (8A9) |
ROW |
| CANARY ISLANDS (8BB) |
ROW |
| CAPE VERDE (8BD) |
ROW |
| CAYMAN ISLANDS (8BF) |
USA |
| CENTRAL AFRICAN REPUBLIC (8BG) |
ROW |
| CHAD (8BJ) |
ROW |
| CHILE (8BK) |
USA |
| CHINA MAINLAND (8BL) |
ROW |
| COLOMBIA (8BM) |
USA |
| COMOROS (8BN) |
ROW |
| CONGO (8BP) |
ROW |
| COSTA RICA (8BS) |
USA |
| CROATIA (8G7) |
EUR |
| CUBA (8BT) |
USA |
| CYPRUS (8BB) |
EUR |
| CZECH. REPUBLIC (8BW) |
EUR |
| DENMARK (8BX) |
EUR |
| DJIBOUTI (8BU) |
ROW |
| DOMINICA (8BZ) |
USA |
| DOMINICAN REPUBLIC (8B1) |
USA |
| ECUADOR (8B2) |
USA |
| EGYPT (8B3) |
ROW |
| EL SALVADOR (8B4) |
USA |
| EQUATORIAL GUINEA (8B5) |
ROW |
| ERITREA (8BU) |
ROW |
| ESTONIA (8B6) |
EUR |
| ETHIOPIA (8B7) |
ROW |
| FAEROE ISLANDS (8HG) |
ROW |
| FAUKLAND ISLANDS (8B8) |
ROW |
| FIJI (8B9) |
EUR |
| FINLAND (8CA) |
EUR |
| FRANCE (8CD) |
EUR |
| FRENCH GUIANA ( 8CC) |
ROW |
| FRENCH POLYNESIA / TAHITI (8F9) |
ROW |
| GABON (8CF) |
ROW |
| GAMBIA (8CG) |
ROW |
| GEORGIA (8HH) |
EUR |
| GERMANY (8CJ) |
EUR |
| GHANA (8CK) |
ROW |
| GIBRALTAR (8CL) |
ROW |
| GREECE (8CP) |
EUR |
| GREENLAND (8CR) |
EUR |
| GRENADA (8CS) |
USA |
| GUADELOUPE (8CT) |
ROW |
| GUAM (8CU) |
ROW |
| GUATEMALA (8CV) |
USA |
| GUINEA (8CW) |
ROW |
| GUINEA - BISSAU (8CX) |
ROW |
| GUYANA (8CY) |
USA |
| HAITI (8CZ) |
USA |
| HONDURAS (8C1) |
USA |
| HONG KONG (8C2) |
ROW |
| HUNGARY (8C3) |
EUR |
| ICELAND (8C4) |
EUR |
| INDIA (8C5) |
ROW |
| INDONESIA (8C6) |
ROW |
| IRAN (8C7) |
ROW |
| IRAQ (8C8) |
ROW |
| IRELAND (8C9) |
EUR |
| ISRAEL (8DA) |
ROW |
| ITALY (8DB) |
EUR |
| IVORY COAST (8DC) |
ROW |
| JAMAICA (8DD) |
USA |
| JAPAN (8DE) |
JAN |
| JORDAN (8DF) |
ROW |
| KAZAKSTAN (8G6) |
EUR |
| KENYA (8DH) |
ROW |
| KIRIBATI/GILBERT (8HJ) |
ROW |
| KUWAIT (8DK) |
ROW |
| KYRGYZSTAN (8HK) |
EUROPEAN |
| LAOS (8DM) |
ROW |
| LATVIA (8G2) |
EUR |
| LEBANON (8DN) |
ROW |
| LESOTHO (8DP) |
ROW |
| LIBERIA (8DR) |
ROW |
| LITHUANIA (8G3) |
EUR |
| LIBYA (8DT) |
ROW |
| MACAO (8DU) |
ROW |
| MALAGASY/MADAGASCAR (8DW) |
ROW |
| MALAWI (8DX) |
ROW |
| MALAYSIA (8DY) |
ROW |
| MALDIVES (8DZ) |
ROW |
| MALI (8D1) |
ROW |
| MALTA & GOZO (8D2) |
ROW |
| MARSHALL ISLANDS (8D4) |
ROW |
| MARTINIQUE (8D5) |
ROW |
| MAURITANIA (8D6) |
ROW |
| MAURITIUS (8D7) |
ROW |
| MAYOTTE (8HL) |
ROW |
| MEXICO (8D9) |
USA |
| MICRONESIA (8BE) |
ROW |
| MOLDOVA (8HM) |
EUR |
| MONACO (8EF) |
EUR |
| MONGOLIA (8EE) |
ROW |
| MOROCCO (8EG) |
EUR |
| MOZAMBIQUE (8PH) |
ROW |
| NAMIBIA (8EJ) |
ROW |
| NEPAL (8EL) |
ROW |
| NETHERLANDS (8EM) |
EUR |
| NETHERLANDS ANTILLES/CURACAO (8HN) |
USA |
| NEW CALEDONIA (8EN) |
ROW |
| NEW ZEALAND (8EP) |
ROW |
| NICARAGUA (8ER) |
USA |
| NIGER (8ES) |
ROW |
| NIGERIA (8ET) |
ROW |
| NORTH KOREA (8EV) |
ROW |
| NORWAY (8EW) |
EUR |
| OMAN (8EX) |
ROW |
| PAKISTAN (8EY) |
ROW |
| PANAMA (8EZ) |
USA |
| PAPUA NEW GUINEA (8E1) |
ROW |
| PARAGUAY (8E2) |
USA |
| PERU (8E4) |
USA |
| PHILIPPINES (8E5) |
ROW |
| POLAND (8E7) |
EUR |
| PORTUGAL (8E8) |
EUR |
| PUERTO RICO (8E9) |
USA |
| QATAR (8FA) |
ROW |
| ROMANIA (8FB) |
EUR |
| RUSSIA (8FE) |
EUR |
| RWANDA (8FD) |
ROW |
| SAO TOME (8FG) |
ROW |
| SAUDI ARABIA (8FH) |
ROW |
| SENEGAL (8FJ) |
ROW |
| SERBIA (8HS) |
EUR |
| SEYCHELLES (8FK) |
ROW |
| SIERRA LEONE (8FL) |
ROW |
| SINGAPORE (8FM) |
ROW |
| SLOVAKIA (8CE) |
EUR |
| SLOVENIA (8GX) |
EUR |
| SOLOMON ISLANDS (8FN) |
ROW |
| SOMALIA (8FP) |
ROW |
| SOUTH AFRICA (8FR) |
ROW |
| SOUTH KOREA (8DJ) |
ROW |
| SPAIN (8FS) |
EUR |
| SRI LANKA (8FT) |
EUR |
| ST. KITTS AND NEVIS (8FU) |
USA |
| ST. LUCIA (8FX) |
USA |
| ST. PIERRE & MIQUELON (8FZ) |
USA |
| ST. THOMAS & U.S. VIRGIN ISLANDS (8F1) |
USA |
| ST. VINCENT (8F2) |
USA |
| SUDAN (8F3) |
ROW |
| SURINAME (8F4) |
ROW |
| SWAZILAND (8F5) |
EUR |
| SWEDEN (8F6) |
EUR |
| SWITZERLAND (8F7) |
EUR |
| SYRIA (8F8) |
ROW |
| TAIWAN (8GA) |
ROW |
| TAJIKISTAN (8HT) |
EUR |
| TANZANIA (8GB) |
ROW |
| THAILAND (8GC) |
ROW |
| TOGO (8GD) |
ROW |
| TONGA (8GE) |
ROW |
| TRINIDAD & TOBAGO (8GF) |
USA |
| TUNISIA (8GG) |
EUR |
| TURKEY (8GH) |
ROW |
| TURKMENISTAN (8HV) |
EUR |
| TURKS & CAICOS ISLAND (8GJ) |
USA |
| TUVALU (8CM) |
ROW |
| UGANDA (8GK) |
ROW |
| UKRAINE (8FC) |
EUR |
| UNITED ARAB EMIRATES (8GL) |
ROW |
| UNITED KINGDOM (8CN) |
EUR |
| URUGUAY (8GN) |
USA |
| UZBEKISTAN (8HW) |
EUR |
| VANUATU (8GP) |
ROW |
| VATICAN CITY (8GR) |
EUR |
| VENEZUELA (8GS) |
USA |
| VIETNAM (8GT) |
ROW |
| WALLIS & FUTUNA (8GV) |
ROW |
| WESTERN SAMOA (8GW) |
ROW |
| YEMEN (8AH) |
ROW |
| YUGOSLAVIA (8HR) |
EUR |
| ZAIRE (8GY) |
ROW |
| ZAMBIA (8GZ) |
ROW |
| ZIMBABWE (8G1) |
ROW |
OPERATION
The radio receiver operates on ignition switched battery current that is available only when the ignition switch is in the On or Accessory positions. The electronic digital clock function of the radio operates on fused battery current supplied through the IOD fuse, regardless of the ignition switch position.
For complete circuit diagrams, refer to the appropriate wiring information.
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the instrument panel center trim panel.

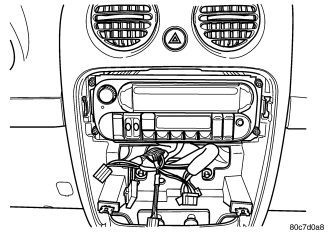

3. Remove the radio mounting fasteners.
CAUTION: Pulling the antenna cable straight out of the radio without pulling on the locking antenna connector could damage the cable or radio.

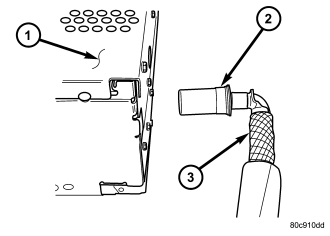

4. Disconnect the antenna cable by pulling the locking antenna connector (2) away from the radio.
5. Disconnect the electrical harness connector(s).
6. Remove radio from instrument panel.
INSTALLATION
1. Connect the wire harness connector(s).
2. Connect the antenna cable.
3. Install the radio to the instrument panel.
4. Install and tighten the radio mounting fasteners.
5. Install the instrument panel center trim panel.
6. Connect the battery negative cable.
