RECEIVER-SATELLITE
DESCRIPTION

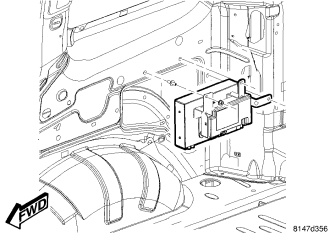

The satellite receiver is located behind the right rear quarter trim.
OPERATION
The satellite receiver module receives signals from the roof mounted antenna and processes this information before it is sent to the radio. The module operates on both battery feed circuits and CAN bus messages. It will operate with the ignition key in the run or accessory position only.
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the right quarter trim panel (Refer to 23 - BODY/INTERIOR/QUARTER TRIM PANEL - REMOVAL).
3. Remove mounting fasteners.
4. Disconnect electrical harness connector.
5. Remove the hands free module from the mounting bracket.
6. Remove the satellite module mounting fasteners.
INSTALLATION
1. Position satellite module to bracket.
2. Install and tighten mounting fasteners.
3. Position hands free module to bracket.
4. Install and tighten mounting fasteners.
5. Connect electrical harness connectors and antenna cables.
6. Position bracket assembly to quarter panel.
7. Install and tighten mounting fasteners.
8. Install quarter trim panel.
9. Connect battery negative cable.
