2007 Liberty KJ Factory Service Manual 21 - TRANSMISSION AND TRANSFER CASE

SCHEMATICS AND DIAGRAMS

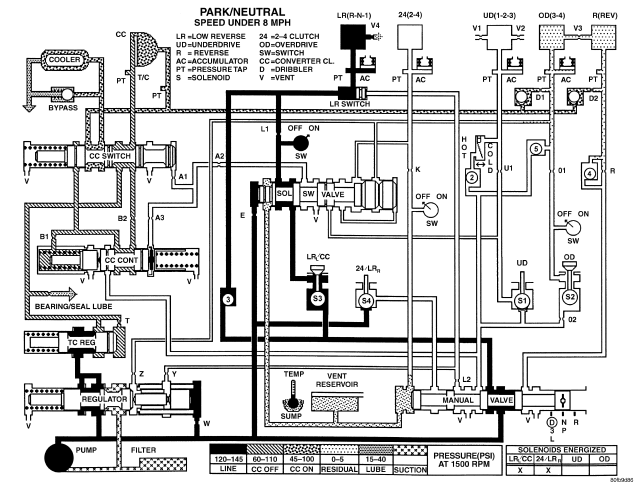

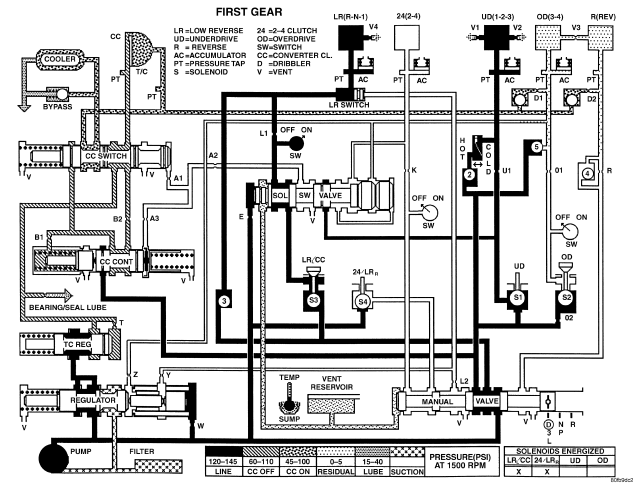

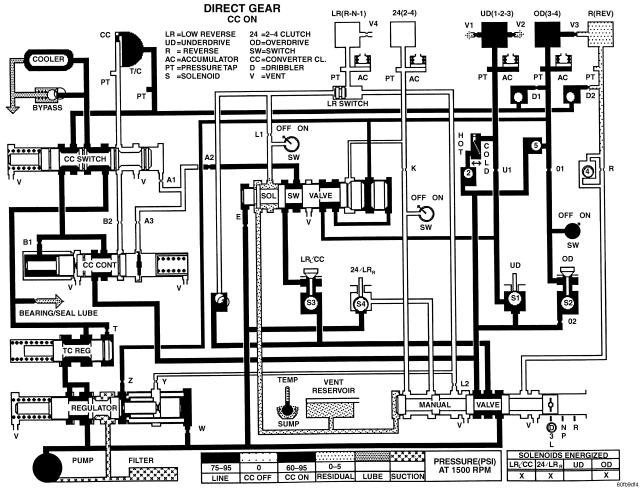

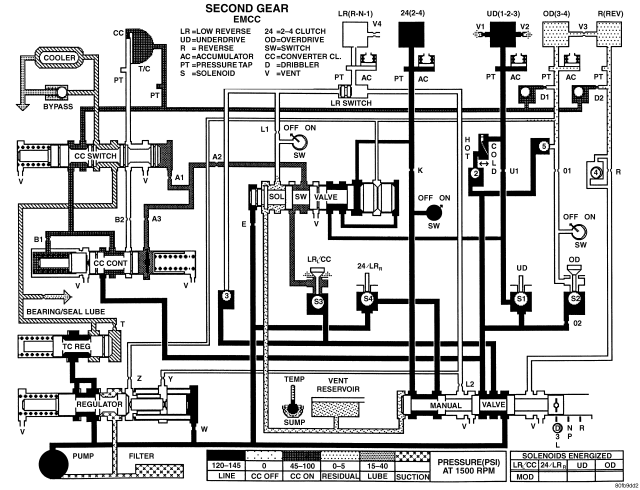

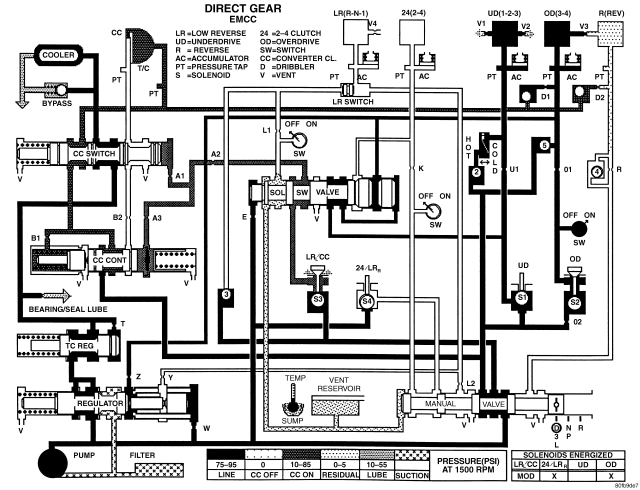

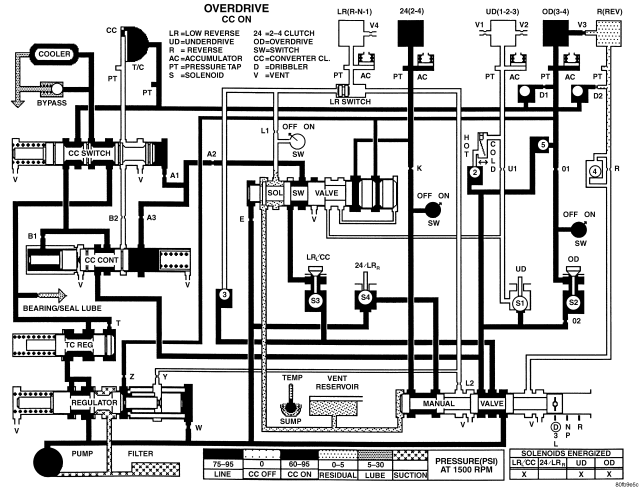

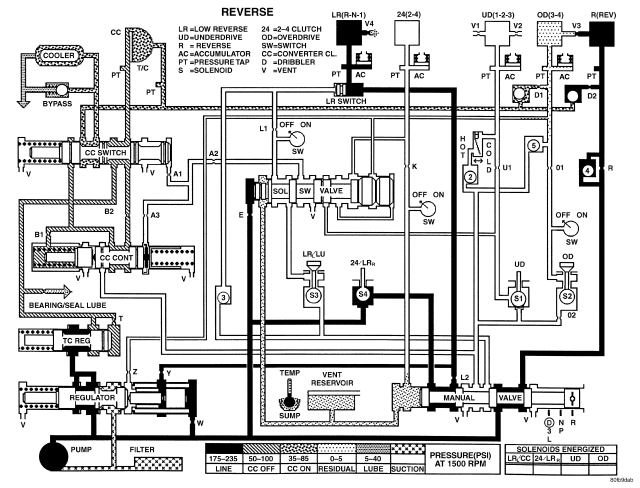

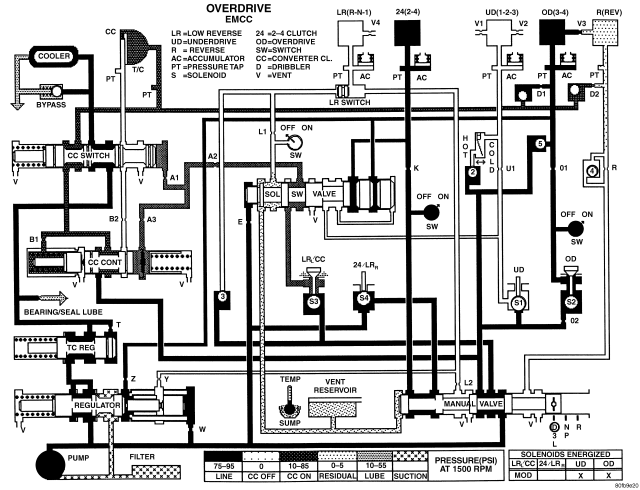

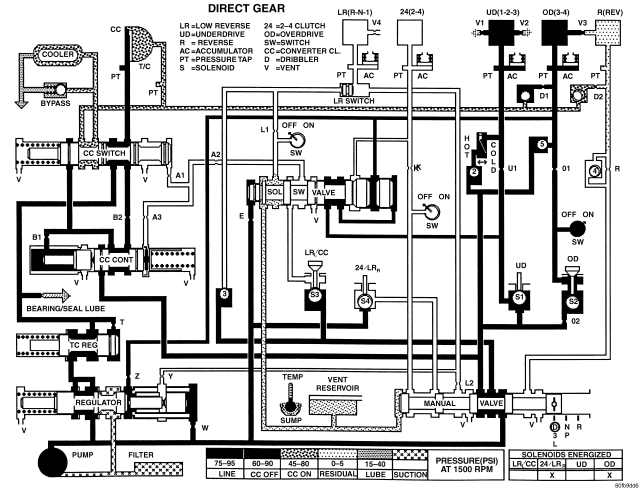

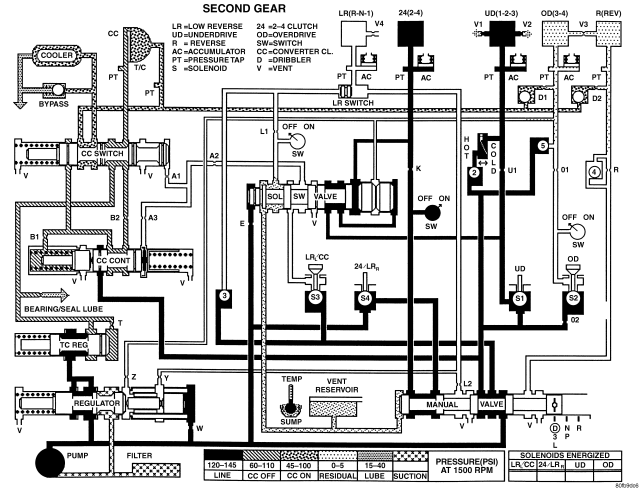

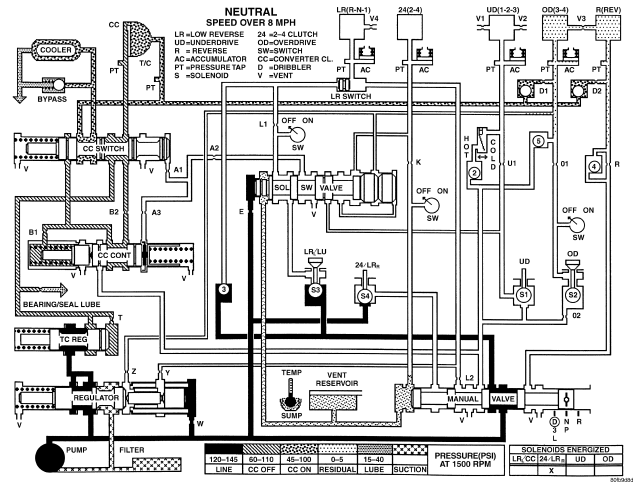

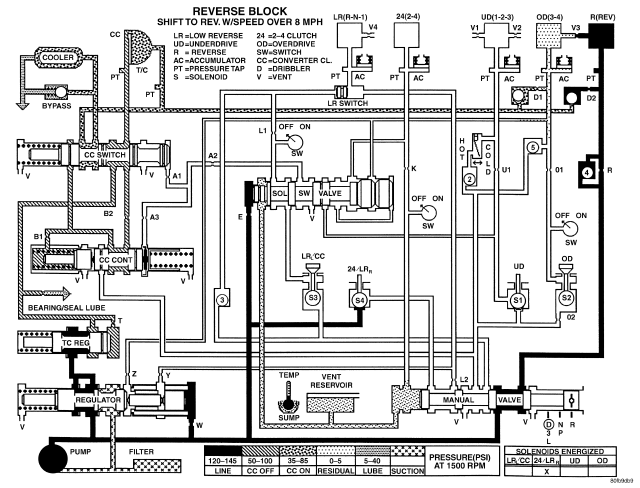

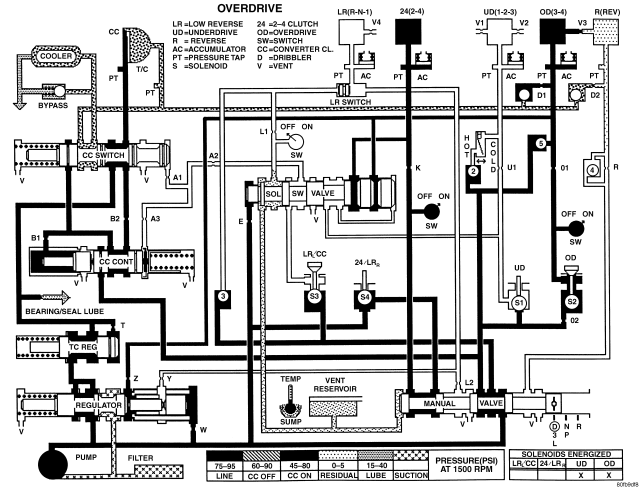

42RLE - WITHOUT VARIABLE LINE PRESSURE

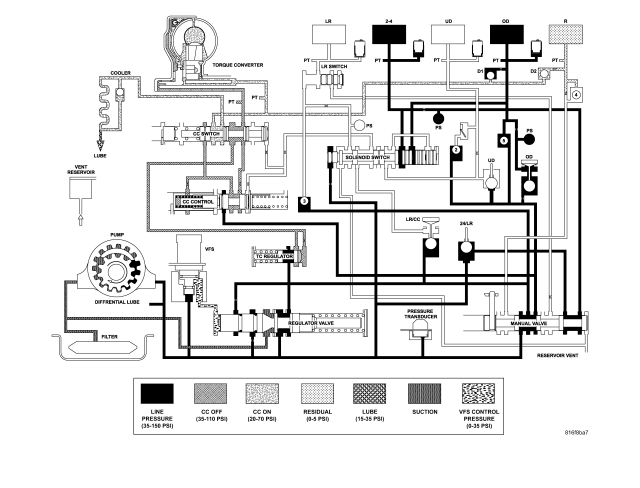

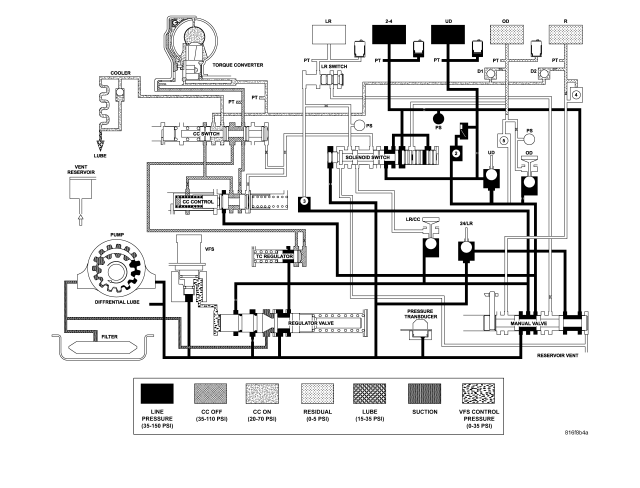

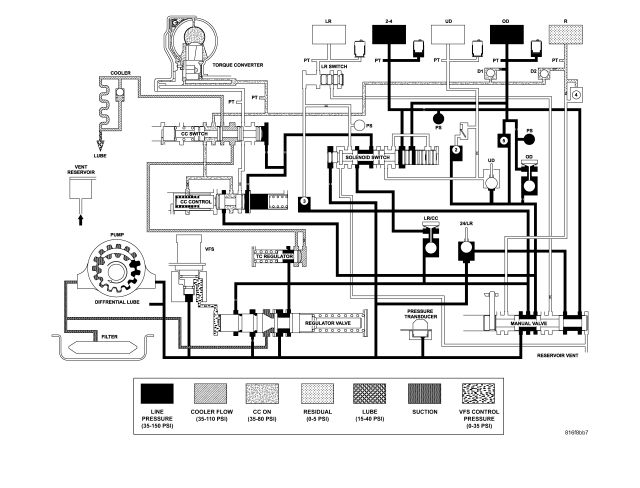

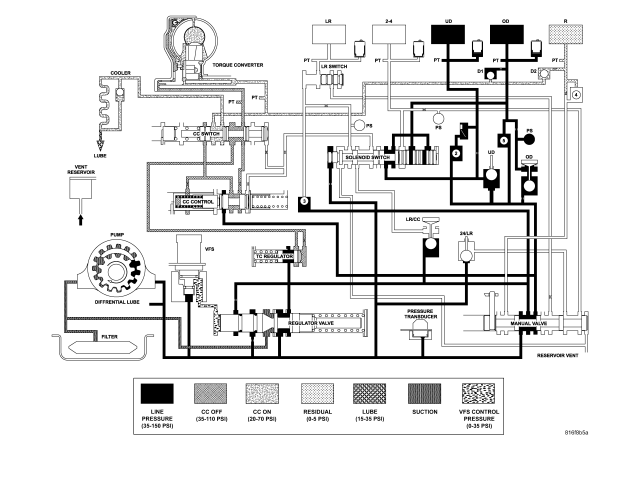

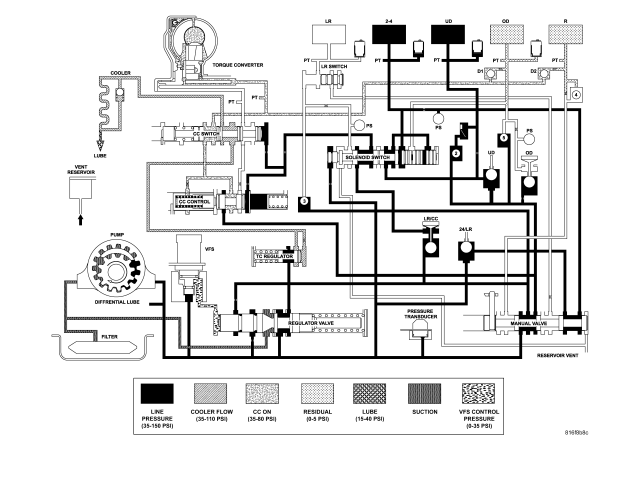

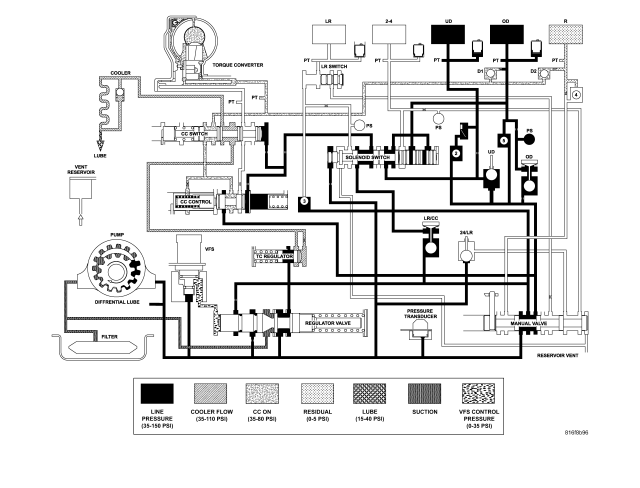

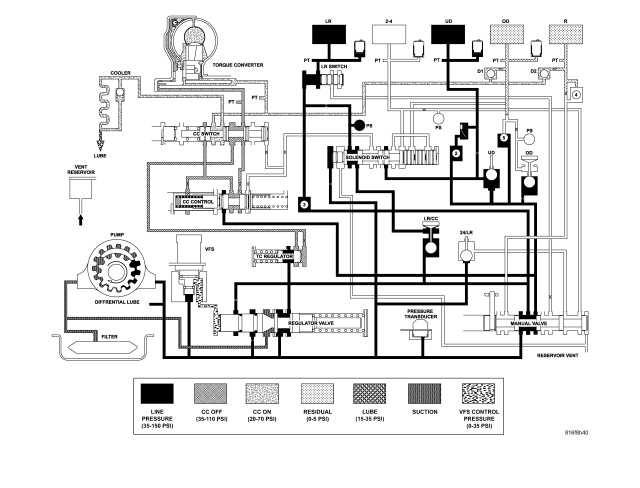

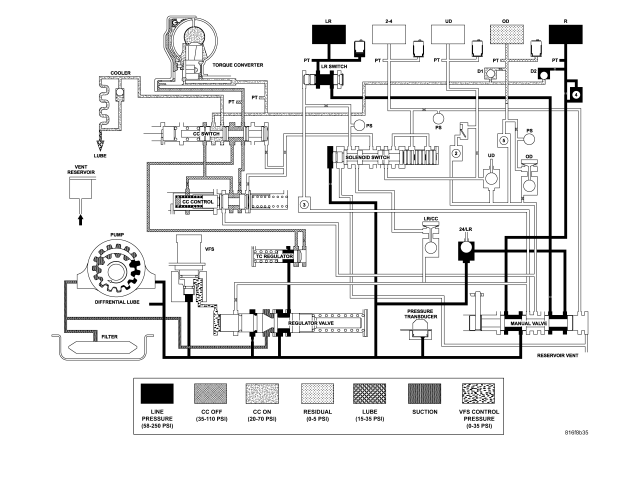

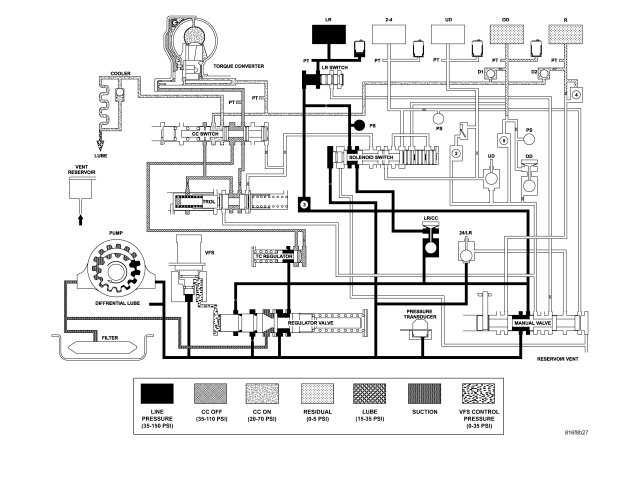

42RLE - WITH VARIABLE LINE PRESSURE
