2007 Liberty KJ Factory Service Manual 21 - TRANSMISSION AND TRANSFER CASE

P0882-TCM POWER INPUT LOW





For a complete wiring diagram Refer to Section 8W

Theory of Operation


The transmission control relay is used to supply power to the solenoids and pressure switches when the transmission is in normal operating mode. The relay output is fed back to the TCM through pins 16, 17, and 36. It is referred to as "Transmission Control Relay Output". This circuit does not supply power to the TCM, it is only a sense circuit. When the relay is off, no power is supplied to the solenoids and pressure switches, and the transmission is in "limp-in" or "default" mode. Note: Inadequate Transmission Control Relay Output voltage can also cause DTCs P0846, P0869, P0871, P0876 or P0988 to set. This does not indicate an internal transmission or solenoid/TRS problem. Repairing the P0888 fault should also eliminate the related DTCs.



Possible Causes

(A104) FUSED B+ CIRCUIT OPEN

(T16) TRANSMISSION CONTROL RELAY OUTPUT CIRCUIT OPEN

(T16) TRANSMISSION CONTROL RELAY OUTPUT CIRCUIT SHORT TO GROUND

(T515) TRANSMISSION CONTROL RELAY CONTROL CIRCUIT OPEN

(T515) TRANSMISSION CONTROL RELAY CONTROL CIRCUIT SHORT TO GROUND

(Z915) TRANSMISSION CONTROL RELAY GROUND CIRCUIT OPEN

TRANSMISSION CONTROL RELAY STUCK OPEN

TRANSMISSION CONTROL MODULE



Always perform the 45RFE/545RFE Pre-Diagnostic Troubleshooting Procedure before proceeding. (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)



Diagnostic Test

1. CHECK TO SEE IF DTC P0882 IS CURRENT

With the scan tool, Check the STARTS SINCE SET counter for P0882.

NOTE: This counter only applies to the last DTC set.



Is the STARTS SINCE SET counter equal to 0?

Yes


No

2. CHECK THE (A104) FUSED B+ CIRCUIT FOR AN OPEN



Turn the ignition off to the lock position.
Remove the Transmission Control Relay.
Ignition on, engine not running.
Using a 12-volt test light connected to ground, check the (A104) Fused B(+) circuit in the Transmission Control Relay connector.

NOTE: The test light must illuminate brightly. Compare the brightness to that of a direct connection to the battery.



Does the test light illuminate brightly?

Yes


No

3. CHECK THE (Z915) TRANSMISSION CONTROL RELAY GROUND CIRCUIT FOR AN OPEN



Turn the ignition off to the lock position.
Using a 12-volt test light connected to 12-volts, check the (Z915) Transmission Control Relay Ground circuit in the Transmission Control Relay connector.

Does the test light illuminate brightly?

Yes


No

4. CHECK THE TRANSMISSION CONTROL RELAY

Install a substitute relay in place of the Transmission Control Relay.

Start the vehicle.
With the scan tool, check transmission DTCs.

Did the DTC P0882 reset?

Yes


No

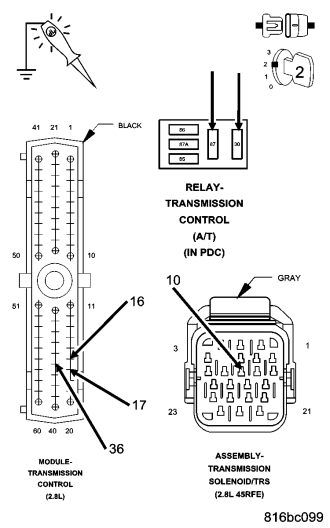

5. CHECK THE (T16) TRANSMISSION CONTROL RELAY OUTPUT CIRCUIT FOR AN OPEN



Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Disconnect the Transmission Solenoid/TRS Assembly harness connector.
Connect a jumper wire between the (A104) Fused B(+) circuit and the Transmission Control Relay Output circuit in the Transmission Control Relay connector.
Ignition on, engine not running.
Using a 12-volt test light connected to ground, check all four (T16) Transmission Control Relay Output circuits in the TCM harness connector and Transmission Solenoid/TRS Assembly harness connector.

Does the test light illuminate brightly on all four (T16) Transmission Control Relay Output circuits?

Yes


No

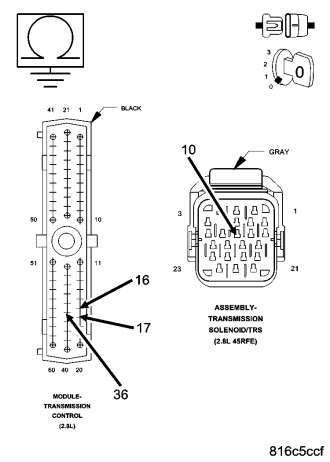

6. CHECK THE (T16) TRANSMISSION RELAY OUTPUT CIRCUIT FOR A SHORT TO GROUND



Turn the ignition off to the lock position.
Measure the resistance between ground and the (T16) Transmission Control Relay Output circuit.

Is the resistance below 5.0 ohms?

Yes


No

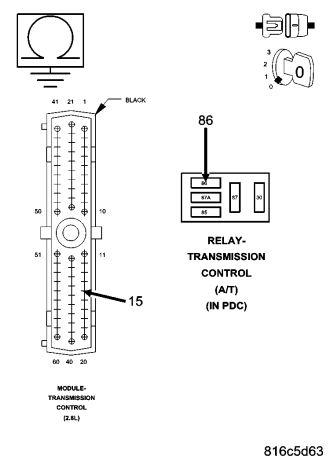

7. CHECK THE (T515) TRANSMISSION CONTROL RELAY CONTROL CIRCUIT FOR A SHORT TO GROUND



Measure the resistance between ground and the (T515) Transmission Control Relay Control circuit.

Is the resistance below 5.0 ohms?

Yes


No

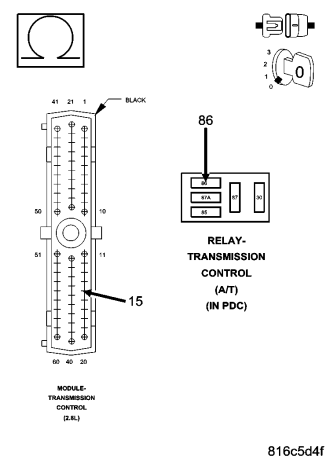

8. CHECK THE (T515) TRANSMISSION CONTROL RELAY CONTROL CIRCUIT FOR AN OPEN



Measure the resistance of the (T515) Transmission Control Relay Control circuit between the Transmission Control Relay connector and the appropriate terminal of the TCM harness connector..

Is the resistance above 5.0 ohms?

Yes


No

9. CHECK WIRING AND CONNECTORS

The conditions necessary to set this DTC are not present at this time.
Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.
Wiggle the wires while checking for shorted and open circuits.
With the scan tool, check the DTC EVENT DATA to help identify the conditions in which the DTC was set.

Where there any problems found?

Yes


No
