2007 Liberty KJ Factory Service Manual 21 - TRANSMISSION AND TRANSFER CASE

P1776-SOLENOID SWITCH VALVE LATCHED IN LR POSITION





For a complete wiring diagram Refer to Section 8W.

Theory of Operation


The Solenoid Switch Valve (SSV) controls the direction of the transmission fluid when the L/R Solenoid is energized. The SSV will be in the downshifted position in 1st gear, thus directing the fluid to the L/R clutch circuit. In 2nd through 5th gears, it will be in the upshifted position and directing the fluid into the torque converter clutch (TCC).

When in 2nd, 2nd Prime, 3rd, 4th, or 5th gear, the Torque Converter Clutch (TCC) can be engaged when certain conditions are met. The TCC piston is electronically modulated by increasing the duty cycle of the L/R solenoid until the torque converter slip difference (difference between engine and transmission input speed) is within 60 RPM. Then the L/R solenoid is fully energized (FEMCC / 100% duty cycle). Torque converter slip is monitored in FEMCC to ensure adequate clutch capacity.



Possible Causes

RELATED DTC P0841 PRESENT

LR PRESSURE SWITCH SENSE CIRCUIT OPEN

LR PRESSURE SWITCH SENSE CIRCUIT SHORT TO GROUND

SOLENOID SWITCH VALVE

TRANSMISSION CONTROL MODULE

INTERMITTENT WIRING AND CONNECTORS



Always perform the 45RFE/545RFE Pre-Diagnostic Troubleshooting Procedure before proceeding. (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)



Diagnostic Test

1. DETERMINING IF RELATED DTC'S ARE PRESENT

With the scan tool, check for other transmission DTC's

Is the DTC P0841 present also?

Yes


No

2. CHECK TO SEE IF DTC P1776 IS CURRENT

With the scan tool, Check the STARTS SINCE SET counter.

NOTE: NOTE: This counter only applies to the last DTC set.



Is the STARTS SINCE SET counter 2 or less?

Yes


No

3. TCM AND WIRING

Turn the ignition off to the lock position.
Remove the Starter Relay.

CAUTION: Removal of the Starter Relay will prevent the vehicle from being started in gear.


WARNING: The Starter Relay must be removed from the PDC. Failure to do so can result in personal injury or death.


NOTE: Failure to remove the Starter Relay can cause a Transmission - No Response condition.


Install the Transmission Simulator, Miller tool #8333.
Ignition on, engine not running.
With the Transmission Simulator, turn the Pressure Switch selector switch to the LR position.
With the scan tool, monitor the LR Pressure Switch state while pressing the Pressure Switch Test button on the Transmission Simulator.

Did the state of the LR Pressure Switch change while pressing the Pressure Switch Test button?

Yes


No

4. SOLENOID SWITCH VALVE

Remove the Valve Body per the Service Information.
Inspect the Solenoid Switch Valve and plugs for sticking in the bore and/or wear.

Were there any problems found?

Yes


No

5. LR PRESSURE SWITCH SENSE CIRCUIT OPEN



Turn the ignition off to the lock position.
Disconnect the Transmission Simulator, Miller tool #8333.
Disconnect the TCM harness connector.

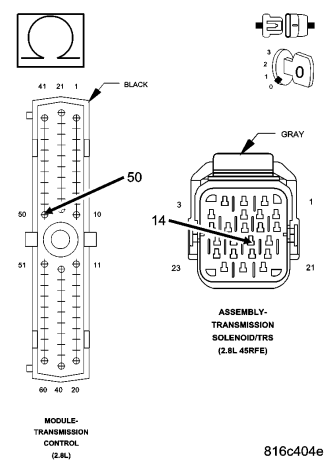

Measure the resistance of the (T50) LR Pressure Switch Sense circuit between the appropriate terminal of the TCM harness connector to the Solenoid/TRS Assembly harness connector.

Is the resistance above 5.0 ohms?

Yes


No

6. (T50) LR PRESSURE SWITCH SENSE CIRCUIT SHORT TO GROUND

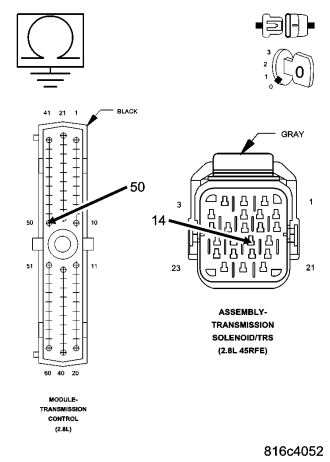

Measure the resistance between ground and the (T50) LR Pressure Switch Sense circuit.

Is the resistance below 5.0 ohms?

Yes


No

7. INTERMITTENT WIRING AND CONNECTORS

The conditions necessary to set this DTC are not present at this time.
Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.
Wiggle the wires while checking for shorted and open circuits.
This DTC can also be set by the Solenoid Switch Valve intermittently sticking in it's bore under extreme temperature conditions, or by a worn Solenoid Switch Valve or plugs.
With the scan tool, check the DTC EVENT DATA to help identify the conditions in which the DTC was set.

Where there any problems found?

Yes


No
