2007 Liberty KJ Factory Service Manual 23 - BODY

GAP AND FLUSH

SPECIFICATIONS

GAP & FLUSH DIMENSIONS INDEX

DESCRIPTION



FIGURE

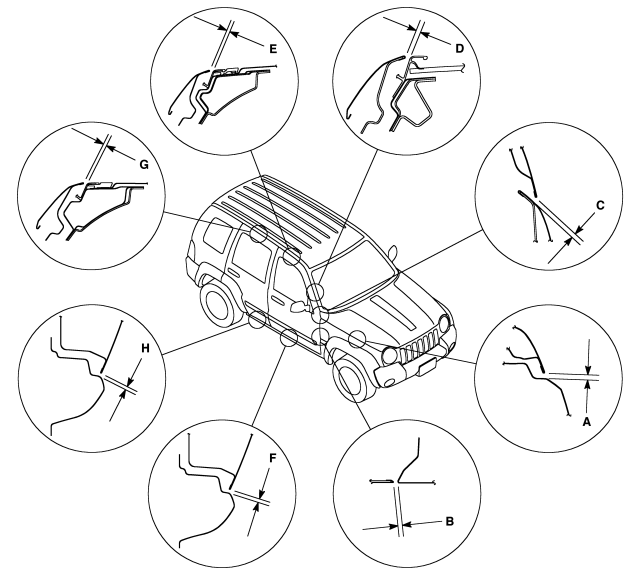

FRONT QUADRANT
  		 ( GAP & FLUSH/FRONT QUADRANT)

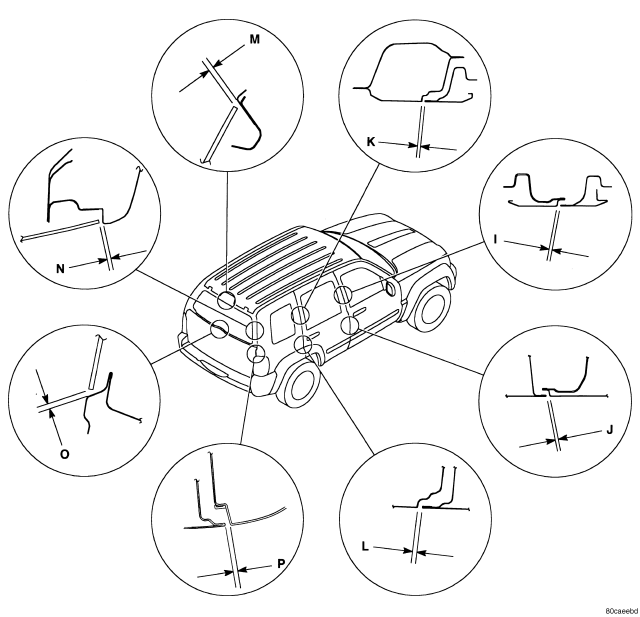

REAR QUADRANT
  		 ( GAP & FLUSH/REAR QUADRANT)






GAP & FLUSH/FRONT QUADRANT

NOTE: All measurements are in mm.

  • O/F = Over Flush
  • U/F = Under Flush


DIMENSION
  		 GAP
  		 FLUSH
  		 DIMENSION
  		 GAP
  		 FLUSH

A
  		 6.0 +/- 2.0
  		 O/F 12.0 +/- 2.0
  		 E
  		 5.0 +/- 1.5
  		 O/F 3.0 +/- 1.5

B
  		 5.0 +/- 1.0
  		 O/F 0.5 +/- 1.5
  		 F
  		 6.0 +/- 2.0
  		 —

C
  		 6.0 +1.5/- 2.0
  		 —
  		 G
  		 5.0 +/- 1.5
  		 O/F 3.0 +/- 1.5

D
  		 5.0 +1.0/- 2.0
  		 O/F 5.0 +/- 1.5
  		 H
  		 6.0 +/- 2.0
  		 —






GAP & FLUSH/REAR QUADRANT

NOTE: All measurements are in mm.

  • O/F = Over Flush
  • U/F = Under Flush


DIMENSION
  		 GAP
  		 FLUSH
  		 DIMENSION
  		 GAP
  		 FLUSH

I
  		 5.0 +/- 1.0
  		 0.0 +/- 1.5
  		 M
  		 6.0 +/- 1.5
  		 U/F 4.7 +2.5/-1.0

J
  		 5.0 +/- 1.0
  		 0.0 +/- 1.5
  		 N
  		 6.0 +/- 1.5
  		 U/F 4.0 +2.5/-1.0

K
  		 5.0 +/- 1.0
  		 0.0 +/- 1.5
  		 O
  		 6.0 +/- 1.5
  		 0.0 - 2.0 O/F

L
  		 5.0 +/- 1.0
  		 0.0 +/- 1.5
  		 P
  		 5.0 +/- 1.0
  		 U/F 0.5 +/- 1.0
