INSTALLATION

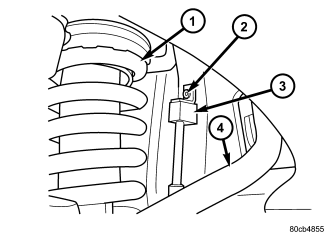

FRONT BRAKE CALIPER HOSE
1. Install the hose (3).
2. Install the mounting bolt (2) for the top of the brake hose (3) at the vehicle .
3. Install the brake hose banjo bolt at the caliper.
4. Lower the vehicle and remove the support.
5. Install the brake line to the brake hose inside the engine compartment by the front control arm bolt (4).
6. Remove the prop rod from the brake pedal.
7. Bleed the brake system (Refer to 5 - BRAKES - STANDARD PROCEDURE).
REAR BRAKE HOSE
1. Install the hose.
2. Install the mounting bolt for the brake hose at the axle .
3. Install the two brake lines at the bottom of the hose located at the axle .
4. Install the vent tube .
5. Install the brake hose mounting bolt at the top of the hose located at the body .
6. Install the brake line to the hose at the body .
7. Lower the vehicle and remove the support .
8. Remove the prop rod.
9. Bleed the brake system (Refer to 5 - BRAKES - STANDARD PROCEDURE).
