REMOVAL
FRONT BRAKE CALIPER HOSE
1. Install prop rod on the brake pedal to keep pressure on the brake system.

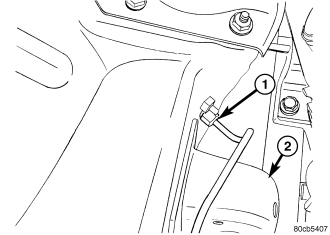

2. Remove the brake line (1) from the brake hose inside the engine compartment by the front control arm bolt (2) .
3. Raise and support vehicle.
4. Remove the brake hose banjo bolt at the caliper.

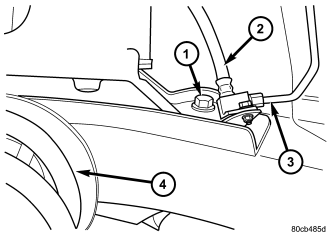

5. Remove the mounting bolt for the top of the brake hose (1) at the vehicle .
6. Remove the hose.
REAR BRAKE HOSE
1. Install prop rod on the brake pedal to keep pressure on the brake system.
2. Raise and support the vehicle.
3. Remove the brake line (3) from the hose (2) at the body .
4. Remove the brake hose mounting bolt (1) at the top of the hose located at the body .
5. Remove the vent tube (3) .

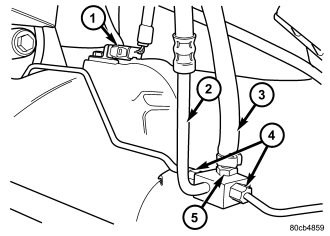

6. Remove the two brake lines (4) at the bottom of the hose located at the axle .
7. Remove the mounting bolt (5) for the brake hose (2) at the axle .
8. Remove the hose (2).
