SENSOR-DYNAMICS
DESCRIPTION
The Yaw Rate and Lateral Acceleration Sensors are housed into one unit known as the Dynamics Sensor (3). The sensor is used to measure side-to-side (Lateral) motion and vehicle rotational sensing (how fast the vehicle is turning - Yaw).
Yaw and Lateral Acceleration Sensors cannot be serviced separately. The entire Dynamics Sensor (3) must be replaced when necessary.
REMOVAL
1. Remove the center console (Refer to 23 - BODY/INTERIOR/FLOOR CONSOLE - REMOVAL).

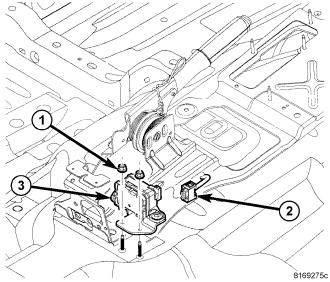

2. Disconnect electrical connector (2) from the dynamics sensor (3).
3. Remove the two nuts (1) securing the sensor to the floor.
4. Remove the sensor (3).
INSTALLATION
1. Install the dynamics sensor (3) to the vehicle.
2. Install the electrical connector (2) making sure that the connector is fully seated into the sensor (3)
3. Install the two retaining nuts (1) and tighten to 9 N·m (80 in. lbs.).
4. Install the floor console.
