CABLES
REMOVAL
1. Lock out the parking brake cables (Refer to 5 - BRAKES/PARKING BRAKE - ADJUSTMENTS) .
2. Remove the rear seat (Refer to 23 - BODY/SEATS/SEAT - REMOVAL).
3. Pull the carpet forward far enough in the rear to gain access to the two parking brake cables thru the floor .

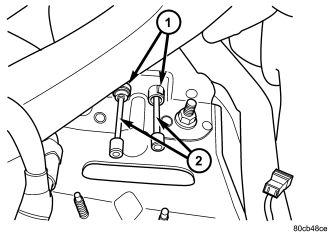

4. Disconnect the two cables (1) from the front mount .
5. Push the cables (2) thru the floor with the grommets.

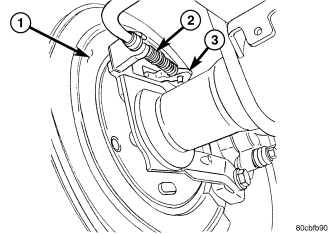

6. Remove the cable from the axle bracket with a proper sized box end wrench over the tangs (1).

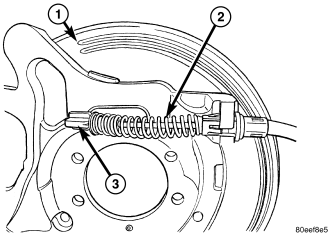

7. Remove the brake cable (2) from the brake lever (3).
INSTALLATION
1. Install the cables (2) into the axle bracket .
2. Reconnect the cable to the park brake lever (3).
3. Push the cables (2) thru the floor and seat the tangs (1) .

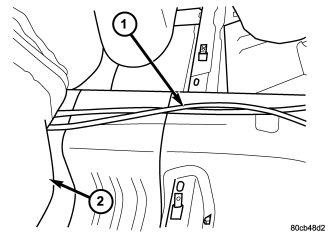

4. Reconnect the two cables (1) to the front mount.
5. Lay the carpet (2) back down in the rear .
6. Install the rear seat (Refer to 23 - BODY/SEATS/SEAT - INSTALLATION).
7. Remove the lock out device (2) on the lever (1) .
8. Adjust the park brake shoes (Refer to 5 - BRAKES/PARKING BRAKE/SHOES - ADJUSTMENTS).
9. Test the parking brake.
