REMOVAL

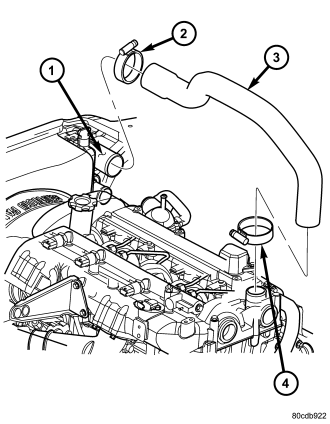

CHARGE AIR COOLER INLET HOSE
1. Open and support hood of vehicle.
2. Loosen hose clamps at both ends of charge air cooler (CAC) inlet hose .
3. Remove CAC inlet hose (3) from turbocharger and CAC.

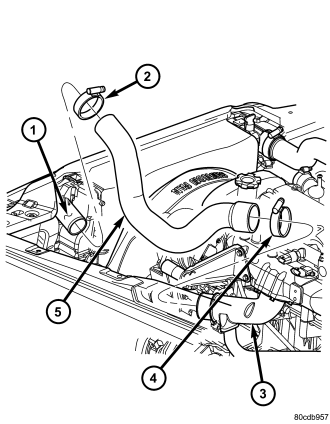

CHARGE AIR COOLER OUTLET HOSE
1. Raise and support hood on vehicle.
2. Loosen hose clamps at both ends of charge air cooler (CAC) outlet hose (5) .
3. Remove hose (5) from CAC and intake manifold inlet .
