This section provides illustrations identifying connector, ground, and splice locations in the vehicle. Connector, ground, and splice indexes are provided. Use the wiring diagrams in each section
for connector, ground, and splice identification. Refer to the appropriate index for the proper figure number. For items that are not shown in this section N/S is placed in the Fig. column.
CONNECTORS
CONNECTOR NAME/NUMBER
|
COLOR
|
LOCATION
|
FIG.
|
Actuator-Blend Door
|
WT
|
Behind Right Side of Instrument Panel
|
N/S
|

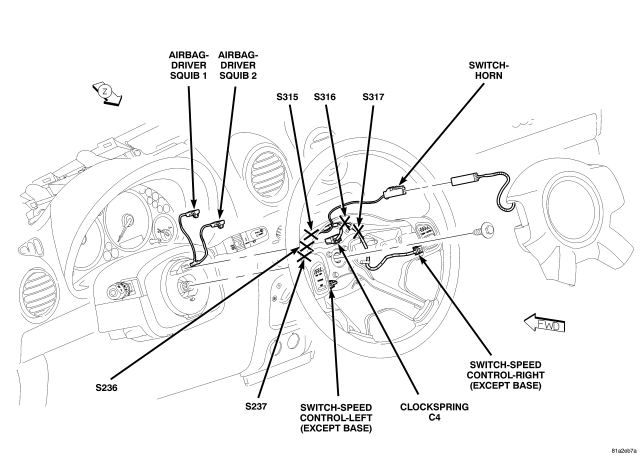

Airbag-Driver Squib 1
|
GY
|
In Steering Wheel
|
STEERING WHEEL
|
Airbag-Driver Squib 2
|
BK
|
In Steering Wheel
|
STEERING WHEEL
|
Airbag-Passenger Squib 1
|
YL
|
Passenger Side Instrument Panel
|
N/S
|
Airbag-Passenger Squib 2
|
YL
|
Passenger Side Instrument Panel
|
N/S
|

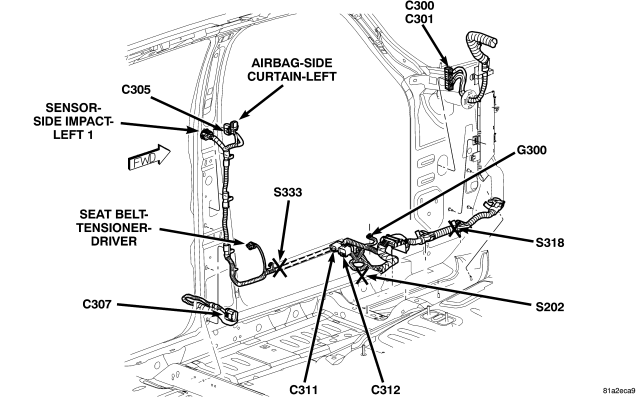

Airbag-Side Curtain-Left
|
YL
|
Left Mid B-Pillar
|
LEFT FRONT BODY LHD, LEFT FRONT BODY RHD
|

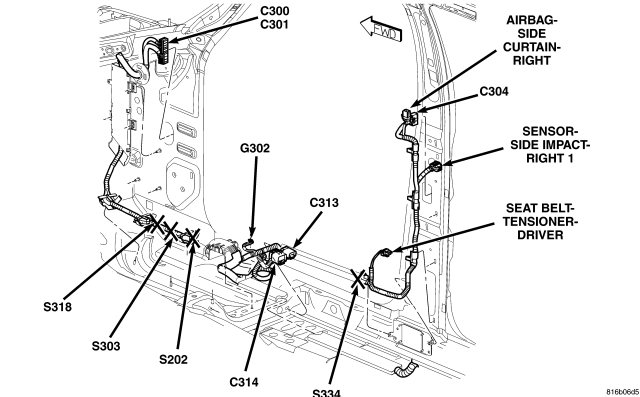

Airbag-Side Curtain-Right
|
YL
|
Right Mid B-Pillar
|
RIGHT FRONT BODY LHD, RIGHT FRONT BODY RHD
|

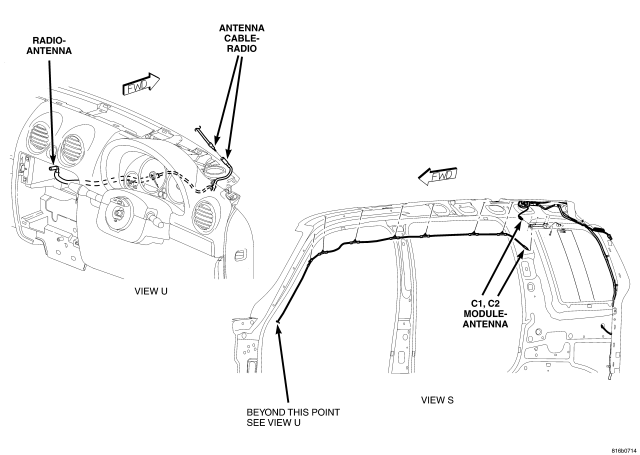

Antenna Cable-Radio (Export)
|
|
Right Side Instrument Panel
|
RADIO ANTENNA (EXPORT)
|
Antenna-Radio (Except Export)
|
|
Center Instrument Panel
|
RIGHT INSTRUMENT PANEL (EXCEPT EXPORT)
|
Antenna-Radio (Export)
|
|
Center Instrument Panel
|
RADIO ANTENNA (EXPORT)
|

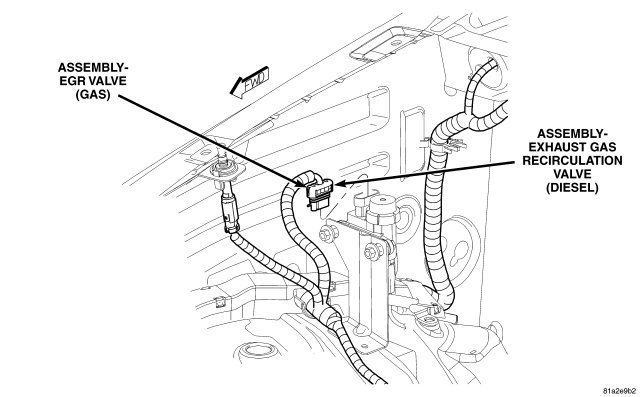

Assembly-EGR Valve
|
|
Right Rear Side of Engine Compartment
|
ENGINE COMPARTMENT
|
Assembly-Exhaust Gas Recirculation Valve (Dirsel)
|
|
Right Rear Side of Engine Compartment
|
ENGINE COMPARTMENT
|
Assembly-Heated Seat-Left
|
|
At Left Seat
|
N/S
|
Assembly-Heated Seat-Right
|
|
At Right Seat
|
N/S
|

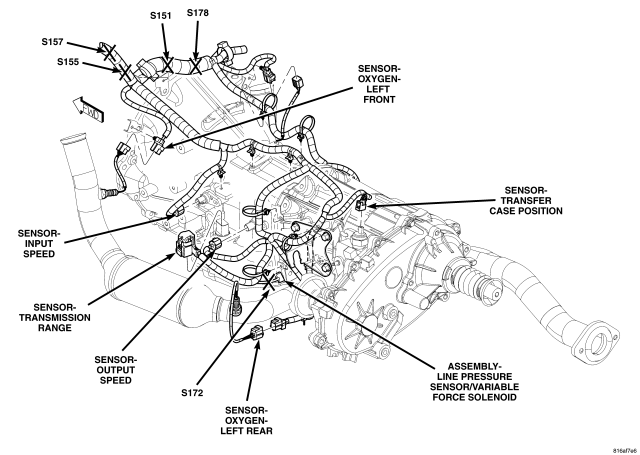

Assembly-Line Pressure Sensor/Variable Force Solenoid
|
|
Left Side Transmission
|
LEFT SIDE TRANSMISSION 3.7L
|
Assembly-Natural Vacuum Leak Detection
|
BK
|
Near Fuel Tank
|
FUEL TANK
|
Assembly-Power Seat Motors-Left
|
BK
|
At Left Seat
|
N/S
|
Assembly-Power Seat Motors-Right
|
BK
|
At Right Seat
|
N/S
|

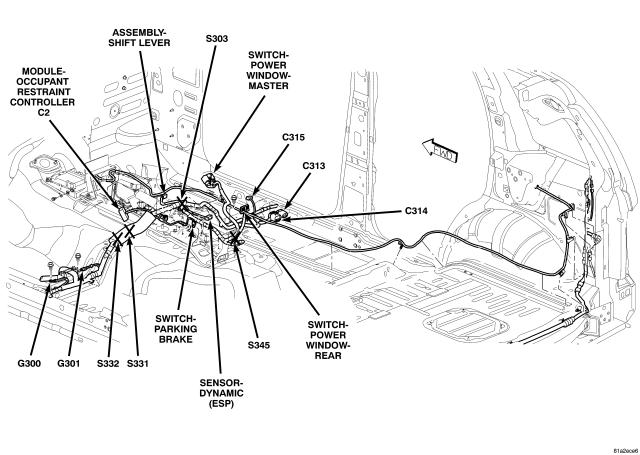

Assembly-Shift Lever
|
WT
|
Center Console
|
RIGHT FRONT BODY LHD
|

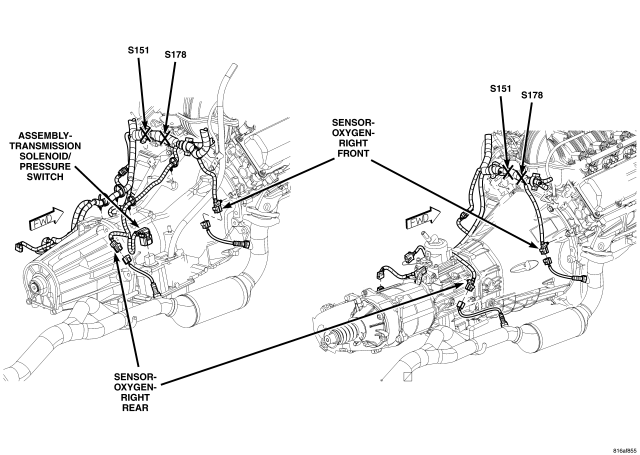

Assembly-Transmission Solenoid/Pressure Switch (42RLE)
|
|
Right Side of Transmission
|
RIGHT SIDE TRANSMISSION 3.7L
|

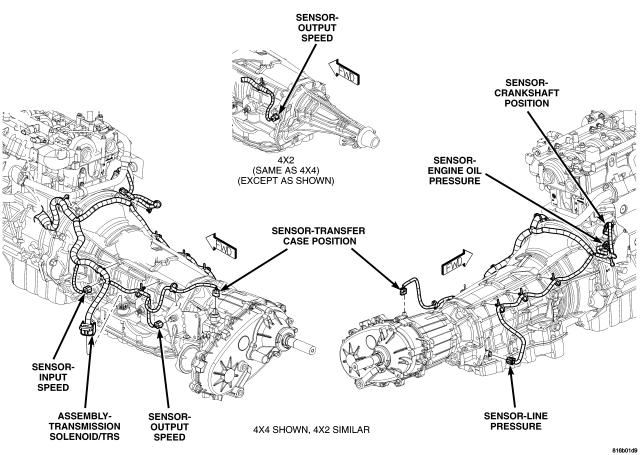

Assembly-Transmission Solenoid/Trs (2,8L 45RFE)
|
GY
|
Left Side of Transmission
|
TRANSMISSION
|

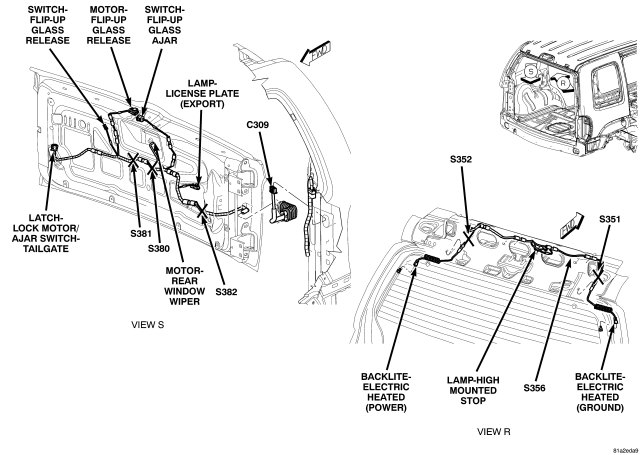

Backlite-Electric Heated (Ground)
|
BK
|
At Rear Window
|
TAILGATE
|
Backlite-Electric Heated (Power)
|
BK
|
At Rear Window
|
TAILGATE
|

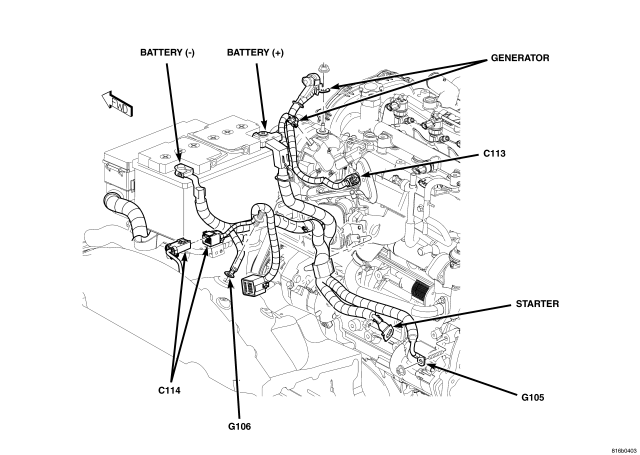

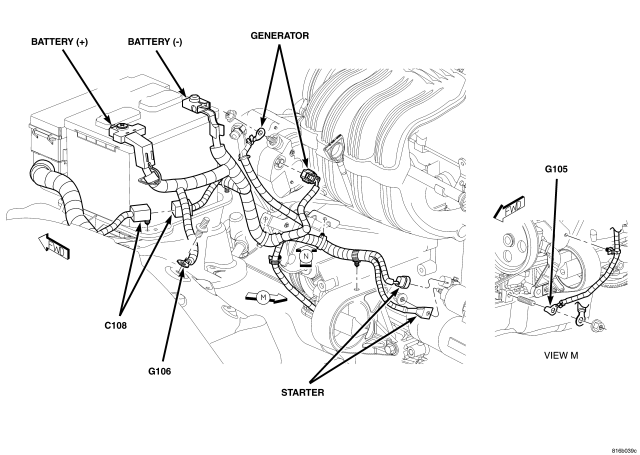

Battery (-)
|
|
Left Front Engine Compartment
|
LEFT FRONT ENGINE COMPARTMENT, LEFT ENGINE COMPARTMENT (GAS), LEFT FRONT ENGINE COMPARTMENT (DIESEL)
|
Battery (+)
|
|
Left Front Engine Compartment
|
LEFT FRONT ENGINE COMPARTMENT, LEFT ENGINE COMPARTMENT (GAS), LEFT FRONT ENGINE COMPARTMENT (DIESEL)
|

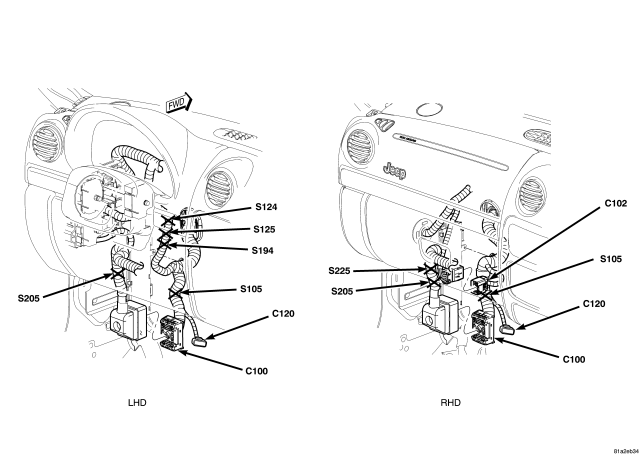

C100
|
|
Left Kick Panel
|
ENGINE TO INSTRUMENT PANEL, INSTRUMENT PANEL LHD
|
C102 (RHD)
|
|
Left Kick Panel
|
ENGINE TO INSTRUMENT PANEL, LEFT FRONT BODY RHD
|

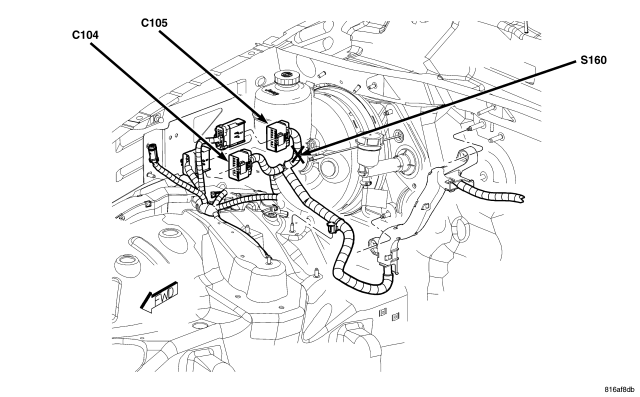

C104
|
|
Right Rear Side of Engine Compartment
|
RIGHT SIDE ENGINE COMPARTMENT 3.7L, RIGHT SIDE ENGINE COMPARTMENT 3.7L RHD, DIESEL ENGINE COMPARTMENT
|
C105
|
|
Right Rear Side of Engine Compartment
|
RIGHT SIDE ENGINE COMPARTMENT 3.7L, RIGHT SIDE ENGINE COMPARTMENT 3.7L RHD, DIESEL ENGINE COMPARTMENT
|

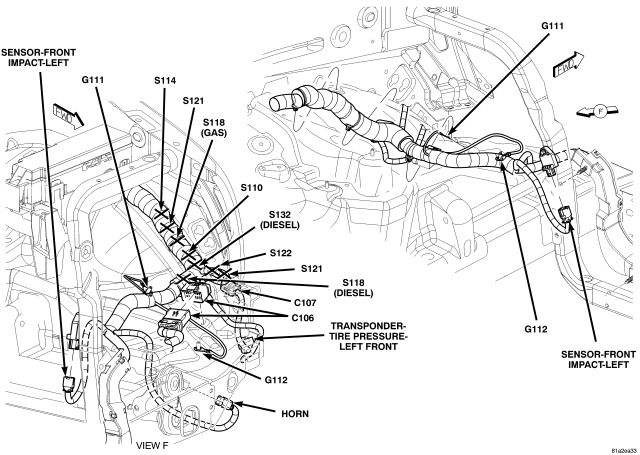

C106
|
BK
|
Left Front Side of Engine Compartment
|
FRONT ENGINE COMPARTMENT
|
C107
|
|
Left Front Side of Engine Compartment
|
FRONT ENGINE COMPARTMENT
|
C108 (Gas)
|
LT GN
|
Left Front Side of Engine
|
LEFT FRONT ENGINE COMPARTMENT, LEFT SIDE ENGINE COMPARTMENT, REAR ENGINE COMPARTMENT
|
C109
|
|
Right Front Engine Compartment
|
N/S
|
C111 (Diesel)
|
LG
|
Right Rear Side of Engine Compartment
|
DIESEL ENGINE COMPARTMENT
|
C112 (Gas)
|
BK
|
Right Side of Engine Compartment
|
RIGHT SIDE ENGINE COMPARTMENT 3.7L, LEFT SIDE ENGINE COMPARTMENT 3.7L, REAR ENGINE COMPARTMENT
|
C113 (Diesel)
|
|
Left Rear Side of Engine Compartment
|
LEFT FRONT ENGINE COMPARTMENT (DIESEL)
|
C114
|
|
Left Front Engine Compartment
|
LEFT FRONT ENGINE COMPARTMENT (DIESEL), LEFT SIDE ENGINE COMPARTMENT
|
C117 (Diesel)-(Injector Side)
|
|
Right Rear Engine Compartment
|
DIESEL ENGINE COMPARTMENT
|
C120
|
|
Left Kick Panel
|
ENGINE TO INSTRUMENT PANEL
|
C201
|
|
Behind Center of Instrument Panel
|
INSTRUMENT PANEL LHD, INSTRUMENT PANEL RHD
|

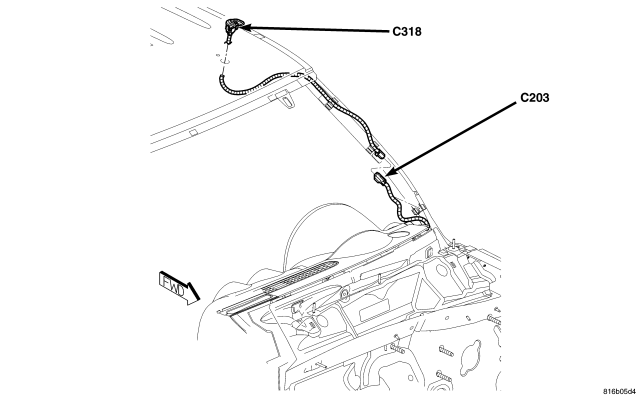

C203
|
|
Left A-Pillar
|
LEFT A POST
|
C300 (LHD)
|
|
Left A-Pillar
|
LEFT FRONT BODY LHD, FRONT DOORS
|
C300 (RHD)
|
|
Right A-Pillar
|
RIGHT FRONT BODY RHD, FRONT DOORS
|
C301 (LHD)
|
OR
|
Left A-Pillar
|
LEFT FRONT BODY LHD, FRONT DOORS
|
C301 (RHD)
|
OR
|
Right A-Pillar
|
RIGHT FRONT BODY RHD, FRONT DOORS
|
C302 (LHD)
|
|
Right A-Pillar
|
RIGHT FRONT BODY LHD, FRONT DOORS
|
C302 (RHD)
|
OR
|
Left A-Pillar
|
LEFT FRONT BODY RHD, FRONT DOORS
|
C303 (LHD)
|
OR
|
Right A-Pillar
|
RIGHT FRONT BODY LHD, FRONT DOORS
|
C303 (RHD)
|
OR
|
Left A-Pillar
|
LEFT FRONT BODY RHD, FRONT DOORS
|
C304
|
BL
|
Right Mid B-Pillar
|
RIGHT FRONT BODY LHD, RIGHT FRONT BODY RHD, REAR DOORS
|
C305
|
BL
|
Left Mid B-Pillar
|
LEFT FRONT BODY LHD, LEFT FRONT BODY RHD, REAR DOORS
|

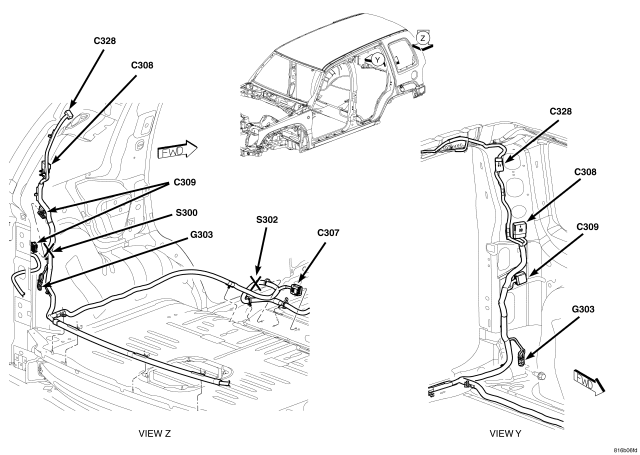

C307
|
LG
|
Left Lower B-Pillar
|
LEFT FRONT BODY LHD, LEFT FRONT BODY RHD, LEFT REAR BODY, FUEL TANK
|
C308
|
LT GY
|
Left Rear Quarter Panel
|
LEFT REAR BODY
|
C309
|
|
Left Rear Quarter Panel
|
LEFT REAR BODY, TAILGATE
|

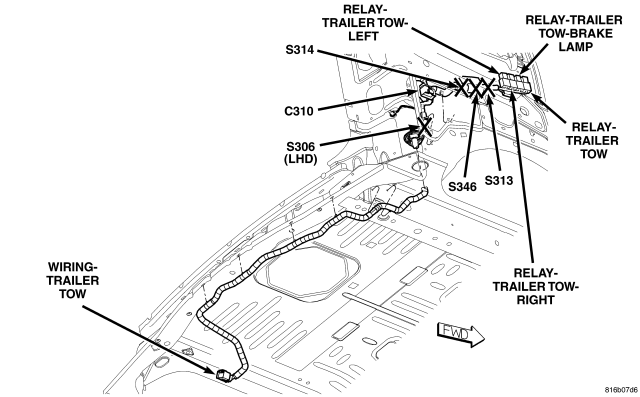

C310
|
LT GY
|
Right Rear Quarter Panel
|
REAR BODY, TRAILER TOW CONNECTORS
|
C311
|
LT GY
|
Left Front Seat
|
LEFT FRONT BODY LHD, LEFT FRONT BODY RHD
|
C312
|
LT GY
|
Left Front Seat
|
LEFT FRONT BODY LHD, LEFT FRONT BODY RHD
|
C313
|
BK
|
Right Front Seat
|
RIGHT FRONT BODY LHD, RIGHT FRONT BODY RHD, RIGHT FRONT BODY RHD
|
C314
|
|
Right Front Seat
|
RIGHT FRONT BODY LHD, RIGHT FRONT BODY RHD, RIGHT FRONT BODY RHD
|
C315 (Midline/Highline) (LHD)
|
|
Right Front Seat
|
RIGHT FRONT BODY LHD, RIGHT FRONT BODY LHD
|
C315 (Midline/Highline) (RHD)
|
|
Left Front Seat
|
LEFT FRONT BODY RHD
|

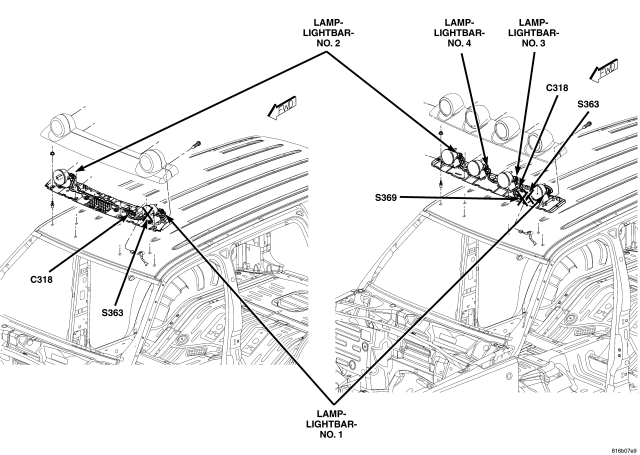

C318
|
|
Front of Roof in Light Bar Harness
|
LEFT A POST, ROOF LIGHT BAR
|
C328 (Overhead Side)
|
|
Left Rear Headliner
|
LEFT REAR BODY
|
C330
|
|
Right Rear Body
|
REAR BODY
|

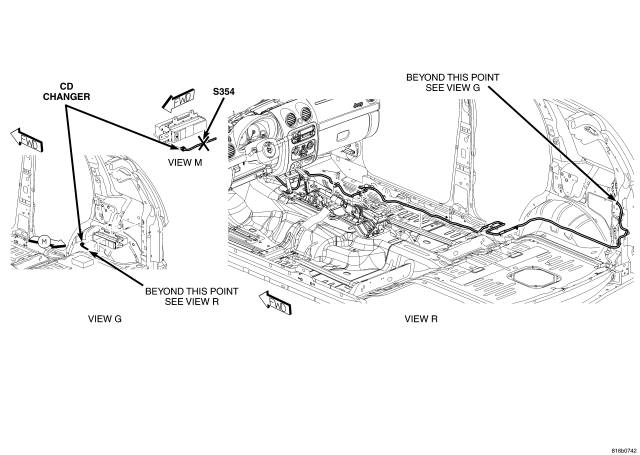

Changer CD
|
GN
|
Right Rear Body
|
N/S
|
Choke-Radio
|
GY
|
Center of Instrument Panel
|
N/S
|
Clockspring C1
|
WT
|
Behind Steering Wheel
|
N/S
|
Clockspring C2
|
YL
|
Behind Steering Wheel
|
N/S
|
Clockspring C3
|
|
At Steering Wheel
|
N/S
|
Clockspring C4 (Except Base)
|
|
Steering Wheel Side of Clockspring
|
STEERING WHEEL
|
Cluster
|
BK
|
Rear of Cluster
|
N/S
|

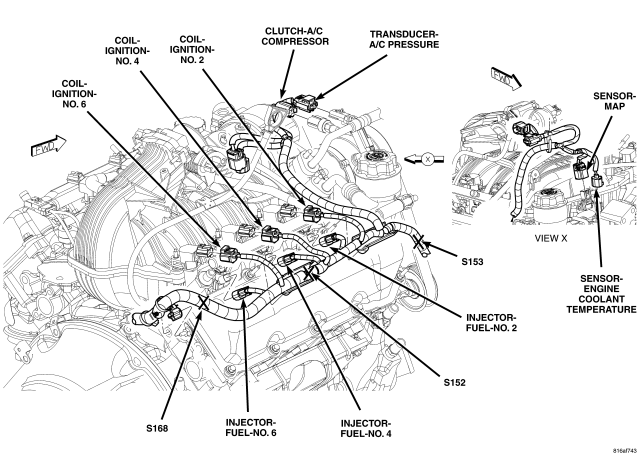

Clutch-A/C Compressor
|
BK
|
At A/C Compressor
|
RIGHT SIDE ENGINE 3.7L, LEFT SIDE DIESEL ENGINE
|
Coil-Ignition-No. 1
|
BK
|
Left Side of Engine Near Fuel Injector No.1
|
LEFT SIDE ENGINE 3.7L
|
Coil-Ignition-No. 2
|
BK
|
Right Side of Engine Near Fuel Injector No.2
|
RIGHT SIDE ENGINE 3.7L
|
Coil-Ignition-No. 3
|
BK
|
Left Side of Engine Near Fuel Injector No.3
|
LEFT SIDE ENGINE 3.7L
|
Coil-Ignition-No. 4
|
BK
|
Right Side of Engine Near Fuel Injector No.4
|
RIGHT SIDE ENGINE 3.7L
|
Coil-Ignition-No. 5
|
BK
|
Left Side of Engine Near Fuel Injector No.5
|
LEFT SIDE ENGINE 3.7L
|
Coil-Ignition-No. 6
|
BK
|
Right Side of Engine Near Fuel Injector No.6
|
RIGHT SIDE ENGINE 3.7L
|
Control-A/C Heater C1
|
BK
|
Center of Dash, Behind A/C-Heater Controls
|
N/S
|
Control-A/C Heater C2
|
|
Center of Dash, Behind A/C-Heater Controls
|
N/S
|
Data Link Connector
|
BK
|
Under Center of Instrument Panel
|
N/S
|
Generator
|
|
Left Front Side of Engine
|
LEFT SIDE DIESEL ENGINE, LEFT FRONT ENGINE COMPARTMENT, LEFT FRONT ENGINE COMPARTMENT (DIESEL)
|
Glow Plug No. 1
|
|
Top of Engine
|
N/S
|
Glow Plug No. 2
|
|
Top of Engine
|
N/S
|
Glow Plug No. 3
|
|
Top of Engine
|
N/S
|
Glow Plug No. 4
|
|
Top of Engine
|
N/S
|

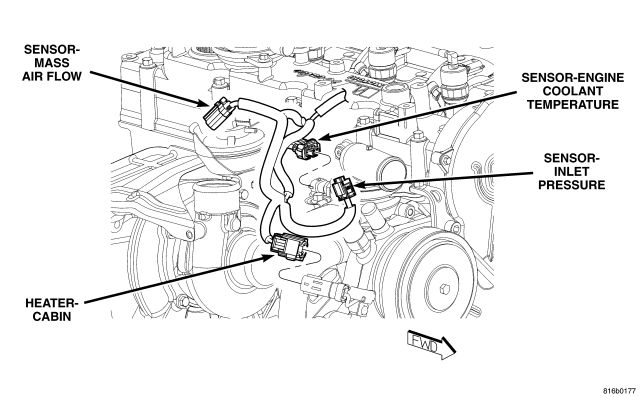

Heater-Cabin (Diesel)
|
|
Right Front Side of Engine
|
FRONT DIESEL ENGINE
|
Heater-Fuel (Diesel)
|
BK
|
Left Rear Side of Engine Compartment
|
DIESEL ENGINE COMPARTMENT
|
Horn
|
|
Left Front Side of Engine Compartment
|
FRONT ENGINE COMPARTMENT
|

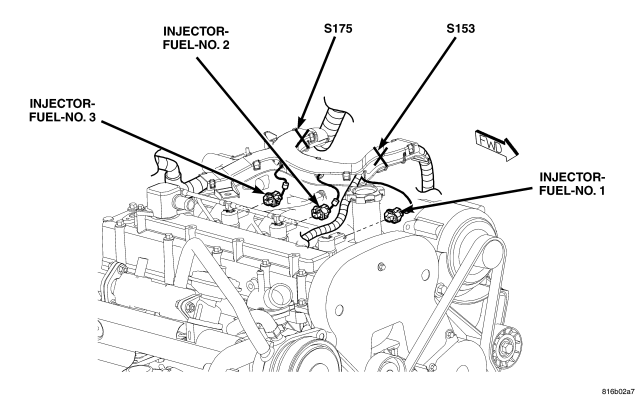

Injector-Fuel-No. 1 (Diesel)
|
BK
|
At Fuel Injector
|
TOP DIESEL ENGINE
|
Injector-Fuel-No. 1 (Gas)
|
BK
|
At Fuel Injector
|
LEFT SIDE ENGINE 3.7L
|
Injector-Fuel-No. 2 (Diesel)
|
BK
|
At Fuel Injector
|
TOP DIESEL ENGINE
|
Injector-Fuel-No. 2 (Gas)
|
BK
|
At Fuel Injector
|
RIGHT SIDE ENGINE 3.7L
|
Injector-Fuel-No. 3 (Diesel)
|
BK
|
At Fuel Injector
|
TOP DIESEL ENGINE
|
Injector-Fuel-No. 3 (Gas)
|
BK
|
At Fuel Injector
|
LEFT SIDE ENGINE 3.7L
|
Injector-Fuel-No. 4 (Diesel)
|
BK
|
At Fuel Injector
|
REAR DIESEL ENGINE
|
Injector-Fuel-No. 4 (Gas)
|
BK
|
At Fuel Injector
|
N/S
|
Injector-Fuel-No. 5 (Gas)
|
BK
|
At Fuel Injector
|
LEFT SIDE ENGINE 3.7L
|
Injector-Fuel-No. 6 (Gas)
|
BK
|
At Fuel Injector
|
RIGHT SIDE ENGINE 3.7L
|
Junction Block C1
|
|
Under Left Side of Instrument Panel
|
N/S
|
Junction Block C2
|
GY
|
Under Left Side of Instrument Panel
|
N/S
|
Junction Block C3
|
GY
|
Under Left Side of Instrument Panel
|
N/S
|
Junction Block-BCM
|
|
Under Left Side of Instrument Panel
|
N/S
|
Lamp-Cargo (Except Base)
|
BK
|
Center Rear Headliner
|
N/S
|
Lamp-Courtesy-Left
|
BK
|
Left Side of Instrument Panel
|
N/S
|
Lamp-Courtesy-Right
|
BK
|
Right Side of Instrument Panel
|
N/S
|
Lamp-Dome
|
|
Front Center Headliner
|
N/S
|
Lamp-Fog Left Front
|
BK
|
Left Side of Front Bumper
|
N/S
|
Lamp-Fog Right Front
|
BK
|
Right Side of Front Bumper
|
N/S
|
Lamp-Headlamp-Left (Except Export)
|
|
Behind Left Headlamp
|
N/S
|
Lamp-Headlamp-Left (Export)
|
|
Behind Left Headlamp
|
N/S
|
Lamp-Headlamp-Right (Except Export)
|
|
Behind Right Headlamp
|
N/S
|
Lamp-Headlamp-Right (Export)
|
|
Behind Right Headlamp
|
N/S
|
Lamp-High Mounted Stop
|
WT
|
At Lamp
|
TAILGATE
|
Lamp-License Plate (Export)
|
LT GY
|
On Bumper
|
TAILGATE
|
Lamp-License Plate (Except Export)
|
|
In Tailgate
|
REAR BODY
|
Lamp-Lightbar-No. 1
|
|
Front of Roof in Light Bar Harness
|
ROOF LIGHT BAR
|
Lamp-Lightbar-No. 2
|
|
Front of Roof in Light Bar Harness
|
ROOF LIGHT BAR
|
Lamp-Lightbar-No. 3
|
|
Front of Roof in Light Bar Harness
|
ROOF LIGHT BAR
|
Lamp-Lightbar-No. 4
|
|
Front of Roof in Light Bar Harness
|
ROOF LIGHT BAR
|
Lamp-Park/Turn-Left Front
|
BK
|
At Lamp
|
N/S
|
Lamp-Park/Turn-Right Front
|
BK
|
At Lamp
|
N/S
|
Lamp-Passenger Airbag On/Off Indicator (Except Export)
|
|
Near Passenger Airbag
|
N/S
|
Lamp-Reading-Front
|
|
At Overhead Console
|
N/S
|
Lamp-Side Marker-Left Front (Except Export)
|
BK
|
Left Front Fender
|
N/S
|
Lamp-Side Marker-Right Front (Except Export)
|
BK
|
Right Front Fender
|
N/S
|
Lamp-Tail/Stop/Turn-Left
|
BK
|
Left Rear Quarter Panel
|
REAR BODY
|
Lamp-Tail/Stop/Turn-Right
|
BK
|
Right Rear Quarter Panel
|
REAR BODY
|
Lamp-Vanity-Left (Except Base)
|
WT
|
Left Front of Headliner
|
N/S
|
Lamp-Vanity-Right (Except Base)
|
WT
|
On Visor
|
N/S
|
Latch-Door Lock Motor/Ajar Switch-Front Left (Except Base)
|
BK
|
In Driver Door
|
FRONT DOORS
|
Latch-Door Lock Motor/Ajar Switch-Front Right (Except Base)
|
|
In Passenger Door
|
FRONT DOORS
|
Latch-Door Lock Motor/Ajar Switch-Rear Left (Except Base)
|
|
In Left Rear Door
|
REAR DOORS
|
Latch-Door Lock Motor/Ajar Switch-Rear Right (Except Base)
|
BK
|
In Right Rear Door
|
REAR DOORS
|
Latch-Lock Motor/Ajar Switch-Tailgate
|
BK
|
In Tailgate
|
TAILGATE
|
Mirror-Inside Rearview C1
|
|
Top Center Windshield
|
N/S
|
Mirror-Inside Rearview C2 (Hands Free)
|
|
Top Center Windshield
|
N/S
|
Mirror-Outside Rearview-Driver (Except Base)
|
WT
|
In Left Front Door
|
FRONT DOORS
|
Mirror-Outside Rearview-Passenger (Except Base)
|
WT
|
In Right Front Door
|
FRONT DOORS
|
Module-Antenna C1 (Export)
|
|
Above Right Quarter Window
|
RADIO ANTENNA (EXPORT)
|
Module-Antenna C2 (Export)
|
|
Above Right Quarter Window
|
RADIO ANTENNA (EXPORT)
|
Module-Antilock Brakes
|
|
Left Side of Engine Compartment
|
LEFT SIDE ENGINE COMPARTMENT
|
Module-Body Control C1
|
GY
|
Under Left Side of Instrumental Panel
|
N/S
|
Module-Body Control C2
|
GY
|
Under Left Side of Instrumental Panel
|
N/S
|
Module-Body Control JB
|
|
Under Left Side of Instrumental Panel
|
N/S
|
Module-Electronic Overhead (Premium)
|
BK
|
At Overhead Console
|
N/S
|

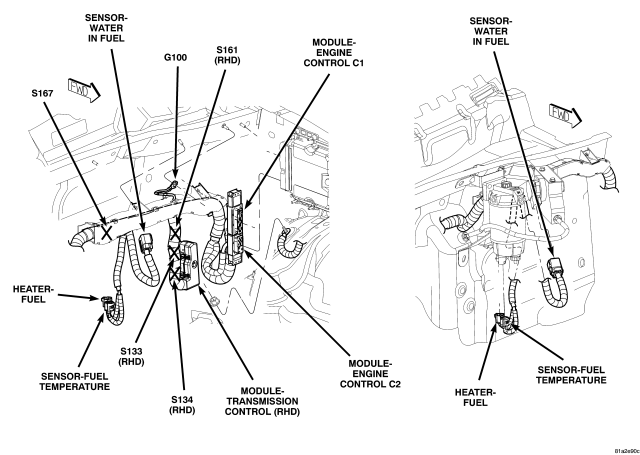

Module-Engine Control C1 (Diesel)
|
|
Left Rear Side of Engine Compartment
|
DIESEL ENGINE COMPARTMENT
|
Module-Engine Control C2 (Diesel)
|
|
Left Rear Side of Engine Compartment
|
DIESEL ENGINE COMPARTMENT
|

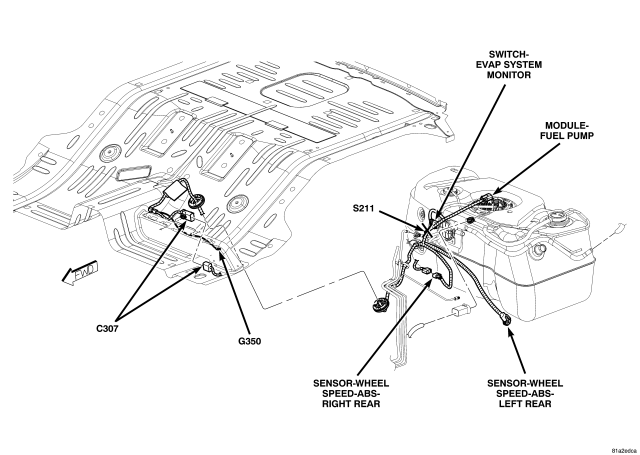

Module-Fuel Pump
|
|
At Fuel Tank
|
FUEL TANK
|
Module-Glow Plug (Diesel)
|
|
Top of Engine
|
N/S
|
Module-Hands Free C1
|
|
Right Rear Side of Cargo Area
|
RIGHT REAR BODY LOWER CORNER
|
Module-Hands Free C2 (Satellite)
|
|
Right Rear Side of Cargo Area
|
RIGHT REAR BODY LOWER CORNER
|
Module-Hands Free C3
|
|
Right Rear Side of Cargo Area
|
RIGHT REAR BODY LOWER CORNER
|
Module-Heated Seat (Highline)
|
GN
|
At Left Seat
|
N/S
|
Module-Intrusion Transceiver (Export)
|
BK
|
Overhead Console
|
N/S
|
Module-Occupant Classification
|
|
Under Passenger Seat
|
N/S
|

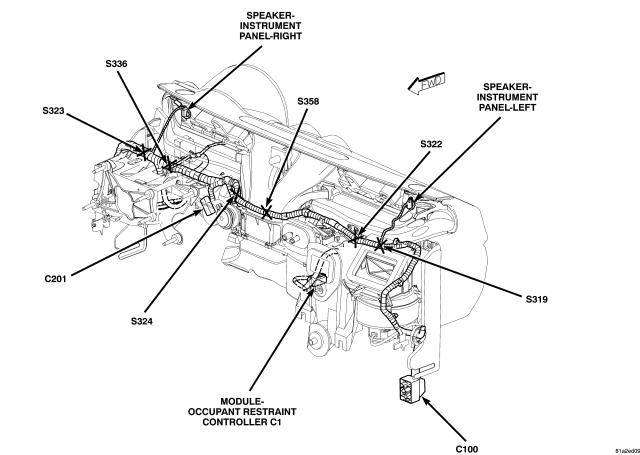

Module-Occupant Restraint Controller C1 (ORC)
|
|
Under Center Console
|
INSTRUMENT PANEL LHD, INSTRUMENT PANEL RHD
|
Module-Occupant Restraint Controller C2 (ORC)
|
|
Under Center Console
|
RIGHT FRONT BODY LHD, RIGHT FRONT BODY RHD
|

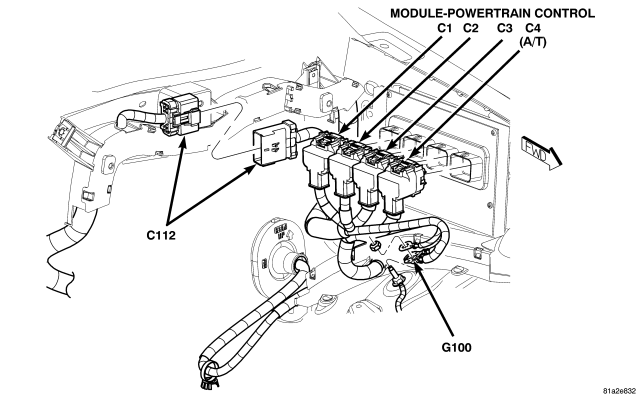

Module-Powertrain Control C1
|
BK/BK
|
At Powertrain Control Module
|
RIGHT SIDE ENGINE COMPARTMENT 3.7L, LEFT SIDE ENGINE COMPARTMENT 3.7L
|
Module-Powertrain Control C2
|
BK/OR
|
At Powertrain Control Module
|
RIGHT SIDE ENGINE COMPARTMENT 3.7L, LEFT SIDE ENGINE COMPARTMENT 3.7L
|

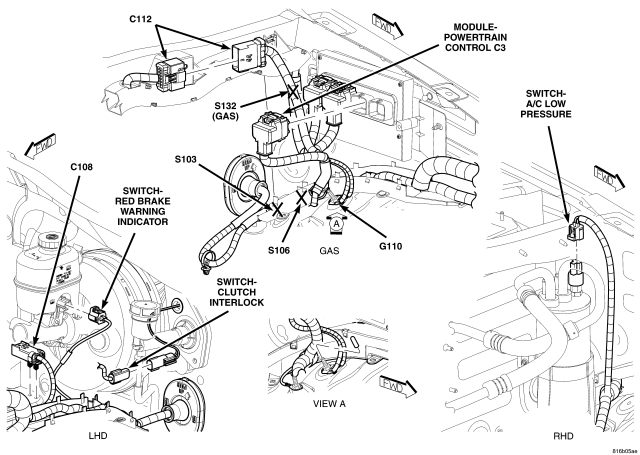

Module-Powertrain Control C3
|
BK/NAT
|
At Powertrain Control Module
|
LEFT SIDE ENGINE COMPARTMENT 3.7L, REAR ENGINE COMPARTMENT
|

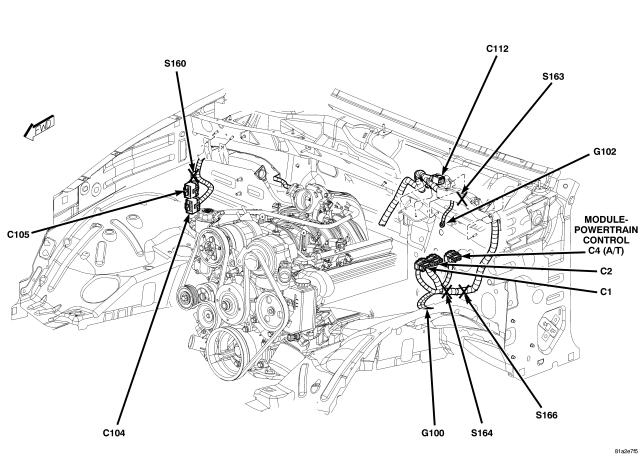

Module-Powertrain Control C4 (Gas A/T)
|
BK/GN
|
At Powertrain Control Module
|
RIGHT SIDE ENGINE COMPARTMENT 3.7L, LEFT SIDE ENGINE COMPARTMENT 3.7L
|
Module-Sentry Key Remote Entry/WCM (Except Base)
|
BK
|
Under Left Side of Instrument Panel
|
N/S
|

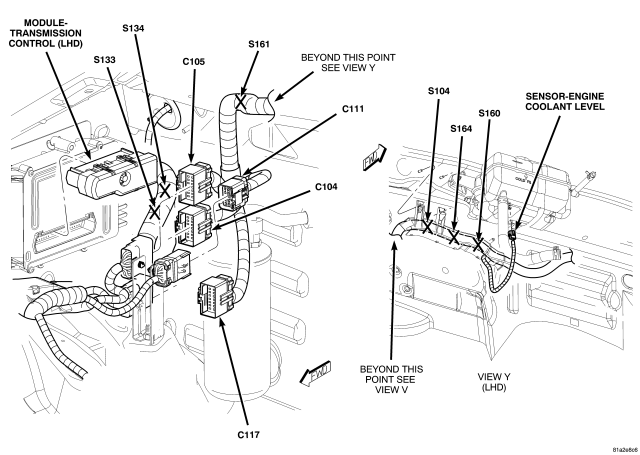

Module-Transmission Control (Diesel LHD)
|
BK
|
Right Rear Side of Engine Compartment
|
DIESEL ENGINE COMPARTMENT
|
Module-Transmission Control (Diesel RHD)
|
BK
|
Left Rear Engine Compartment
|
DIESEL ENGINE COMPARTMENT
|
Motor-Blower
|
BK
|
Behind Right Side of Instrument Panel
|
N/S
|
Motor-Flip-Up Glass Release
|
BK
|
In Tailgate
|
TAILGATE
|
Motor-Headlamp Leveling-Left (Export)
|
BK
|
At Left Headlamp
|
N/S
|
Motor-Headlamp Leveling-Right (Export)
|
BK
|
At Right Headlamp
|
N/S
|
Motor-IAC
|
|
On Throttle Body
|
LEFT SIDE ENGINE 3.7L
|

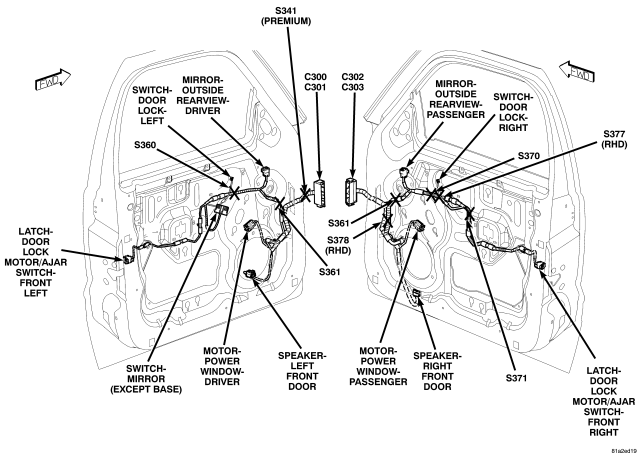

Motor-Power Window-Driver (Midline/Highline)
|
LT GY
|
In Left Front Door
|
FRONT DOORS
|
Motor-Power Window-Passenger (Midline/Highline)
|
LT GY
|
In Right Front Door
|
FRONT DOORS
|
Motor-Radiator Fan
|
|
Right Front Side of Engine Compartment
|
ENGINE COMPARTMENT
|
Motor-Rear Window Wiper
|
BK
|
In Tailgate
|
TAILGATE
|
Motor-Sunroof
|
LT GY
|
Overhead Console
|
N/S
|

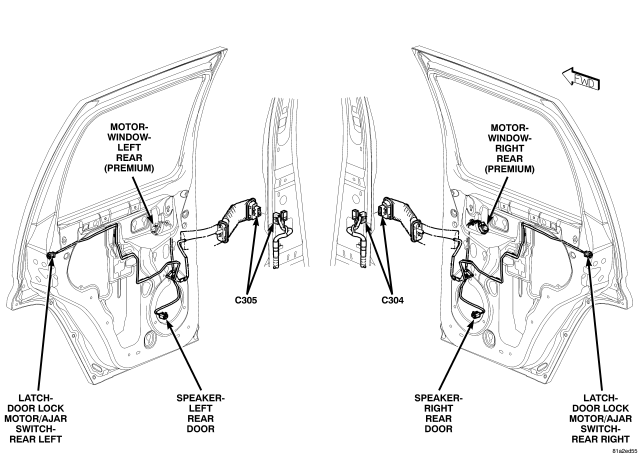

Motor-Window-Left Rear
|
LT GY
|
In Left Rear Door
|
REAR DOORS
|
Motor-Window-Right Rear
|
LT GY
|
In Right Rear Door
|
REAR DOORS
|

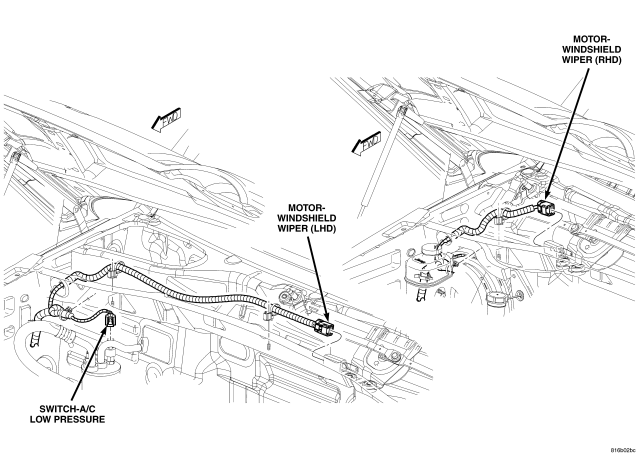

Motor-Windshield Wiper (LHD)
|
BK
|
Left Side Cowl
|
LEFT SIDE ENGINE COMPARTMENT
|
Motor-Windshield Wiper (RHD)
|
BK
|
Right Side Cowl
|
LEFT SIDE ENGINE COMPARTMENT
|
Power Distribution Center
|
|
Left Engine Compartment
|
LEFT SIDE ENGINE COMPARTMENT
|
Power Distribution Center Eyelet
|
|
Right Side Engine Compartment
|
LEFT ENGINE COMPARTMENT (GAS),
|
Power Outlet-Instrument Panel
|
|
Behind Outlet
|
N/S
|

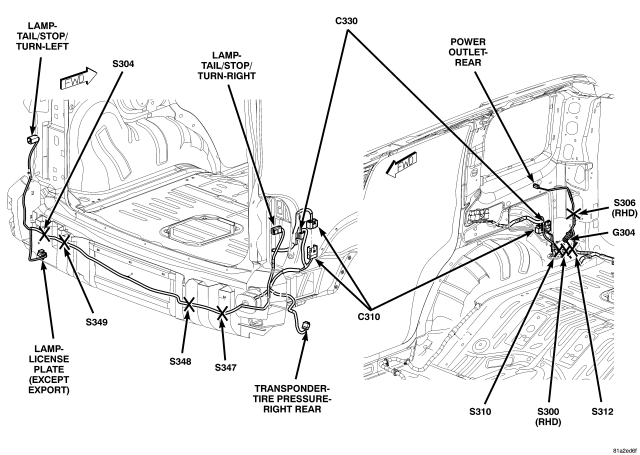

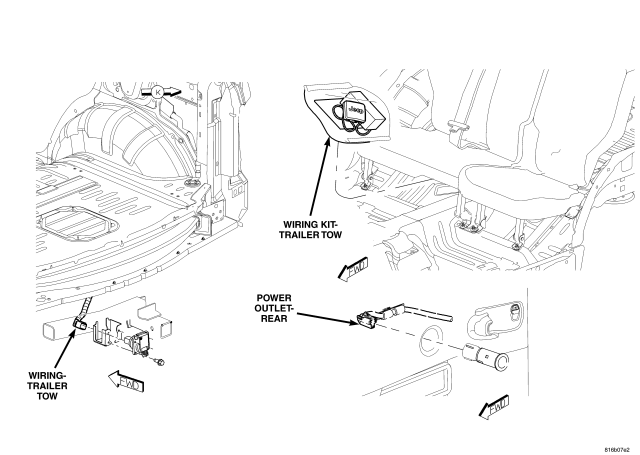

Power Outlet-Rear
|
|
Right Rear Quarter Panel
|
REAR BODY, REAR BODY
|

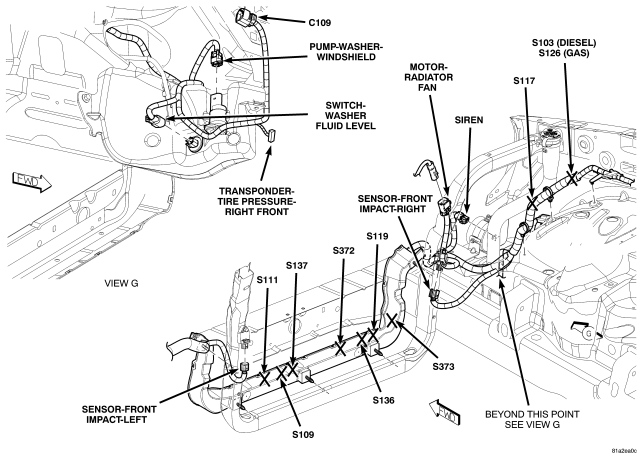

Pump-Washer-Windshield
|
|
Right Front Side of Engine Compartment
|
ENGINE COMPARTMENT
|

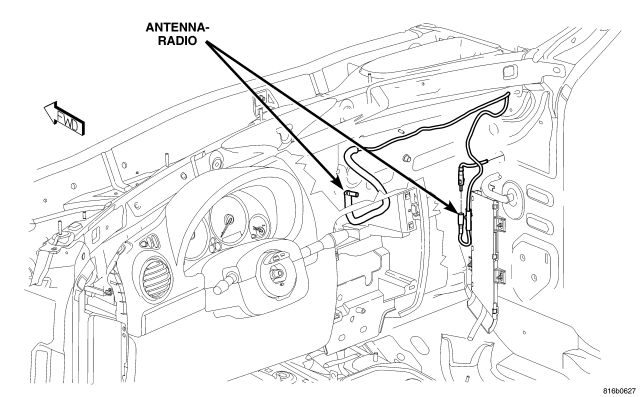

Radio Antenna (Except Export)
|
|
Center Instrument Panel
|
N/S
|
Radio C1
|
|
Rear of Radio
|
N/S
|
Radio C2
|
|
Rear of Radio
|
N/S
|
Radio C3 (Except Export)
|
|
Rear of Radio
|
N/S
|

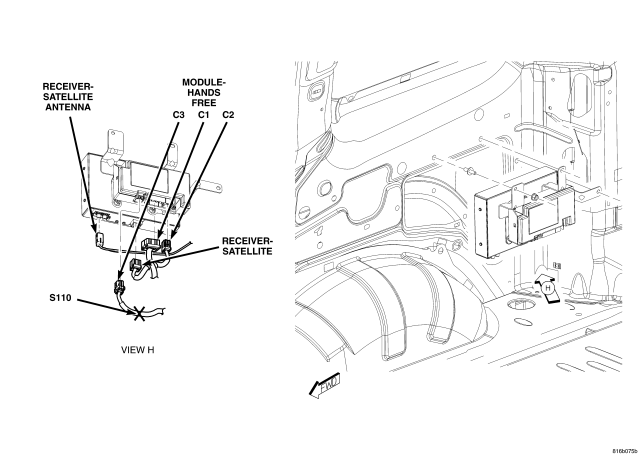

Receiver-Satellite
|
|
Right Rear Side of Cargo Area
|
RIGHT REAR BODY LOWER CORNER
|
Receiver-Satellite Antenna
|
|
Right Rear Cargo Area
|
RIGHT REAR BODY LOWER CORNER
|
Relay-Trailer Tow
|
|
Right Quarter Panel
|
TRAILER TOW CONNECTORS
|
Relay-Trailer Tow Brake Lamp
|
|
Right Quarter Panel
|
TRAILER TOW CONNECTORS
|
Relay-Trailer Tow Left
|
|
Right Quarter Panel
|
TRAILER TOW CONNECTORS
|
Relay-Trailer Tow Right
|
|
Right Quarter Panel
|
TRAILER TOW CONNECTORS
|
Resistor-Blower Motor
|
BK
|
Behind Right Side of Instrument Panel
|
N/S
|

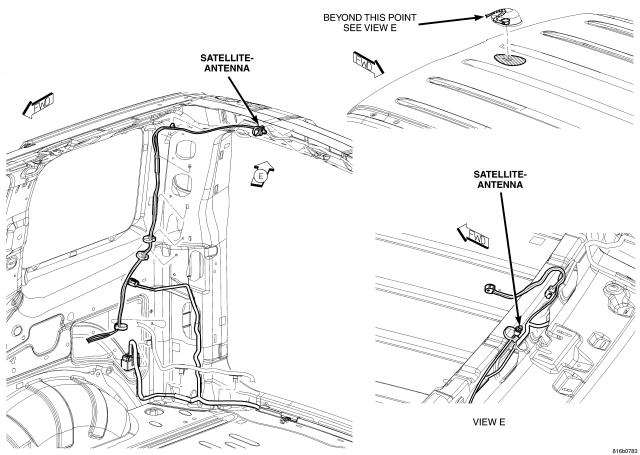

Satellite Antenna
|
|
Center Rear Roof
|
RIGHT REAR BODY UPPER CORNER
|
Seat Belt-Tensioner-Driver (LHD)
|
|
Lower Left B-Pillar
|
LEFT FRONT BODY LHD
|
Seat Belt-Tensioner-Driver (RHD)
|
|
Lower Right B-Pillar
|
RIGHT FRONT BODY RHD
|

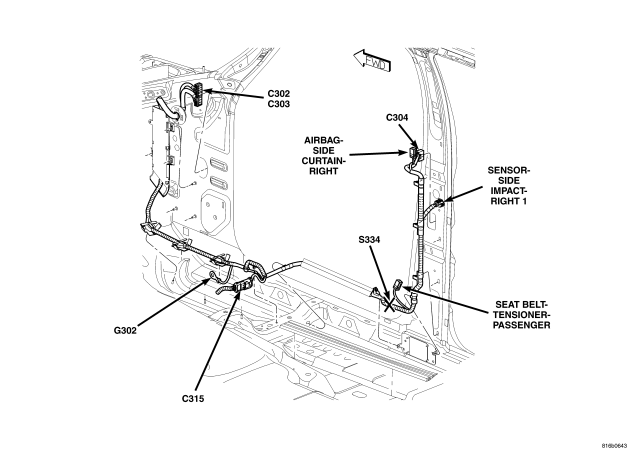

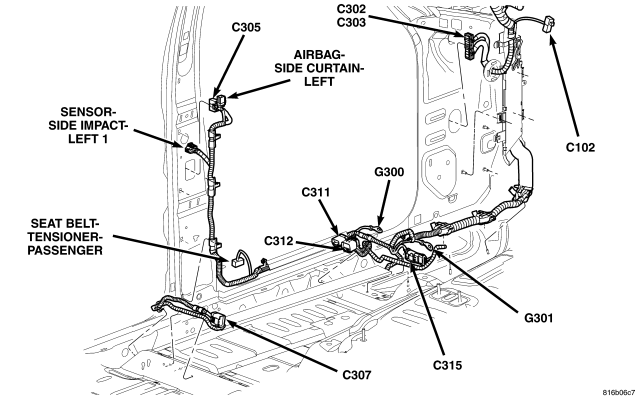

Seat Belt-Tensioner-Passenger
|
|
Base of Right B-Pillar
|
LEFT FRONT BODY RHD
|
Sensor-Accelerator Pedal Position
|
|
At Base of Pedal
|
N/S
|
Sensor-Ambient Air Temperature
|
|
Front of Engine Compartment
|
N/S
|

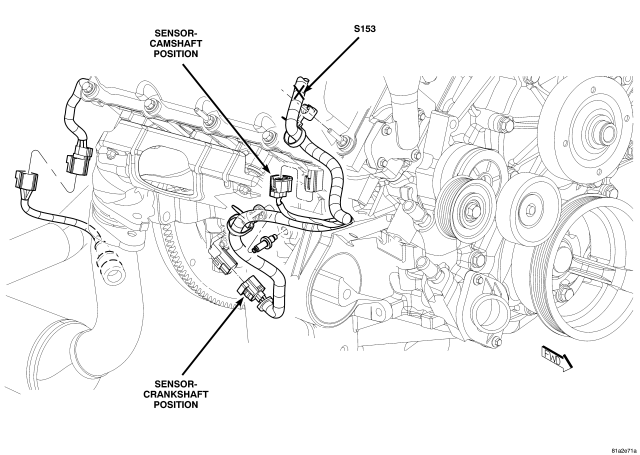

Sensor-Camshaft Position (3.7L)
|
LT GY
|
Right Side of Engine
|
LOWER RIGHT ENGINE 3.7L
|
Sensor-Camshaft Position (Diesel)
|
|
Top of Engine
|
REAR DIESEL ENGINE
|

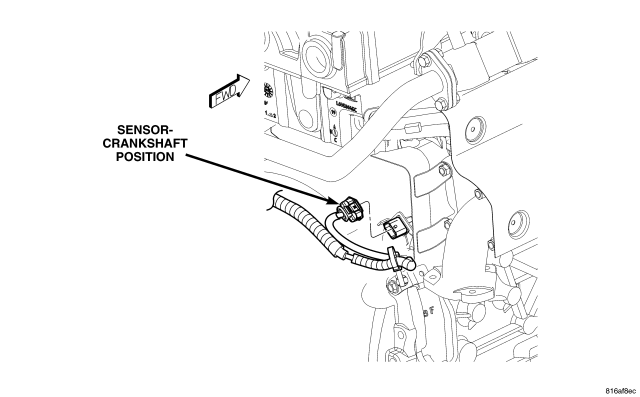

Sensor-Crankshaft Position (3.7L)
|
BK
|
Right Lower Side of Engine
|
LOWER RIGHT ENGINE 3.7L
|
Sensor-Crankshaft Position (Diesel)
|
BK
|
Right Rear Side of Engine
|
DIESEL ENGINE, TRANSMISSION
|
Sensor-Dynamics (ESP)
|
|
Under Center Console
|
RIGHT FRONT BODY LHD, RIGHT FRONT BODY RHD
|
Sensor-Engine Coolant Level (Diesel)
|
|
Rear Side of Engine Compartment
|
DIESEL ENGINE COMPARTMENT
|
Sensor-Engine Coolant Temperature (Diesel)
|
|
Left Side of Engine
|
FRONT DIESEL ENGINE
|
Sensor-Engine Coolant Temperature (Gas)
|
|
Front Side of Engine
|
RIGHT SIDE ENGINE 3.7L
|

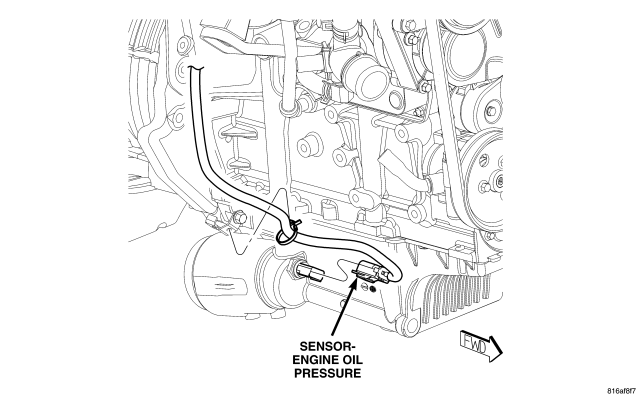

Sensor-Engine Oil Pressure (Diesel)
|
BK
|
Right Rear Side of Engine
|
LOWER RIGHT FRONT DIESEL ENGINE, TRANSMISSION
|
Sensor-Front Impact-Left
|
|
Left Front Side of Engine Compartment
|
ENGINE COMPARTMENT, FRONT ENGINE COMPARTMENT
|
Sensor-Front Impact-Right
|
|
Right Front Side of Engine Compartment
|
ENGINE COMPARTMENT
|

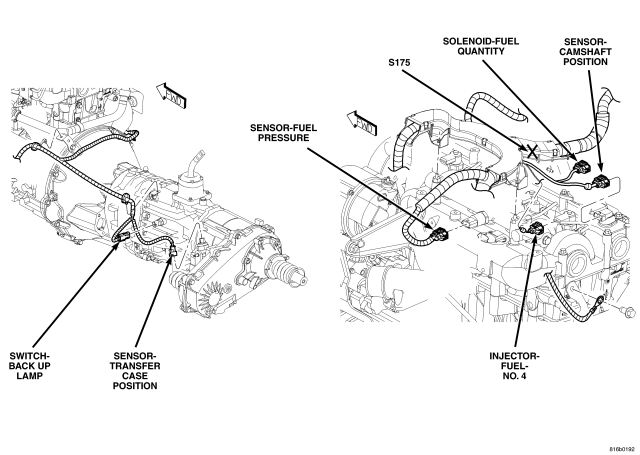

Sensor-Fuel Pressure (Diesel)
|
BK
|
Left Side of Engine
|
REAR DIESEL ENGINE
|
Sensor-Fuel Temperature (Diesel)
|
|
Center Rear of Engine Compartment
|
DIESEL ENGINE COMPARTMENT
|
Sensor-Inlet Pressure (Diesel)
|
|
Left Rear Engine
|
FRONT DIESEL ENGINE
|
Sensor-Input Speed (A/T)
|
BK
|
Left Side of Transmission
|
LEFT SIDE TRANSMISSION 3.7L, TRANSMISSION
|
Sensor-Intake Air Temperature (Gas)
|
GY
|
Left Side of Intake Manifold
|
LEFT SIDE ENGINE 3.7L
|
Sensor-Intake Air Temperature/Intake Pressure (Diesel)
|
|
On Diesel Injector Harness
|
N/S
|

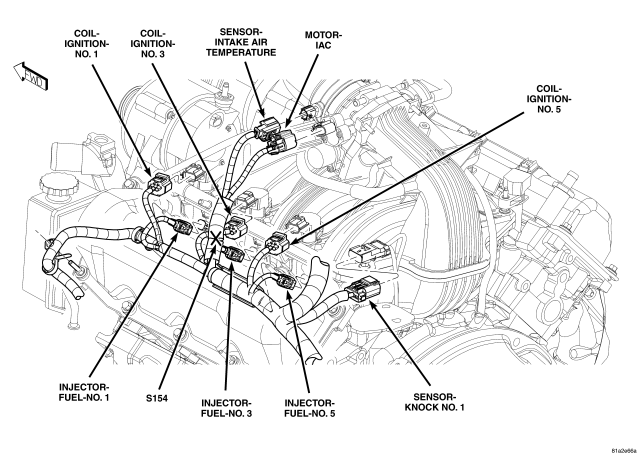

Sensor-Knock No. 1 (3.7L)
|
|
Near Fuel Injector No.5
|
LEFT SIDE ENGINE 3.7L
|
Sensor-Knock No. 2 (3.7L)
|
|
On Injector Harness
|
N/S
|
Sensor-Line Pressure (2.8L 45RFE)
|
BK
|
Right Side of Transmission
|
TRANSMISSION
|
Sensor-MAP (Gas)
|
BK
|
Front Side of Engine
|
RIGHT SIDE ENGINE 3.7L
|
Sensor-Mass Air Flow (Diesel)
|
|
Top of Engine
|
FRONT DIESEL ENGINE
|
Sensor-Output Speed
|
BK
|
Left Side of Transmission
|
LEFT SIDE TRANSMISSION 3.7L, TRANSMISSION
|
Sensor-Oxygen-Left Front (3.7L)
|
BK
|
Lower Left Side of Engine
|
LEFT SIDE TRANSMISSION 3.7L, MANUAL TRANSMISSION 3.7L
|
Sensor-Oxygen-Left Rear (3.7L)
|
NAT
|
Left Side of Transmission
|
LEFT SIDE TRANSMISSION 3.7L
|
Sensor-Oxygen-Right Front (3.7L)
|
BK
|
Lower Right Side of Engine
|
RIGHT SIDE TRANSMISSION 3.7L
|
Sensor-Oxygen-Right Rear (3.7L)
|
NAT
|
Right Side of Transmission
|
RIGHT SIDE TRANSMISSION 3.7L, MANUAL TRANSMISSION 3.7L
|
Sensor-Seat Belt Tension
|
|
Under Passenger Seat
|
N/S
|
Sensor-Seat Weight-Passenger
|
|
In Passenger Seat
|
N/S
|
Sensor-Side Impact-Left 1
|
|
Left B-Pillar
|
LEFT FRONT BODY LHD, LEFT FRONT BODY RHD
|
Sensor-Side Impact-Right 1
|
|
Right B-Pillar
|
RIGHT FRONT BODY LHD, RIGHT FRONT BODY RHD
|
Sensor-Steering Angle
|
|
Instrument Panel
|
N/S
|
Sensor-Transfer Case Position
|
BK
|
Rear of Transmission
|
LEFT SIDE TRANSMISSION 3.7L, MANUAL TRANSMISSION 3.7L, REAR DIESEL ENGINE, TRANSMISSION
|
Sensor-Transmission Range (42RLE)
|
|
Left Side of Transmission
|
LEFT SIDE TRANSMISSION 3.7L
|
Sensor-Water In Fuel (Diesel)
|
GY
|
Left Rear Side of Engine Compartment
|
DIESEL ENGINE COMPARTMENT
|

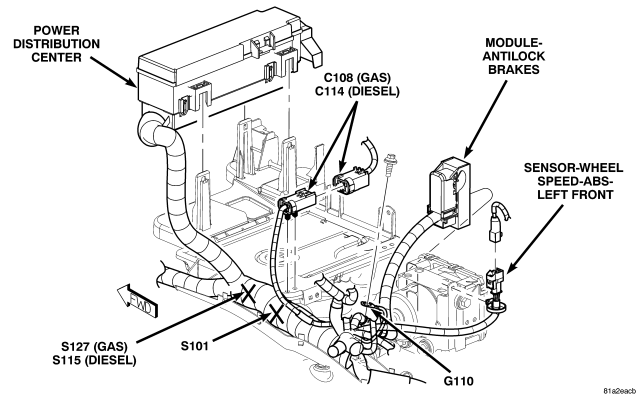

Sensor-Wheel Speed-ABS-Left Front
|
BK
|
Left Side of Engine Compartment
|
LEFT SIDE ENGINE COMPARTMENT
|
Sensor-Wheel Speed-ABS-Left Rear
|
BK
|
Front of Fuel Tank
|
FUEL TANK
|

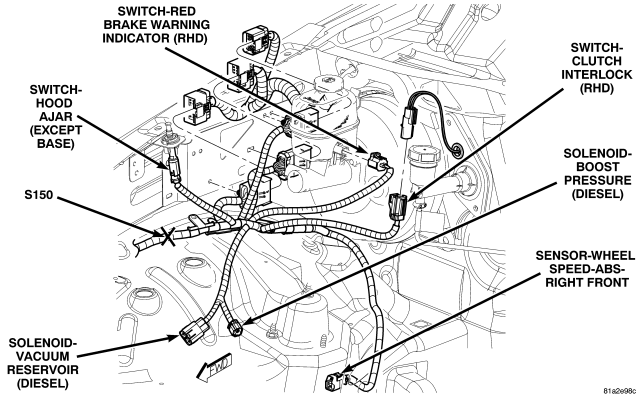

Sensor-Wheel Speed-ABS-Right Front
|
BK
|
Right Rear Lower Side of Engine Compartment
|
RIGHT SIDE ENGINE COMPARTMENT
|
Sensor-Wheel Speed-ABS-Left Rear
|
BK
|
Front of Fuel Tank
|
FUEL TANK
|
Sensor-Wheel Speed-ABS-Right Rear
|
BK
|
Front of Fuel Tank
|
FUEL TANK
|
Siren (Export)
|
|
Right Front Side of Engine Compartment
|
ENGINE COMPARTMENT
|
Solenoid-Boost Pressure (Diesel)
|
|
Right Rear Engine Compartment
|
RIGHT SIDE ENGINE COMPARTMENT
|

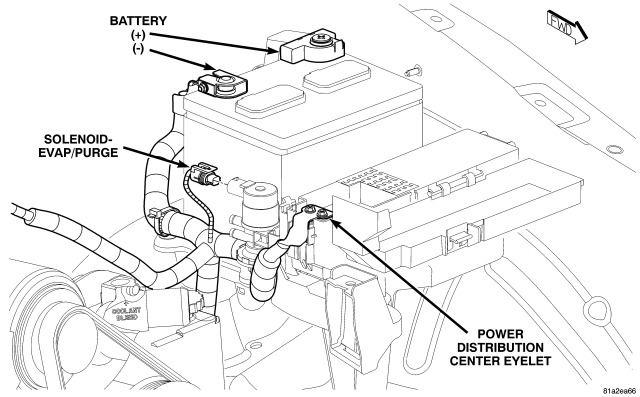

Solenoid-Evap/Purge (Gas)
|
BK
|
Right Side of Battery
|
LEFT ENGINE COMPARTMENT (GAS)
|
Solenoid-Fuel Pressure (Diesel)
|
|
Left Side of Engine
|
LEFT SIDE DIESEL ENGINE
|
Solenoid-Fuel Quantity (Diesel)
|
BK
|
Top of Engine
|
REAR DIESEL ENGINE
|
Solenoid-Vacuum Reservoir (Diesel)
|
|
Right Rear Engine Compartment
|
RIGHT SIDE ENGINE COMPARTMENT
|
Speaker-Instrument Panel-Left
|
|
Left Side of Instrument Panel
|
INSTRUMENT PANEL LHD, INSTRUMENT PANEL RHD
|
Speaker-Instrument Panel-Right
|
|
Right Side of Instrument Panel
|
INSTRUMENT PANEL LHD, INSTRUMENT PANEL RHD
|
Speaker-Left Front Door
|
|
Behind Left Front Door Panel
|
FRONT DOORS
|
Speaker-Left Rear Door (Premium)
|
|
In Left Rear Door
|
REAR DOORS
|
Speaker-Right Front Door
|
BK
|
Behind Right Front Door Panel
|
FRONT DOORS
|
Speaker-Right Rear Door (Premium)
|
|
In Right Rear Door
|
REAR DOORS
|

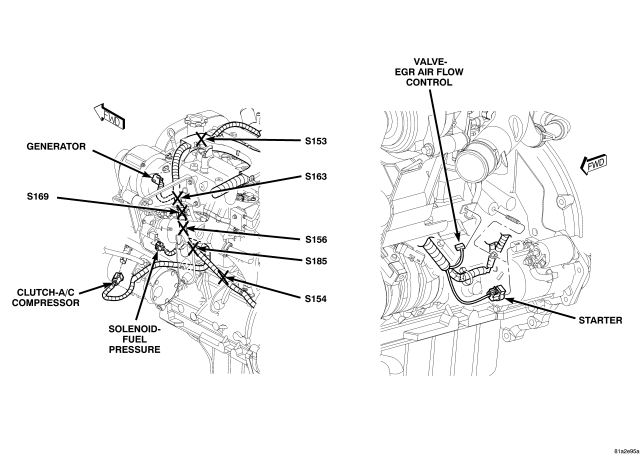

Starter
|
|
At Starter
|
LEFT SIDE DIESEL ENGINE, LEFT FRONT ENGINE COMPARTMENT, LEFT FRONT ENGINE COMPARTMENT (DIESEL)
|
Starter-Eyelet
|
|
Right Front Side of Engine
|
N/S
|
Switch-A/C-Low Pressure (LHD)
|
GY
|
Right Rear Side of Engine Compartment
|
LEFT SIDE ENGINE COMPARTMENT
|
Switch-A/C-Low Pressure (RHD)
|
GY
|
Left Rear Side of Engine Compartment
|
REAR ENGINE COMPARTMENT
|

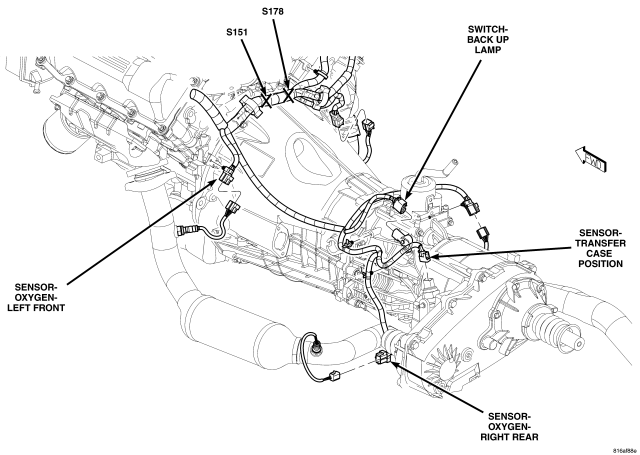

Switch-Back Up Lamp (M/T)
|
BK
|
Left Side of Transmission
|
MANUAL TRANSMISSION 3.7L, REAR DIESEL ENGINE
|
Switch-Clutch Interlock(M/T LHD)
|
|
Left Rear Side of Transmission
|
REAR ENGINE COMPARTMENT
|
Switch-Clutch Interlock(M/T RHD)
|
|
Right Rear Side of Engine Compartment
|
RIGHT SIDE ENGINE COMPARTMENT
|
Switch-Door Lock-Left (Except Base)
|
BK
|
In Left Front Door
|
FRONT DOORS
|
Switch-Door Lock-Right (Except Base)
|
BK
|
In Right Front Door
|
FRONT DOORS
|
Switch-ESP
|
|
Near Steering Column
|
N/S
|
Switch-EVAP System Monitor (Gas)
|
|
Near Fuel Tank
|
|
Switch-Flip-Up Glass Ajar
|
|
In Tailgate
|
TAILGATE
|
Switch-Flip-Up Glass Release
|
WT
|
In Tailgate
|
TAILGATE
|
Switch-Hazard/Combination Flasher
|
WT
|
On Steering Column
|
N/S
|
Switch-Headlamp Leveling (Export)
|
|
Center of Instrument Panel
|
N/S
|
Switch-Heated Seat-Driver (Highline)
|
BK
|
At Left Seat
|
N/S
|
Switch-Heated Seat-Passenger (Highline)
|
BK
|
At Right Seat
|
N/S
|
Switch-Hood Ajar (except Base)
|
|
Right Side of Engine Compartment
|
RIGHT SIDE ENGINE COMPARTMENT
|
Switch-Horn
|
|
At Steering Wheel
|
STEERING WHEEL
|
Switch-Ignition
|
BK
|
At Steering Column
|
N/S
|
Switch-Lightbar (Renegade)
|
|
Near Instrument Cluster
|
N/S
|
Switch-Mirror (Except Base)
|
WT
|
In Left Front Door
|
FRONT DOORS
|
Switch-Multifunction C1
|
GY
|
At Steering Column
|
N/S
|
Switch-Multifunction C2
|
GY
|
At Steering Column
|
N/S
|

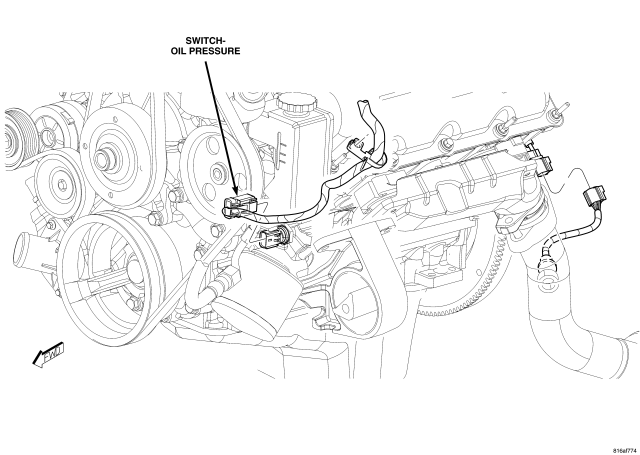

Switch-Oil Pressure (Gas)
|
|
Left Front Side of Engine
|
LOWER LEFT ENGINE 3.7L
|
Switch-Park Brake
|
|
Center Console
|
RIGHT FRONT BODY LHD, RIGHT FRONT BODY RHD
|
Switch-Power Window-Master
|
LT GY
|
Center Console
|
RIGHT FRONT BODY LHD, RIGHT FRONT BODY RHD
|
Switch-Power Window-Rear
|
|
Center Console
|
RIGHT FRONT BODY LHD, RIGHT FRONT BODY RHD
|
Switch-Red Brake Warning Indicator (LHD)
|
|
Left Rear Side of Engine Compartment
|
REAR ENGINE COMPARTMENT
|
Switch-Red Brake Warning Indicator (RHD)
|
|
Right Rear Side of Engine Compartment
|
RIGHT SIDE ENGINE COMPARTMENT
|
Switch-Remote Radio-Left (Premium)
|
BK
|
On Steering Wheel
|
N/S
|
Switch-Remote Radio-Right (Premium)
|
BK
|
On Steering Wheel
|
N/S
|
Switch-Seat Belt-Driver
|
LG
|
At Driver Seat
|
N/S
|
Switch-Seat-Driver (Midline/Highline)
|
|
At Driver Seat
|
N/S
|
Switch-Seat-Passenger (Midline/Highline)
|
GN
|
At Passenger Seat
|
N/S
|
Switch-Speed Control-Left (Except Base)
|
BK
|
On Steering Wheel
|
STEERING WHEEL
|
Switch-Speed Control-Right (Except Base)
|
BK
|
On Steering Wheel
|
STEERING WHEEL
|
Switch-Stop Lamp
|
BK
|
At Brake Pedal
|
N/S
|
Switch-Sunroof
|
BK
|
Overhead Console
|
N/S
|
Switch-Washer Fluid Level
|
|
At Washer Fluid Reservoir
|
ENGINE COMPARTMENT
|
Throttle Body (Gas)
|
|
At Throttle Body
|
N/S
|
Transducer-A/C Pressure
|
BK
|
Front Side of Engine
|
RIGHT SIDE ENGINE 3.7L
|
Transponder-Tire Pressure-Left Front
|
|
Left Front Engine Compartment
|
FRONT ENGINE COMPARTMENT
|
Transponder-Tire Pressure-Right Front
|
|
Right Front Engine Compartment
|
ENGINE COMPARTMENT
|
Transponder-Tire Pressure-Right Rear
|
|
Right Rear Lower Body
|
REAR BODY
|
Valve-EGR Air Flow Control (Diesel)
|
|
Left Rear Engine
|
LEFT SIDE DIESEL ENGINE
|
Wiring-Electric Brake Provision
|
|
Left Side of Instrument Panel
|
LEFT FRONT BODY LHD
|
Wiring-Trailer Tow
|
BK
|
At Trailer Hitch
|
TRAILER TOW CONNECTORS, REAR BODY
|
SPLICES
SPLICE NUMBER
|
LOCATION
|
FIG.
|
S101
|
Near T/O to Power Distribution Center
|
LEFT SIDE ENGINE COMPARTMENT
|
S103 (Diesel)
|
Right Side Engine Compartment
|
ENGINE COMPARTMENT
|
S103 (Gas)
|
Left Rear Engine Compartment
|
REAR ENGINE COMPARTMENT
|
S104
|
Rear Engine Compartment
|
DIESEL ENGINE COMPARTMENT
|
S105
|
In T/O for C100
|
ENGINE TO INSTRUMENT PANEL
|
S106
|
In T/O for C100
|
REAR ENGINE COMPARTMENT
|
S108
|
Near T/O for C106
|
N/S
|
S109
|
In Trough Near T/O for High Note Horn
|
ENGINE COMPARTMENT
|
S110
|
Near T/O for C106
|
FRONT ENGINE COMPARTMENT, RIGHT REAR BODY LOWER CORNER
|
S111
|
In Trough Near T/O for High Note Horn
|
ENGINE COMPARTMENT
|
S113 (LHD)
|
In T/O for C100
|
N/S
|
S114
|
Left Front Engine Compartment
|
FRONT ENGINE COMPARTMENT
|
S115
|
Near T/O for Power Distribution Center
|
LEFT SIDE ENGINE COMPARTMENT
|
S116
|
Overhead Harness
|
N/S
|
S117
|
Right Side Engine Compartment
|
ENGINE COMPARTMENT
|
S118
|
Left Front Engine Compartment
|
FRONT ENGINE COMPARTMENT
|
S119
|
Right Front Lower Engine Compartment
|
ENGINE COMPARTMENT
|
S121
|
Left Front Engine Compartment
|
FRONT ENGINE COMPARTMENT
|
S122
|
Left Front Engine Compartment
|
FRONT ENGINE COMPARTMENT
|
S123
|
In Trough, Front of Engine Compartment
|
N/S
|
S124
|
In T/O for Junction Block C3
|
ENGINE TO INSTRUMENT PANEL
|
S125
|
In T/O for Junction Block C3
|
ENGINE TO INSTRUMENT PANEL
|
S126 (Gas)
|
Right Side Engine Compartment
|
ENGINE COMPARTMENT
|
S127
|
Near T/O for Power Distribution Center
|
LEFT SIDE ENGINE COMPARTMENT
|
S130
|
Near T/O for Left Headlamp
|
N/S
|
S131
|
In T/O for Right Headlamp
|
N/S
|
S132 (Diesel)
|
Left Front Engine Compartment
|
FRONT ENGINE COMPARTMENT
|
S132 (Gas)
|
In T/O for C112
|
REAR ENGINE COMPARTMENT
|
S133
|
In T/O for Transmission Control Module
|
DIESEL ENGINE COMPARTMENT, DIESEL ENGINE COMPARTMENT
|
S134
|
In T/O for Transmission Control Module
|
DIESEL ENGINE COMPARTMENT, DIESEL ENGINE COMPARTMENT
|
S136
|
Lower Front Engine Compartment
|
ENGINE COMPARTMENT
|
S137
|
Lower Front Engine Compartment
|
ENGINE COMPARTMENT
|
S141
|
Near T/O for Left Fog Lamp
|
N/S
|
S142
|
Near T/O for Left Front Park/Turn Signal Lamp
|
N/S
|
S144
|
Near T/O for Left Fog Lamp
|
N/S
|
S145
|
Near T/O for Right Front Park/Turn Signal Lamp
|
N/S
|
S146
|
Right Side Engine Compartment
|
N/S
|
S149
|
Front Lighting Harness
|
N/S
|
S150
|
Right Side Engine Compartment
|
RIGHT SIDE ENGINE COMPARTMENT
|
S151 (3.7L)
|
Rear of Engine
|
LEFT SIDE TRANSMISSION 3.7L, RIGHT SIDE TRANSMISSION 3.7L, MANUAL TRANSMISSION 3.7L
|
S151 (Diesel)
|
In Trough Near T/O for Accelerator Pedal Position Sensor
|
N/S
|
S152
|
In Trough Near T/O for Fuel Injector No.4
|
RIGHT SIDE ENGINE 3.7L
|
S153 (3.7L)
|
Right Front Engine
|
RIGHT SIDE ENGINE 3.7L, LOWER RIGHT ENGINE 3.7L
|
S153 (Diesel)
|
In Trough Near T/O for Generator
|
LEFT SIDE DIESEL ENGINE, TOP DIESEL ENGINE
|
S154
|
Near T/O for IAC Motor
|
LEFT SIDE DIESEL ENGINE
|
S155
|
Near T/O for Knock Sensor
|
LEFT SIDE TRANSMISSION 3.7L
|
S156 (3.7L)
|
Near T/O for Powertrain Control Module C1
|
N/S
|
S156 (Diesel)
|
Left Side Engine
|
LEFT SIDE DIESEL ENGINE
|
S157
|
Near T/O for Oxygen Sensor 1/1 Upstream
|
LEFT SIDE TRANSMISSION 3.7L
|
S158
|
In Trough Near T/O for C112
|
N/S
|
S159
|
Near T/O for Knock Sensor
|
N/S
|
S160 (3.7L)
|
In T/O for C105
|
RIGHT SIDE ENGINE COMPARTMENT 3.7L, RIGHT SIDE ENGINE COMPARTMENT 3.7L RHD
|
S160 (Diesel)
|
In T/O for Transmission Control Module
|
DIESEL ENGINE COMPARTMENT
|
S161 (LHD)
|
Right Rear Engine Compartment
|
DIESEL ENGINE COMPARTMENT
|
S161 (RHD)
|
In T/O for Transmission Control Module
|
DIESEL ENGINE COMPARTMENT, DIESEL ENGINE COMPARTMENT
|
S163 (3.7L)
|
Left Rear Engine Compartment
|
RIGHT SIDE ENGINE COMPARTMENT 3.7L
|
S163 (Diesel)
|
Near T/O for Generator
|
LEFT SIDE DIESEL ENGINE
|
S164
|
In Trough on Right Rear Side of Engine Compartment
|
RIGHT SIDE ENGINE COMPARTMENT 3.7L, DIESEL ENGINE COMPARTMENT
|
S166
|
Near T/O for G100
|
RIGHT SIDE ENGINE COMPARTMENT 3.7L
|
S167
|
Rear Engine Compartment
|
DIESEL ENGINE COMPARTMENT
|
S168 (3.7L)
|
Near T/O for Fuel Injector No.6
|
RIGHT SIDE ENGINE 3.7L
|
S169 (3.7L)
|
Near T/O for Oxygen Sensor 1/1 Upstream
|
N/S
|
S169 (Diesel)
|
Near T/O for Generator
|
LEFT SIDE DIESEL ENGINE
|
S172
|
In T/O for VLP Assembly
|
LEFT SIDE TRANSMISSION 3.7L
|
S175
|
In Trough on Top of Engine
|
REAR DIESEL ENGINE, TOP DIESEL ENGINE
|
S178
|
Near T/O for Oxygen Sensor 2/2 Downstream
|
LEFT SIDE TRANSMISSION 3.7L, RIGHT SIDE TRANSMISSION 3.7L, MANUAL TRANSMISSION 3.7L
|
S185
|
Near T/O for Fuel Pressure Solenoid
|
LEFT SIDE DIESEL ENGINE
|
S194
|
In T/O for Junction Block C3
|
ENGINE TO INSTRUMENT PANEL
|
S200
|
Near T/O for C201
|
N/S
|
S201
|
Near T/O for Left Instrument Panel Lamp
|
N/S
|
S202 (LHD)
|
Left Side Body Near G301
|
LEFT FRONT BODY LHD
|
S202 (RHD)
|
Floor Near Right Front Door
|
RIGHT FRONT BODY RHD
|
S203 (RHD)
|
Near T/O for Blend Door Actuator
|
N/S
|
S204
|
Near T/O for Data Link Connector
|
N/S
|
S205
|
In T/O for C100
|
ENGINE TO INSTRUMENT PANEL
|
S206
|
Near T/O for Multifunction Switch C2
|
N/S
|
S207
|
In T/O for C100
|
N/S
|
S209
|
Instrument Panel
|
N/S
|
S210
|
In T/O for Steering Angle Sensor
|
N/S
|
S211
|
Fuel Tank Harness Near NVLD T/O
|
FUEL TANK
|
S212
|
Near T/O for Diagnostic Junction Port
|
N/S
|
S214
|
Near T/O for Airbag Control Module C1 (ORC C1)
|
N/S
|
S215
|
Near T/O for Multifunction Switch C2
|
N/S
|
S216
|
In T/O for Instrument Cluster
|
N/S
|
S217
|
Near T/O for Multifunction Switch C2
|
N/S
|
S218
|
Near T/O for Multifunction Switch C2
|
N/S
|
S219
|
In T/O for Junction Block C3
|
N/S
|
S220
|
In T/O for Junction Block C3
|
N/S
|
S221 (RHD)
|
In T/O for IP Side of C120
|
N/S
|
S222
|
In T/O for Steering Angle Sensor
|
N/S
|
S225 (LHD)
|
Near T/O for G203
|
N/S
|
S225 (RHD)
|
In T/O for C100
|
ENGINE TO INSTRUMENT PANEL
|
S226
|
Instrument Panel
|
N/S
|
S227 (RHD)
|
In T/O for C120 (IP Side)
|
N/S
|
S229
|
Instrument Panel
|
N/S
|
S231
|
Near T/O for Park Brake Switch
|
RIGHT FRONT BODY RHD
|
S235
|
Instrument Panel
|
N/S
|
S236
|
In Steering Wheel
|
STEERING WHEEL
|
S237
|
In Steering Wheel
|
STEERING WHEEL
|
S240 (RHD)
|
Near T/O for Blend Door Actuaror
|
N/S
|
S300 (LHD)
|
Near T/O for C309
|
LEFT REAR BODY
|
S300 (RHD)
|
Near T/O for C310
|
REAR BODY
|
S301
|
In T/O For Radio C1
|
N/S
|
S302
|
Near T/O for C307
|
LEFT REAR BODY
|
S303 (LHD)
|
Near T/O for Shifter Assembly
|
RIGHT FRONT BODY LHD
|
S303 (RHD)
|
Floor Near Right Front Door
|
RIGHT FRONT BODY RHD
|
S304
|
Near T/O for License Lamp
|
REAR BODY
|
S305
|
Driver Door Harness
|
N/S
|
S306 (LHD)
|
Near T/O for Junction Block C2
|
TRAILER TOW CONNECTORS
|
S306 (RHD)
|
In T/O for C319
|
REAR BODY
|
S307
|
Passenger Door Harness
|
N/S
|
S308 (LHD)
|
In T/O for Rear Power Outlet
|
N/S
|
S308 (RHD)
|
Near T/O for Rear Power Outlet
|
N/S
|
S309
|
Passenger Door Harness
|
N/S
|
S310
|
Near T/O for C303
|
REAR BODY
|
S311
|
In T/O for Radio C1
|
N/S
|
S312
|
Near T/O for G330
|
REAR BODY
|
S313
|
In T/O for Trailer Tow Relays
|
TRAILER TOW CONNECTORS
|
S314
|
In T/O for Trailer Tow Relays
|
TRAILER TOW CONNECTORS
|
S315
|
Left Steering Wheel
|
STEERING WHEEL
|
S316
|
In Steering Wheel
|
STEERING WHEEL
|
S317
|
Right Steering Wheel
|
STEERING WHEEL
|
S318 (LHD)
|
Near T/O for Left Instrument Panel Speaker
|
INSTRUMENT PANEL LHD, LEFT FRONT BODY LHD
|
S318 (RHD)
|
Floor Near Right Front Door
|
RIGHT FRONT BODY RHD
|
S319 (LHD)
|
Near T/O for C201
|
INSTRUMENT PANEL LHD
|
S319 (RHD)
|
Near T/O for Left Instrument Panel
|
INSTRUMENT PANEL RHD
|
S320
|
Driver Door Harness
|
N/S
|
S321
|
Driver Door Harness
|
N/S
|
S322
|
Near T/O for Left Instrument Panel
|
INSTRUMENT PANEL LHD, INSTRUMENT PANEL RHD
|
S323 (LHD)
|
Near T/O for Left Instrument Panel
|
INSTRUMENT PANEL LHD
|
S323 (RHD)
|
Near T/O for Right Instrument Panel Speaker
|
INSTRUMENT PANEL RHD
|
S324 (Premium)
|
Near T/O for Right Instrument Panel Speaker
|
INSTRUMENT PANEL LHD, INSTRUMENT PANEL RHD
|
S325
|
Passenger Door Harness
|
N/S
|
S326
|
Near T/O for Heated Seat Module
|
N/S
|
S327
|
Near T/O for Left Heated Seat Assembly
|
N/S
|
S328
|
In T/O for Heated Seat Module
|
N/S
|
S329
|
Near T/O for Right Heated Seat Switch
|
N/S
|
S331
|
Under Carpet Near Driver Seat Right Front Fastner
|
RIGHT FRONT BODY LHD, RIGHT FRONT BODY RHD
|
S332
|
Under Carpet Near Driver Seat Right Front Fastner
|
RIGHT FRONT BODY LHD, RIGHT FRONT BODY RHD
|
S333
|
Near Driver Seat Belt Tensioner
|
LEFT FRONT BODY LHD
|
S334
|
Below Right B-Pillar
|
RIGHT FRONT BODY LHD, RIGHT FRONT BODY RHD
|
S336 (LHD)
|
Near T/O for Left Instrument Panel
|
INSTRUMENT PANEL LHD
|
S336 (RHD)
|
Near T/O for Right Instrument Panel Speaker
|

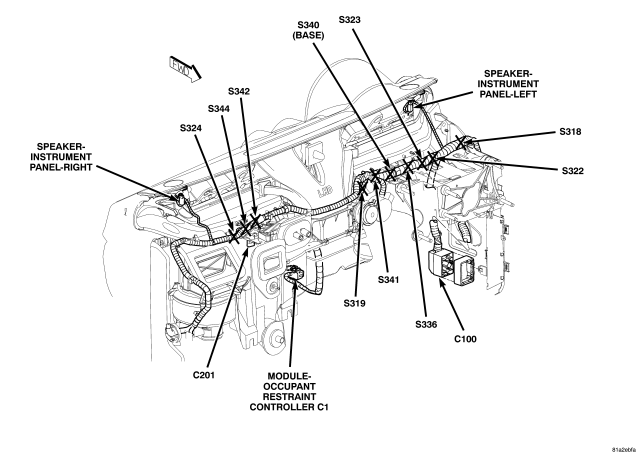

INSTRUMENT PANEL RHD
|
S340 (Base)
|
Near T/O for C201
|
INSTRUMENT PANEL LHD
|
S341
|
Near T/O for C201
|
INSTRUMENT PANEL LHD, FRONT DOORS
|
S342 (Base)
|
Near T/O for Right Instrument Panel Speaker
|
INSTRUMENT PANEL LHD
|
S344 (Base)
|
Near T/O for Right Instrument Panel Speaker
|
INSTRUMENT PANEL LHD
|
S345
|

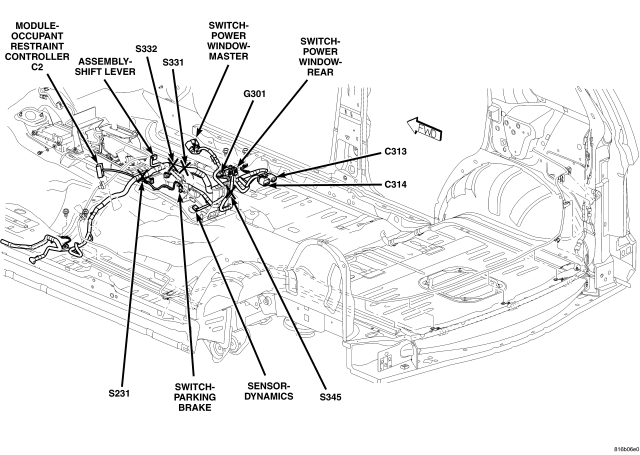

Center Console
|
RIGHT FRONT BODY LHD, RIGHT FRONT BODY RHD
|
S346
|
In T/O for Trailer Tow Relays
|
TRAILER TOW CONNECTORS
|
S347
|
Near T/O for Right Tail/Stop Lamp
|
REAR BODY
|
S348
|
Near T/O for Right Tail/Stop Lamp
|
REAR BODY
|
S349
|
Near T/O for License Lamp
|
REAR BODY
|
S350
|
Rear Fascia Harness
|
N/S
|
S352
|
In T/O for Rear Window Defogger
|
TAILGATE
|
S353
|
In T/O for Radio C2
|
N/S
|
S354
|
In T/O for CD Changer
|
CD CHANGER AND CABLE
|
S355
|
In T/O for Radio C2
|
N/S
|
S356
|
Near T/O for Center High Mounted Stop Lamp
|
TAILGATE
|
S358
|
Center Instrument Panel
|
INSTRUMENT PANEL RHD
|
S360
|
Near T/O for Left Power Mirror
|
FRONT DOORS
|
S361
|
Near T/O for Left Power Mirror
|
FRONT DOORS
|
S363
|
Left Side Lightbar
|
ROOF LIGHT BAR
|
S365
|
Driver Door Harness
|
N/S
|
S366
|
Driver Door Harness
|
N/S
|
S369
|
Left Side Lightbar
|
ROOF LIGHT BAR
|
S370
|
Near T/O for Right Power Mirror
|
FRONT DOORS
|
S371
|
Near T/O for Right Door Lock Switch
|
FRONT DOORS
|
S372
|
Lower Front Engine Compartment
|
ENGINE COMPARTMENT
|
S373
|
Right Front Lower Engine Compartment
|
ENGINE COMPARTMENT
|
S377 (RHD)
|
Near T/O for Right Door Lock Switch
|
FRONT DOORS
|
S378 (RHD)
|
Near T/O for Right Front Power Window Motor
|
FRONT DOORS
|
S380
|
Near T/O for Rear Wiper Motor
|
TAILGATE
|
S381
|
Near T/O for Tailgate Cylinder Lock Switch
|
TAILGATE
|
S382
|
Near T/O for License Lamp
|
TAILGATE
|
S390
|
Near T/O for Intrusion Sensor
|
N/S
|
S391
|
Near T/O for Left Visor/Vanity Lamp
|
N/S
|
S392
|
Near T/O for Left Visor/Vanity Lamp
|
N/S
|
S393
|
Near T/O for Intrusion Sensor
|
N/S
|
S394
|
Near T/O for Rear Map/Reading Lamp
|
N/S
|
S395
|
Neat T/O for Rear Map/Reading Lamp
|
N/S
|
