REMOVAL

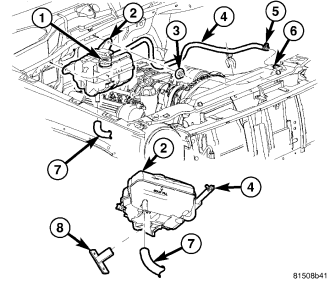

PRESSURE SYSTEM
1. Remove pressure cap from bottle .
2. Siphon coolant from pressure bottle (2) into a contaminant free container.
3. Disconnect coolant bottle to radiator hose at coolant bottle.
4. Disconnect lower hose at coolant bottle.
5. Remove mounting nuts.
6. Remove coolant bottle from bracket.

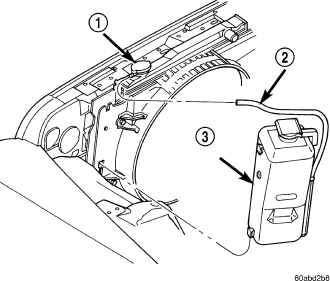

NON-PRESSURE SYSTEM
1. Remove hose (2) from radiator.
2. Remove recovery container mounting bolts.
3. Remove recovery container (3).
