DUCT-REAR FLOOR HEAT
REMOVAL

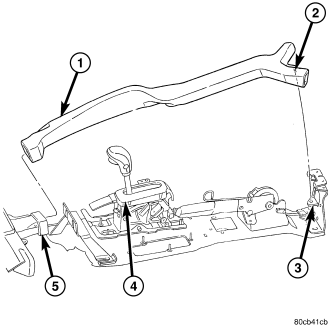

NOTE: Typical rear floor heat duct shown.
1. Remove the floor console (refer to 23 - BODY/INTERIOR/CONSOLE-FLOOR - REMOVAL).
2. Remove the push-pin retainer (2) that secures the rear floor heat duct (1) to the floor console bracket (3) located behind the gear shift lever assembly (4).
3. Disconnect the rear floor heat duct from the floor distribution duct (5).
4. Remove the rear floor heat duct from the vehicle.
INSTALLATION
NOTE: Typical rear floor heat duct shown.
1. Position the rear floor heat duct (1) into the vehicle.
2. Connect the rear floor heat duct to the floor distribution duct (5) located in front of the gear shift lever assembly (4).
3. Install the push-pin retainer (2) that secures the rear floor heat duct to the floor console bracket (3).
4. Install the floor console (refer to 23 - BODY/INTERIOR/FLOOR CONSOLE - INSTALLATION).
