CHECK STRAP
REMOVAL

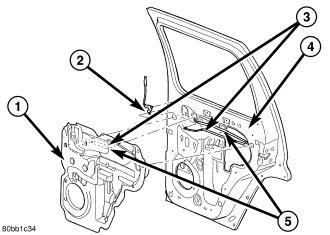

1. Remove the waterdam (1). (Refer to 23 - BODY/DOORS - REAR/WATERDAM - REMOVAL)
2. Remove screws attaching door check to B-pillar.

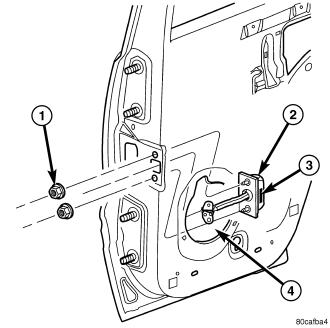

3. Remove the two nuts (1) and remove the door check strap (2).
INSTALLATION
NOTE: Make sure the proper orientation of the check strap is maintained using the part number printed on the side. The part number should face inboard toward the interior of the vehicle.
1. Install the check strap (2) through the speaker hole (4).
2. Install the nuts (1) and tighten to 12 N·m (9 ft. lbs.).
3. Connect the strap to the B-pillar and tighten the bolts to 12 N·m (9 ft. lbs.).
4. Install the waterdam (1). (Refer to 23 - BODY/DOORS - REAR/WATERDAM - INSTALLATION)
