DOOR GLASS
REMOVAL
1. Position the glass (1) as shown.
2. Remove the waterdam, (Refer to 23 - BODY/DOORS - REAR/WATERDAM - REMOVAL).
3. Depress the lock tabs (2) and release the glass (3) from the regulator (1) lift plate.
4. Position the glass into the bottom of the door.
5. Remove the glass division bar bolt (2).
6. Twist the division bar towards the inside of the door and disengage the door glass.
7. Remove the glass from the window opening.
INSTALLATION

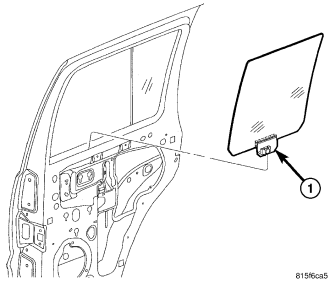

1. Install the glass (1) through the window opening.
2. Position the front of the glass into the glass run channel and as low as possible in the door.

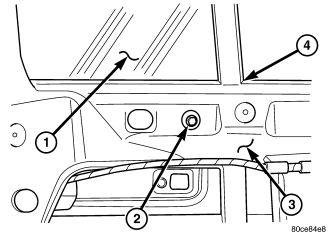

3. Twist the glass division bar (4) towards the inside of the door and position the door glass into the rear run channel.
4. Seat the division bar firmly up and into the fixed door glass (1), making sure the seal is well engaged into the door frame with no gap inside the car and no folded lip on the C-pillar.
5. Remove the glass support and slide glass (3) down into the door and connect the mounting hole (1) to the regulator lift plates (2).
6. Raise the glass into the closed position and install the division bar bolt (2).
7. Tighten the bolt to 9 N·m (80 in. lbs.).
8. Install the waterdam, (Refer to 23 - BODY/DOORS - REAR/WATERDAM - INSTALLATION).
