EXTERIOR HANDLE
REMOVAL
1. Remove the waterdam as necessary to gain access to the handle. (Refer to 23 - BODY/DOORS - REAR/WATERDAM - REMOVAL)
2. Disconnect the handle rod at the handle.

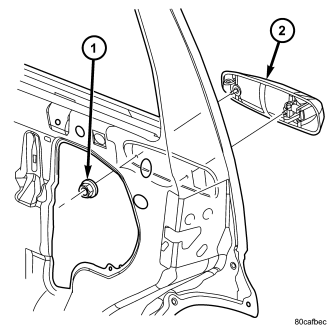

3. Remove the nuts (1) and remove the handle (2).
INSTALLATION
1. Install the handle (2).
2. Install the nuts (1) and tighten to 6 N·m (55 in. lbs.).
3. Connect the handle rod at the handle.
4. Install the waterdam (1). (Refer to 23 - BODY/DOORS - REAR/WATERDAM - INSTALLATION)
