LATCH
REMOVAL
1. Remove the waterdam (1) as necessary to gain access to the latch. (Refer to 23 - BODY/DOORS - REAR/WATERDAM - REMOVAL)
2. Disconnect the lock knob rod at the bell crank and the outside handle rod at the outside door handle.

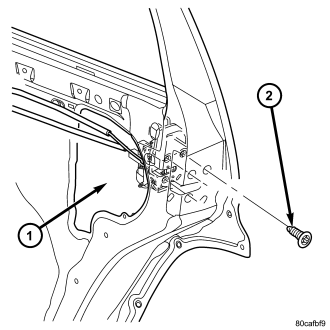

3. Remove the screws (2) and remove the latch assembly (1).
4. Disconnect the electrical connectors.
INSTALLATION
1. Connect the latch electrical connectors.
2. Install the latch assembly (1) into the door and install the screws (2).
3. Tighten the latch screws to 11 N·m (95 in. lbs.).
4. Connect the outside door handle rod at the outside door handle.
5. Connect the lock knob rod at the bell crank and the inside handle rod when installing the trim panel.
6. Install the waterdam (1). (Refer to 23 - BODY/DOORS - REAR/WATERDAM - INSTALLATION)
7. Adjust the latch as needed. (Refer to 23 - BODY/DOORS - REAR/LATCH - ADJUSTMENTS)
