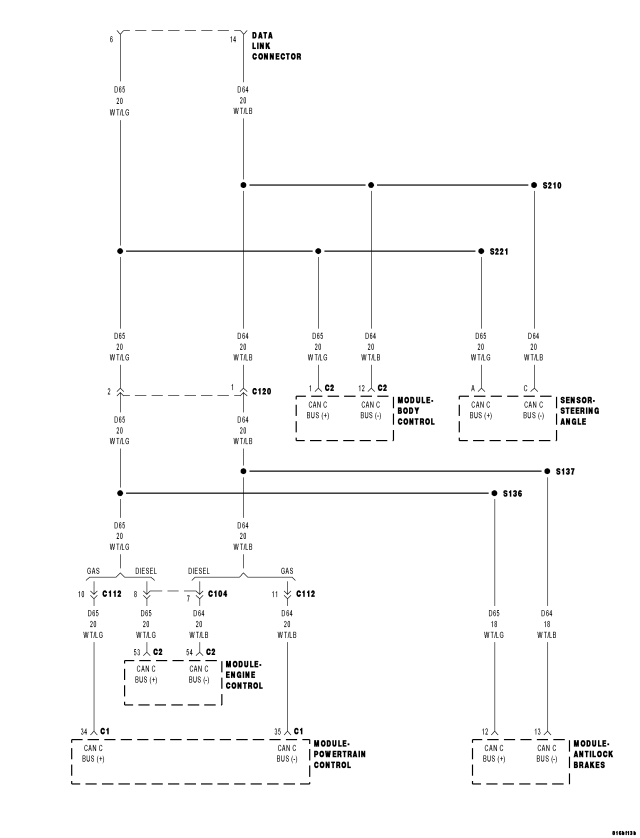

U0001-CAN C BUS CIRCUIT
For a complete wiring diagram Refer to Section 8W.
- When Monitored:
With the ignition on.
- Set Condition:
A module detects a short in either CAN C Bus circuit.
Perform the CAN C Bus Communication Failure diagnostic test procedure. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING).
