*NO RESPONSE FROM ABS (ANTILOCK BRAKE MODULE)

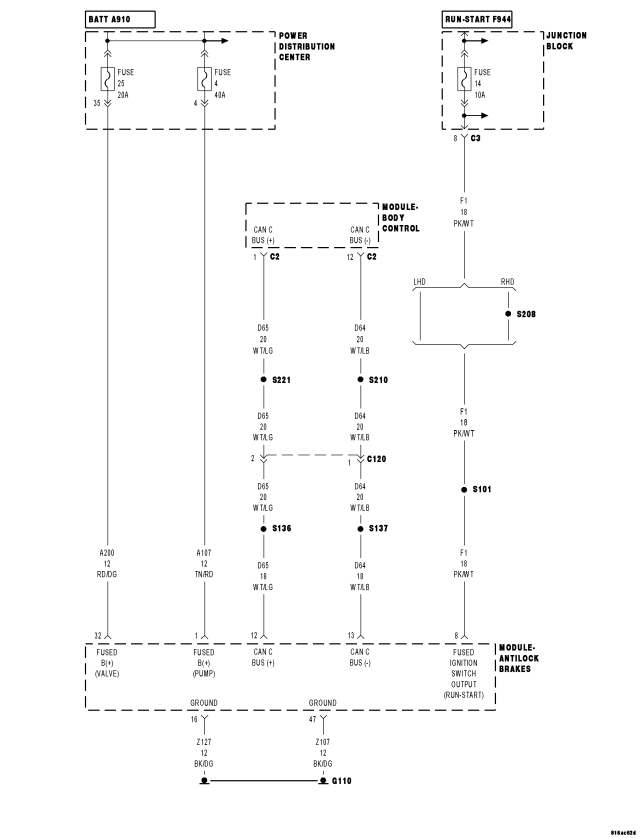

For a complete wiring diagram Refer to Section 8W.
| Possible Causes |
| (A107) (A200) FUSED B(+) CIRCUIT OPEN OR SHORTED |
| (Z107) (Z127) GROUND CIRCUIT OPEN |
| (F1) FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN OR SHORTED |
| (D65) CAN C BUS (+) CIRCUIT OPEN |
| (D64) CAN C BUS (-) CIRCUIT OPEN |
| ANTILOCK BRAKE MODULE |
Diagnostic Test
1. TEST FOR INTERMITTENT CONDITIONTurn the ignition on.
NOTE: Ensure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.
With the scan tool, select ECU view.
NOTE: A red X will be next to the module that is not communicating, indicating that the module is not active on the Bus network. A green check indicates that the module is active on the Bus network.
Does the scan tool display a red X next to the module?
Yes
- Go To 2
No
- The no response condition is not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness connectors for broken, bent, pushed out, and corroded terminals.
2. (A107) (A200) FUSED B(+) CIRCUIT OPEN OR SHORTED
Turn the ignition off.
Disconnect the Antilock Brake Module harness connector.
Using a 12-volt test light connected to ground, check each (A107) and (A200) Fused B(+) circuit.
Does the test light illuminate brightly for each circuit?
Yes
- Go To 3
No
- Repair the (A107) or (A200) Fused B(+) circuit for an open or short.
- Perform ABS VERIFICATION TEST - VER 1.
3. (Z107) (Z127) GROUND CIRCUIT OPEN
Using a 12-volt test light connected to 12-volts, check each (Z107) and (Z127) ground circuit.
Does the test light illuminate brightly for each circuit?
Yes
- Go To 4
No
- Repair the (Z107) or (Z127) ground circuit for an open.
- Perform ABS VERIFICATION TEST - VER 1.
4. (F1) FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN OR SHORTED
Turn the ignition on.
Using a 12-volt test light connected to ground, check the (F1) Fused Ignition Switch Output circuit.
Does the test light illuminate brightly?
Yes
- Go To 5
No
- Repair the (F1) Fused Ignition Switch Output circuit for an open or short.
- Perform ABS VERIFICATION TEST - VER 1.
5. (D65) CAN C BUS (+) CIRCUIT OPEN
Turn the ignition off.
Disconnect the scan tool from the DLC connector.

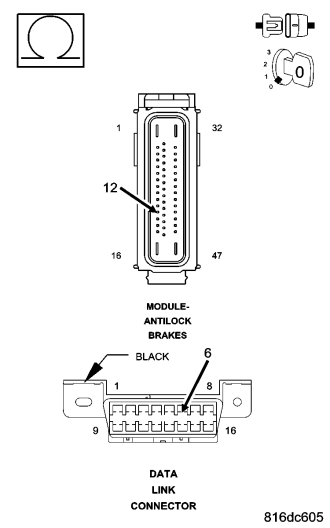

Measure the resistance of the (D65) CAN C Bus (+) circuit between the DLC connector and the Antilock Brake Module connector.
Is resistance below 5.0 ohms?
Yes
- Go To 6
No
- Repair the (D65) CAN C Bus (+) circuit for an open.
- Perform ABS VERIFICATION TEST - VER 1.
6. (D64) CAN C BUS (-) CIRCUIT OPEN

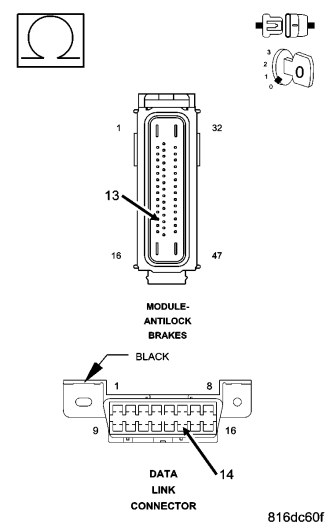

Measure the resistance of the (D64) CAN C Bus (-) circuit between the DLC connector and the Antilock Brake Module connector.
Is resistance below 5.0 ohms?
Yes
- Replace the Antilock Brake Module in accordance with the service information.
- Perform ABS VERIFICATION TEST - VER 1.
No
- Repair the (D64) CAN C Bus (-) circuit for an open.
- Perform ABS VERIFICATION TEST - VER 1.
