JET-OIL
DESCRIPTION
There are four oil jets (2) installed in the engine block. These oil jets are used to cool and lubricate the piston assemblies.
REMOVAL
CAUTION: Use caution when removing and installing oil jets. Damage to oil jet nozzle could cause severe engine damage. Care must be taken not to damage the crankshaft tone ring when removing cylinder number four oil jet.
NOTE: Remove oil jets before removing piston, crankshaft liners.
1. Disconnect negative battery cable.
2. Raise vehicle on hoist.
3. Remove oil pan (Refer to 9 - ENGINE/LUBRICATION/OIL PAN - REMOVAL) .

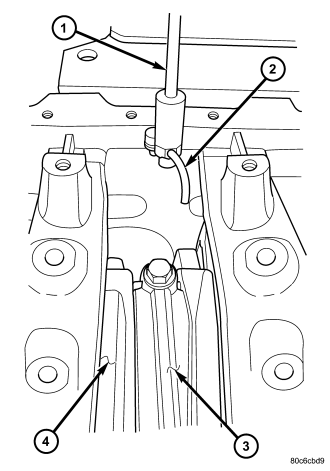

NOTE: When removing oil jet from cylinder number four, care must be taken not to damage the crankshaft tone ring.
4. Using special tool VM.1060 to hold oil jet. Remove oil jet retaining bolt and remove oil jet from engine block .
INSTALLATION
CAUTION: Use caution when removing and installing oil jets. Damage to oil jet nozzle could cause severe engine damage. Care must be taken not to damage the crankshaft tone ring when installing cylinder number four oil jet.
NOTE: Carefully install the oil jets After assembling the engine liners, crankshaft and pistons.
1. Lubricate o-ring on oil jet.

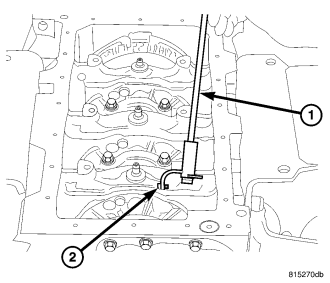

2. Using special tool VM.1060 (1), install oil jet (2) in engine block
3. Install oil jet retaining bolt. Torque bolt to 10.8N·m.(96 in.lbs.).
4. Install oil pan (Refer to 9 - ENGINE/LUBRICATION/OIL PAN - INSTALLATION) .
5. Refill engine oil to proper level.
6. Connect negative battery cable.
