MOUNT-LEFT ENGINE
REMOVAL
1. Disconnect the negative battery cable.
2. Remove the cooling fan and fan shroud (Refer to 7 - COOLING/ENGINE/RADIATOR FAN - REMOVAL).
3. Raise and support the vehicle.

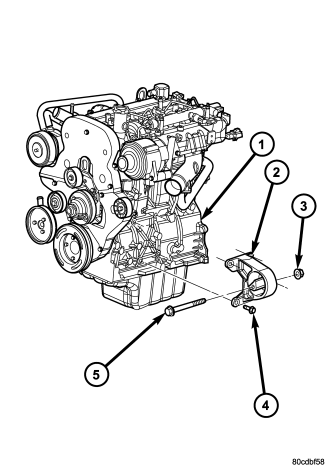

4. Loosen both engine mount through bolts (5).
NOTE: Care must be taken not to damage any wiring above the transmission when raising the engine.
5. Using a suitable jack, raise and support the engine.
6. Remove the engine mount retaining bolts (5) and remove the mount (2).
INSTALLATION
1. Position the engine mount and hand tighten the retaining bolts.
2. Lower the engine mount (2) and through bolts (5) into the engine mount support.
3. Lower the vehicle.
4. Install the left upper engine mount bolt.Tighten bolt to 54 N·m (40 lbs. ft.).
5. Raise and support the vehicle.
6. Tighten remaining mount to engine bolts (4) to 54 N·m (40 lbs. ft.).
7. Tighten engine mount through bolts (5) to 54 N·m (40 lbs. ft.).
8. Lower the vehicle.
9. Install the cooling fan and shroud (Refer to 7 - COOLING/ENGINE/RADIATOR FAN - INSTALLATION).
10. Connect the negative battery cable.
