RIGHT ENGINE MOUNT
REMOVAL
1. Disconnect the negative battery cable.
2. Remove the cooling fan and shroud.
3. Loosen the upper engine mount fastener at the engine mount bracket.
4. Raise and support the vehicle.
5. Loosen the lower engine mount fastener.
NOTE: Care must be taken not to damage the wiring harnesses above the transmission when lifting the engine.
6. Using a suitable jack, raise and support the engine
7. Remove the engine mount bolts and engine mount.
INSTALLATION

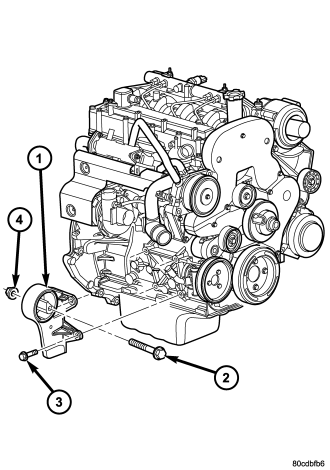

1. Position the engine mount and install the engine mount bolts. Tighten bolts to 54 N·m (40 lbs. ft.).
2. Lower the engine.
3. Tighten the engine mount (1) through bolts (2) to 54 N·m (40 lbs. ft.).
4. Lower the vehicle.
5. Install the cooling fan and shroud (Refer to 7 - COOLING/ENGINE/RADIATOR FAN - INSTALLATION).
6. Connect the negative battery cable.
