SEAL-CRANKSHAFT OIL - FRONT
REMOVAL
1. Disconnect negative battery cable.
2. Remove cooling fan and fan drive viscous clutch assembly (Refer to 7 - COOLING/ENGINE/FAN DRIVE VISCOUS CLUTCH - REMOVAL) .
3. Remove accessory drive belt (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL) .
4. Remove cooling fan support (Refer to 7 - COOLING/ENGINE/RADIATOR FAN - REMOVAL) .
5. Remove vibration damper/crankshaft pulley (Refer to 9 - ENGINE/ENGINE BLOCK/VIBRATION DAMPER - REMOVAL) .
6. Remove outer timing belt cover (Refer to 9 - ENGINE/VALVE TIMING/TIMING BELT / CHAIN COVER(S) - REMOVAL) .
7. Remove timing belt (Refer to 9 - ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - REMOVAL) .
8. Remove timing belt inner cover (Refer to 9 - ENGINE/VALVE TIMING/TIMING BELT / CHAIN COVER(S) - REMOVAL) .
NOTE: Crankshaft hub retaining bolt has left hand thread.

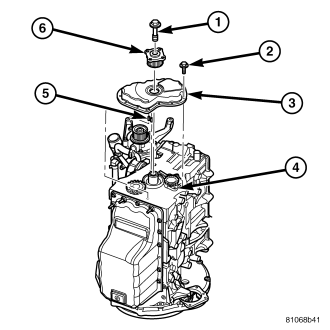

9. Remove crankshaft hub (6).
10. Remove front engine cover (Refer to 9 - ENGINE/ENGINE BLOCK/ENGINE COVER - REMOVAL) .
11. With front cover (3) on work bench, pry out old seal.
INSTALLATION
CAUTION: Do Not use a hammer to install the crankshaft oil seal.
NOTE: To prevent potential oil leaks, DO NOT touch the front crankshaft inner seal. Always handle the seal from the outer diameter.
WARNING: The front cover seal lip faces AWAY from the lube. The seal is installed into the cover with the words “LATO ARIA” (Air Side) facing out.
1. Clean engine block and front engine cover sealing surfaces.

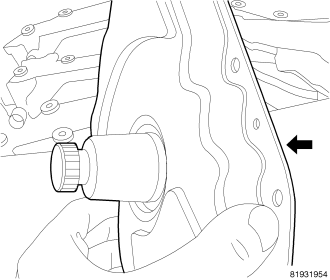

2. Install crankshaft oil seal on 9937–1.
3. Position 9937–1 and press in new seal into front engine cover.
4. Install front engine cover on engine (Refer to 9 - ENGINE/ENGINE BLOCK/ENGINE COVER - INSTALLATION) .
5. Install crankshaft hub and retaining bolt. Torque bolt to 304N·m.
6. Install timing belt inner cover (Refer to 9 - ENGINE/VALVE TIMING/TIMING BELT / CHAIN COVER(S) - INSTALLATION) .
7. Install timing belt (Refer to 9 - ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - INSTALLATION) .
8. Install timing belt outer cover (Refer to 9 - ENGINE/VALVE TIMING/TIMING BELT / CHAIN COVER(S) - INSTALLATION) .
9. Install vibration damper/crankshaft pulley (Refer to 9 - ENGINE/ENGINE BLOCK/VIBRATION DAMPER - INSTALLATION) .
10. Install cooling fan support (Refer to 7 - COOLING/ENGINE/RADIATOR FAN - REMOVAL) .
11. Install accessory drive belt (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION) .
12. Install cooling fan and fan drive viscous clutch assembly (Refer to 7 - COOLING/ENGINE/FAN DRIVE VISCOUS CLUTCH - INSTALLATION) .
13. Connect negative battery cable.
