ELEMENT - AIR CLEANER
REMOVAL - 3.7L
Housing removal is not necessary for element (filter) replacement.

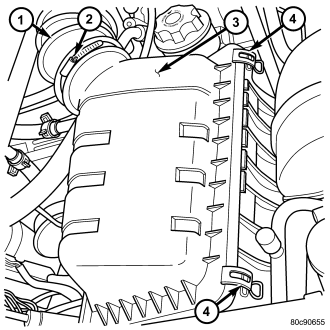

1. Pry up spring clips (4) from front of housing cover (spring clips retain cover to housing).
2. Release housing cover from 4 locating tabs located on rear of housing, and remove cover.
3. Remove air cleaner element (filter) from housing.
4. Clean inside of housing before replacing element.
INSTALLATION - 3.7L
1. Install element into housing.
2. Position housing cover into housing locating tabs.
3. Pry up spring clips and lock cover to housing.
If any air filter, air resonator, air intake tubes or air filter housing clamps had been loosened or removed, tighten them to 5 N·m (40 in. lbs.) torque.
