MOUNT-REAR
REMOVAL
NOTE: A resilient rubber cushion supports the transmission at the rear between the transmission extension housing and the rear support crossmember or skid plate.
1. Disconnect negative cable from battery.
2. Raise the vehicle and support the transmission.
3. Remove the nuts holding the support cushion to the crossmember. Remove the crossmember.
MANUAL TRANSMISSION

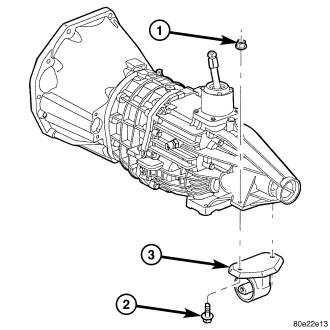

- Remove the support cushion nuts and remove the cushion.
- Remove the transmission support bracket bolts and remove the bracket from the transmission.
AUTOMATIC TRANSMISSION

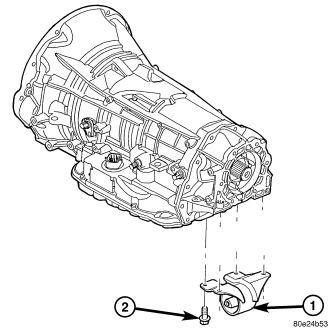

- Remove the support cushion bolts and remove the cushion and the support bracket from the transmission (4WD) or from the adaptor bracket (2WD).
- On 2WD vehicles, remove the bolts holding the transmission support adaptor bracket to the transmission. Remove the adaptor bracket.
INSTALLATION
MANUAL TRANSMISSION:

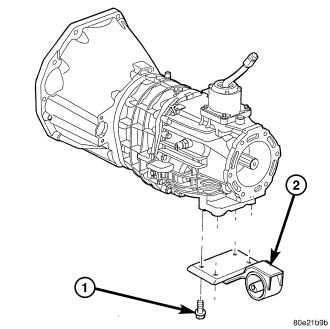

1. Install the transmission mount (1) to the transmissionor . Install the bolts (2) and tighten.
2. Position the crossmember in the vehicle. Install the crossmember to mount through bolt and nut.
3. Install crossmember-to-sill bolts and tighten to 41 N·m (30 ft. lbs.) torque.
4. Remove the transmission support.
5. Lower the vehicle.
6. Connect negative cable to battery.
AUTOMATIC TRANSMISSION:

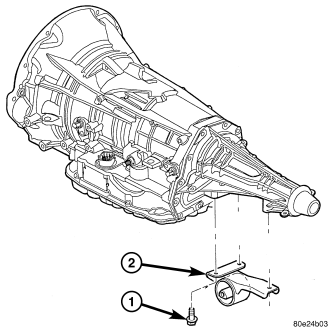

1. Install the transmission mount to transmission and. Install the bolts.
2. Position the crossmember in the vehicle. Install the crossmember to mount through bolt and nut.
3. Remove the transmission support.
4. Lower the vehicle.
5. Connect negative cable to battery.
