PLATE-FLEX
REMOVAL
1. Remove the transmission.
2. Remove the bolts and flexplate.
INSTALLATION

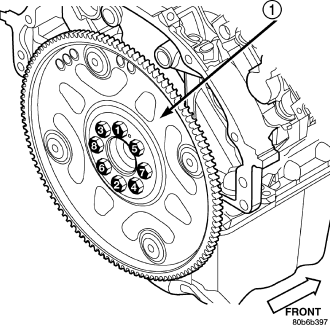

1. Position the flexplate (1) onto the crankshaft and install the bolts hand tight.
2. Tighten the flexplate retaining bolts to 95 N·m (70 ft. lbs.) in the sequence shown .
3. Install the transmission.
