P0092-FUEL QUANTITY SOLENOID SHORT CIRCUIT
For a complete wiring diagram Refer to Section 8W
- When Monitored:
With the ignition on and the ECM Fuel Quantity Solenoid command on.
- Set Condition:
The ECM detects excessive current in the Fuel Quantity Solenoid circuit.
| Possible Causes |
| FUEL QUANTITY SOLENOID CIRCUIT(S) SHORTED TO GROUND |
| FUEL QUANTITY SOLENOID CIRCUIT(S) SHORTED TO VOLTAGE |
| FUEL QUANTITY SOLENOID CIRCUIT(S) SHORTED TOGETHER |
| FUEL QUANTITY SOLENOID OPEN CIRCUIT(S) |
| FUEL QUANTITY SOLENOID |
| ENGINE CONTROL MODULE |
Diagnostic Test
1. VERIFY CURRENT DTCTurn the ignition on.
With the scan tool, erase ECM DTCs.
Perform several engine run cycles, turning the ignition off for at least 20 seconds between each engine run cycle.
With the scan tool, read the ECM DTCs.
Did this DTC set again?
Yes
- Go To2
No
- Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
2. CHECKING FOR OTHER DTCS
NOTE: An open ASD power supply to the ECM will cause multiple DTC's including this DTC to set.
NOTE: Check the ECM for other DTC's. If other DTC's are set with this DTC refer to the symptom list and perform the CHECKING THE ECM POWER AND GROUND CIRCUITS test before continuing.
If the ECM power and ground circuits are functioning properly continue with this test.
Yes
- Go To3
3. FUEL QUANTITY SOLENOID CIRCUIT(S) OPEN
Turn the ignition off.
Disconnect the ECM harness connectors.
Disconnect the Fuel Quantity Solenoid harness connector.

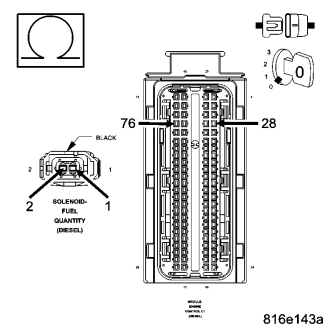

Measure the resistance of each of the Fuel Quantity Solenoid circuits between the ECM harness connector and the Fuel Quantity Solenoid harness connector.
Is the resistance below 10.0 ohms for each measurement?
Yes
- Go To4
No
- Repair the circuit(s) that measured above 10.0 ohms for an open.
- Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
4. FUEL QUANTITY SOLENOID
Connect the Engine Control Module (ECM) harness connectors.
Turn the ignition on.
With the scan tool, erase ECM DTCs.
Monitor the scan tool for ECM DTCs.
NOTE: The scan tool should display P0090 FUEL QUANTITY SOLENOID OPEN CIRCUIT.
Turn the ignition off.
Connect a jumper wire between cavity 1 and cavity 2 of the Fuel Quantity Solenoid harness connector.
Turn the ignition on.
With the scan tool, erase ECM DTCs.
Monitor the scan tool for ECM DTCs.
NOTE: The scan tool should display P0092-FUEL QUANTITY SOLENOID SHORT CIRCUIT.
Does the scan tool display the appropriate DTC for each condition?
Yes
- Replace the Fuel Quantity Solenoid in accordance with the Service Information.
- Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No
- Replace and program the Engine Control Module in accordance with the Service Information.
- Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
