P0110-INTAKE AIR TEMP SENSOR SIGNAL VOLTAGE TOO LOW

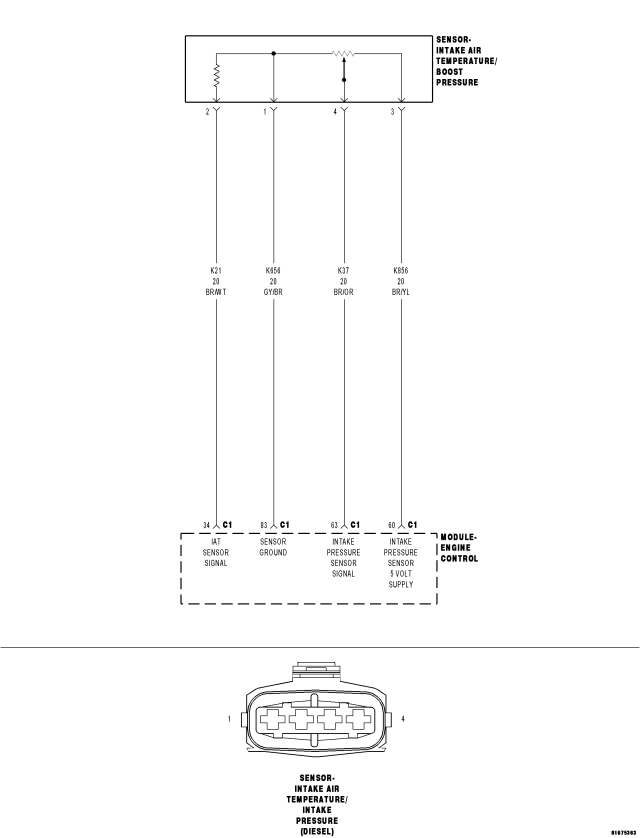

For a complete wiring diagram Refer to Section 8W
- When Monitored:
With the ignition on.
- Set Condition:
The Intake Air Temperature Sensor signal is below 0.45 volt.
| Possible Causes |
| INTERMITTENT CONDITION |
| INTAKE AIR TEMP SENSOR SIGNAL CIRCUIT SHORTED TO GROUND |
| INTAKE AIR TEMP SENSOR SIGNAL CIRCUIT SHORTED TO SENSOR GROUND |
| BOOST PRESSURE/IAT SENSOR |
| ENGINE CONTROL MODULE |
Diagnostic Test
1. CHECK FOR ACTIVE DTCNOTE: If the ECM detects and stores a DTC, the ECM also stores the engine/vehicle operating conditions under which the DTC was set. Some of these conditions are displayed on the scan tool at the same time the DTC is displayed.
NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may assist when checking for an active DTC.
Turn the ignition on.
With the scan tool, erase ECM DTCs.
Monitor the scan tool for ECM DTCs for at least 2 minutes.
Did this DTC set again?
Yes
- Go To2
No
- Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
2. BOOST PRESSURE/IAT SENSOR
Turn the ignition off.
Disconnect the Boost Pressure/IAT Sensor harness connector.
Turn the ignition on.
Monitor the scan tool for ECM DTCs for at least 2 minutes.
Does the scan tool display P0110 INTAKE AIR TEMP SIGNAL VOLTAGE TOO HIGH?
Yes
- Replace the Boost Pressure/Intake Air Temperature Sensor.
- Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No
- Go To3
3. INTAKE AIR TEMP SENSOR SIGNAL CIRCUIT SHORTED TO GROUND
Turn the ignition off.
Disconnect the ECM harness connectors.
Measure the resistance between ground and the Intake Air Temperature Sensor Signal circuit.
Is the resistance above 1000 ohms?
Yes
- Go To4
No
- Repair the Intake Air Temperature Sensor Signal circuit for a short to ground.
- Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
4. INTAKE AIR TEMP SENSOR SIGNAL CIRCUIT SHORTED TO SENSOR GROUND
Measure the resistance between the Intake Air Temperature Sensor Signal circuit and the Sensor Ground circuit.
Is the resistance above 1000 ohms?
Yes
- Go To5
No
- Repair the Intake Air Temperature Sensor Signal circuit for a short to the Sensor Ground circuit.
- Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
5. ENGINE CONTROL MODULE
If there are no possible causes remaining, view repair.
Repair
- Replace and program the Engine Control Module in accordance with the Service Information.
- Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
