P2314-IGNITION COIL 5 SECONDARY CIRCUIT- INSUFFICIENT IONIZATION

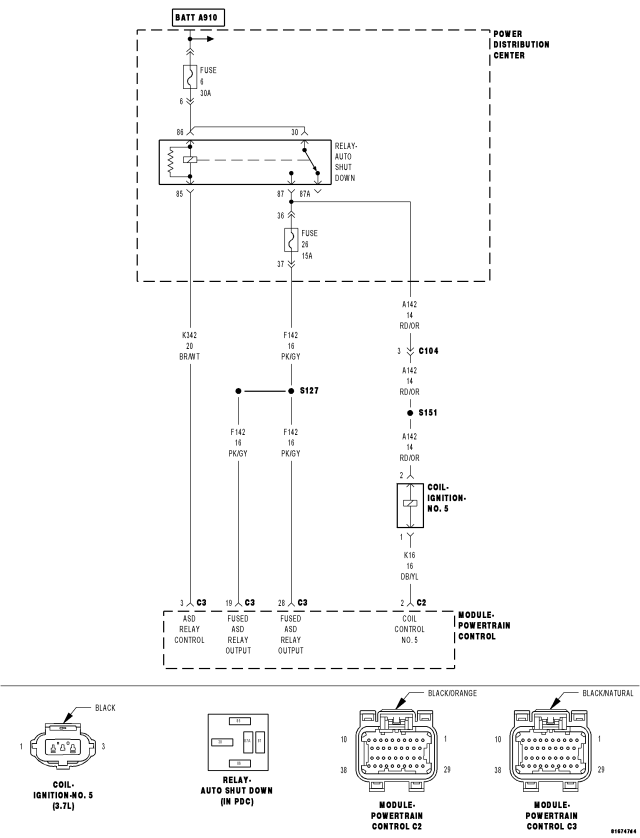

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
Engine running and battery voltage greater than 10 volts.
- Set Condition:
If PCM detects that the secondary ignition burn time is incorrect, to short, or not present, an error is detected. One Trip Fault. Three good trips to turn off the MIL.
| Possible Causes |
| (A142) ASD RELAY OUTPUT CIRCUIT |
| (K16) COIL CONTROL NO.5 CIRCUIT OPEN |
| (K16) COIL CONTROL NO.5 CIRCUIT SHORTED TO GROUND |
| COIL ON PLUG |
| PCM |
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
Diagnostic Test
1. ACTIVE DTCNOTE: Diagnose any ASD related DTC's before continuing.
Start the engine.
With a scan tool, select View DTCs.
NOTE: It may be necessary to drive the vehicle to meet the conditions to set this DTC, try to repeat the conditions in which the fault originally set by reviewing the Freeze Frame data.
Does the DTC become Active?
Yes
- Go To 2
No
- Refer to the INTERMITTENT CONDITION Diagnostic Procedure.
- Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
2. (A142) ASD RELAY OUTPUT CIRCUIT
Turn the ignition off.
Disconnect the Coil on Plug harness connector.
Ignition on, engine not running.
With a scan tool, actuate the ASD Relay.
Using a 12-volt test light connected to ground, probe the (A142) ASD Relay Output circuit in the Coil on Plug harness connector.
Does the test light illuminate brightly?
Yes
- Go To 3
No
- Repair the open or short to ground in the (A142) ASD Relay Output circuit between the PDC and Coil harness connector.
- Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
NOTE: Stop All Actuations.
3. COIL ON PLUG RESISTANCE
Turn the ignition off.
NOTE: The following resistance measurement should be taken at 70°-80° F.
Measure the resistance of the Coil on Plug.
3.7L Primary Ignition Coil resistance is 0.6 to 0.9 of an ohm at 77°F (25°C).
Is the resistance within the given specification for the Ignition Coil being tested?
Yes
- Go To 4
No
- Replace the Coil on plug.
- Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
4. IGNITION COIL
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in personal injury or death.
Using a 12-volt test light connected to a 12-volt source, probe the (K16) Coil Control No.5 circuit.
Crank the engine for 5 seconds while observing the test light.
What is the state of the test light while cranking the engine?
Brightly blinking.
- Replace the Coil on plug.
- Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
ON constantly.
- Go To 5
OFF constantly.
- Go To 6
5. (K16) COIL CONTROL NO.5 CIRCUIT SHORTED TO GROUND
Turn the ignition off.
Disconnect the C2 PCM harness connector.
Measure the resistance between ground and the (K16) Coil Control No.5 circuit in the Coil on Plug harness connector.
Is the resistance below 100 ohms?
Yes
- Repair the short to ground in the (K16) Coil Control No.5 circuit.
- Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
No
- Go To 7
6. (K16) COIL CONTROL NO.5 CIRCUIT OPEN
Turn the ignition off.
Disconnect the C2 PCM harness connector.
CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.

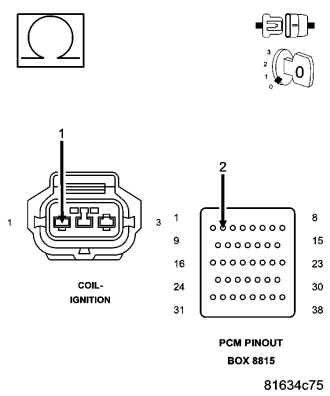

Measure the resistance of the (K16) Coil Control No.5 circuit from the Coil on Plug harness connector to the appropriate terminal of special tool #8815.
Is the resistance below 5.0 ohms?
Yes
- Go To 7
No
- Repair the open in the (K16) Coil Control No.5 circuit.
- Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
7. PCM
NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and Ground circuits.
Were there any problems found?
Yes
- Repair as necessary.
- Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
No
- Replace and program the Powertrain Control Module per Service Information.
- Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
