CANISTER-VAPOR
REMOVAL
The EVAP canister (7) is located near front of fuel tank and next to the left/rear spring perch. The ESIM (Emissions System Integrity Monitor) switch (10) is attached to the EVAP canister.
1. Raise vehicle.

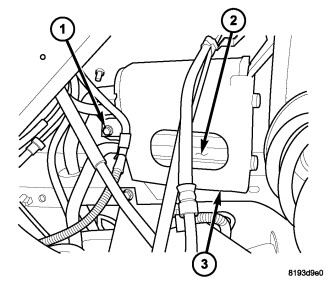

2. Disconnect vacuum hoses/lines (13) and (14) at EVAP canister and ESIM switch. Note location of lines before removal.
3. Disconnect electrical connector from ESIM switch (11).
4. Remove EVAP canister mounting bolt (1).

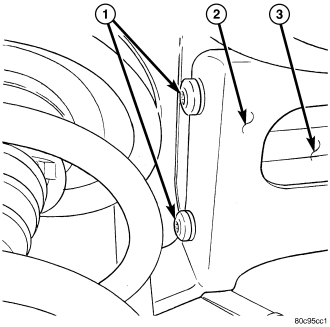

5. To remove EVAP canister from its mounting bracket, slide two canister mounting pins (1) from mounting bracket (2).
INSTALLATION
1. Slide two canister mounting pins (1) into mounting bracket (2).
2. Install canister-to-mounting bracket bolt (1).
3. Connect vacuum hoses/lines (13) and (14) to EVAP canister and ESIM switch.
4. Connect electrical connector to ESIM switch (11).
5. The vapor/vacuum lines and hoses must be firmly connected to the ESIM switch and EVAP canister. Also check the vapor/vacuum lines at the EVAP canister purge solenoid for damage or leaks. If a leak is present, a Diagnostic Trouble Code (DTC) may be set.
6. Lower vehicle.
