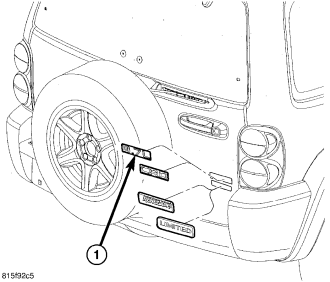

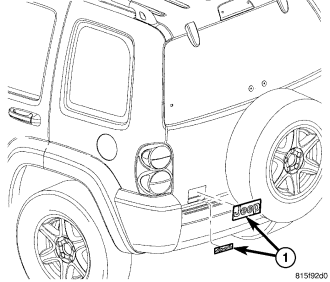

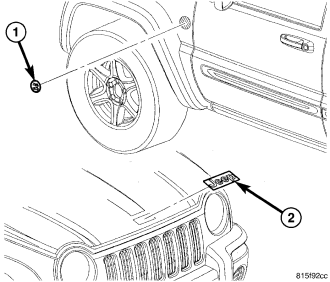

EXTERIOR NAME PLATES
REMOVAL
1. Apply a length of masking tape on the body, parallel to the top edge of the nameplate to use as a guide, if necessary.
2. Apply a length of masking tape on the body, parallel to the top edge of the nameplate to use as a guide, if necessary.
NOTE: Exterior nameplates are attached to body panels with adhesive tape.
3. Apply a length of masking tape on the body, parallel to the top edge of the nameplate to use as a guide, if necessary.
4. If temperature is below 21°C (70°F) warm emblem with a heat lamp or gun. Do not exceed 52°C (120°F) when heating emblem.
5. Using a trim stick C-4755 or equivalent, behind the emblem to separate the adhesive backing from the body.
6. Clean adhesive residue from body with MOPAR® Super Clean solvent or equivalent.
INSTALLATION
1. Remove protective cover from adhesive tape on back of emblem.
2. Position emblem properly on body.
3. Position emblem properly on body.
4. Position emblem properly on body.
5. Press emblem firmly to body with palm of hand.
6. If temperature is below 21°C (70°F) warm emblem with a heat lamp or gun to assure adhesion. Do not exceed 52°C (120°F) when heating emblem.
