FRONT WHEEL OPENING FLARE MOLDINGS
REMOVAL

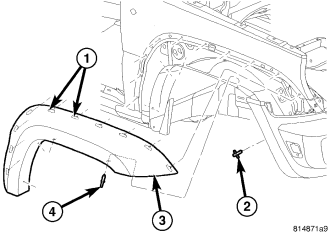

1. Remove the four rivets (4) connecting the flare to the splash shield.
2. Using a trim stick C-4755 or equivalent, separate the upper clips (1) attaching the molding (3) to the fender.
3. Remove the flare molding (3).
INSTALLATION
1. Position flare molding and seat clips into the fender.
2. Install four new rivets (4) securing the flare molding to the splash shield.
