FUEL FILL DOOR/HOUSING
REMOVAL
1. Remove the fuel cap.
2. Remove the three screws connecting the fuel door/housing to the filler neck.

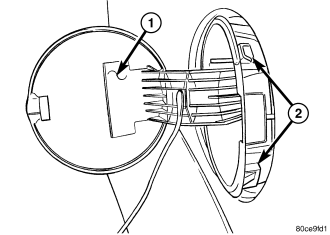

3. Reach in through the opening and depress the tabs (2) at the upper and bottom right of the door/housing.
4. Remove the fuel door/housing from the vehicle.
INSTALLATION
1. Position the fuel filler door/housing into the vehicle and fully seat the tabs (2).
2. Install the three screws.
3. Install the fuel cap.
