LUGGAGE RACK
REMOVAL

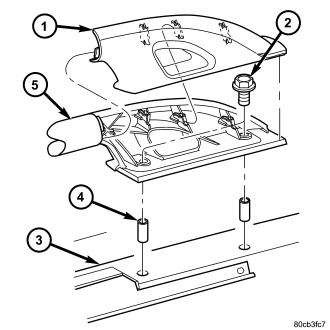

1. Using a trim stick C-4755 or equivalent, remove the roof rack covers.
2. Remove the bolts and remove the roof rack.
INSTALLATION

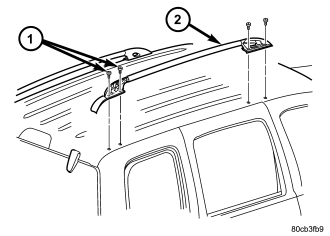

1. Install the roof rack (2) and install the bolts (1).
2. Tighten the bolts to 8 N·m (75 in. lbs.).
3. Snap on the roof rack covers (1).
