RADIATOR CROSSMEMBER
REMOVAL
1. Remove the grille. (Refer to 23 - BODY/EXTERIOR/GRILLE - REMOVAL)
2. Remove the hood latch. (Refer to 23 - BODY/HOOD/LATCH - REMOVAL)

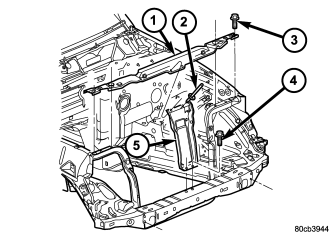

3. Remove the rivet securing the washer bottle to the crossmember.
4. Remove the rivets attaching the hood latch support to the crossmember.
5. Remove the bolts (4) and remove the hood latch support (5).
6. Remove the bolts (3) and remove the crossmember (1).
INSTALLATION
1. Install the crossmember (1) and install the bolts (3).
2. Tighten the bolts to 10 N·m (85 in. lbs.).
3. Install the hood latch support (5) and install the bolts (4).
4. Tighten the bolts to 10 N·m (85 in. lbs.).
5. Install new rivets (2) attaching the hood latch support to the crossmember.
6. Install the hood latch. (Refer to 23 - BODY/HOOD/LATCH - INSTALLATION)
7. Install the grille. (Refer to 23 - BODY/EXTERIOR/GRILLE - INSTALLATION)
8. Install a new rivet securing the washer bottle to the crossmember.
