REAR WHEEL OPENING FLARE MOLDINGS
REMOVAL
1. Raise and support the vehicle. (Refer to LUBRICATION & MAINTENANCE/HOISTING - STANDARD PROCEDURE)
2. Remove the wheel.

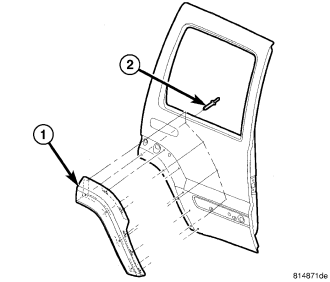

3. Open the rear door and remove the five rivets (2) from the inside surface of the door.
4. Using a trim stick C-4755 or equivalent, separate the clips attaching the molding to the door and remove the molding.

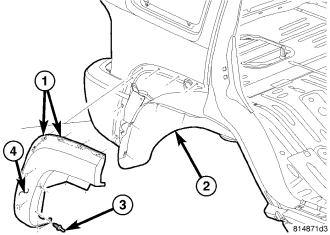

5. Remove the 5 rivets (3) from the rear flare (4) and splash shield (2).
6. Using a trim stick C-4755 or equivalent, separate the clips (1) attaching the molding (4) to the body and the rear fascia and remove the molding.
INSTALLATION
1. Position the rear flare molding and seat the clips (1) attaching it to the body and the rear fascia.
2. Install five new rivets (3) attaching the flare to the splash shield (2).
3. Position the door flare (1) and seat the clips.
4. Install five new rivets (2) through the inside surface of the door attaching the flare to the door.
5. Install the wheel. (Refer to 22 - TIRES/WHEELS/WHEELS - STANDARD PROCEDURE - WHEEL MOUNTING)
