ROCK RAIL
REMOVAL

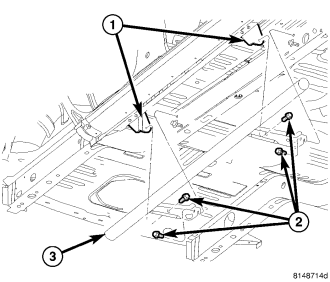

1. Remove the bolts (2) and remove the rock rail.

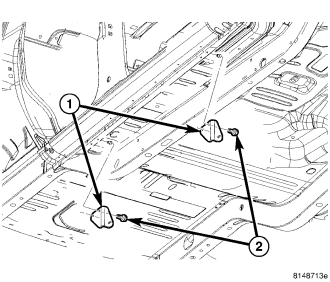

2. Remove the bolts (2) and remove the brackets.
INSTALLATION
1. Install the brackets (1) and install the bolts (2).
2. Tighten the bolts to 23 N·m (200 in. lbs.).
3. Install the rock rails (3) and install the bolts (2).
4. Tighten the bolts to 23 N·m (200 in. lbs.).
