SIDE VIEW MIRROR
REMOVAL

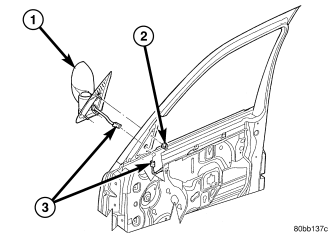

1. Remove the trim panel. (Refer to 23 - BODY/DOOR - FRONT/TRIM PANEL - REMOVAL)
2. Disconnect the electrical connector (3).
3. Remove the three nuts (2) and remove the mirror assembly (1).
INSTALLATION
1. Install the mirror assembly (1).
2. Install the three nuts (2) and tighten to 7 N·m (65 in. lbs.).
3. Connect the electrical connector (3).
4. Install the trim panel. (Refer to 23 - BODY/DOOR - FRONT/TRIM PANEL - INSTALLATION)
