SPECIFICATIONS
FRAME DIMENSIONS
Frame dimensions are listed in metric scale. All dimensions are from center to center of Principal Locating Point (PLP), or from center to center of PLP and fastener location.
VEHICLE PREPARATION
Position the vehicle on a level work surface. Using screw or bottle jacks, adjust the vehicle PLP heights to the specified dimension above a level work surface. Vertical dimensions can be taken from the work surface to the locations indicated were applicable.
NOTE: All measurements are in MM.
DIMENSION ILLUSTRATIONS
| DESCRIPTION |
FIGURE |

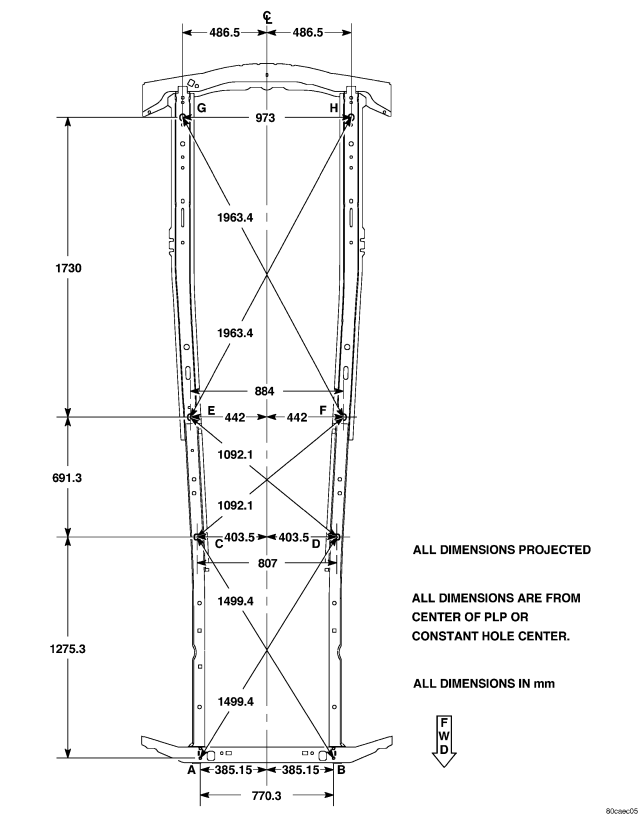

| TOP VIEW |
( BOTTOM VIEW) |

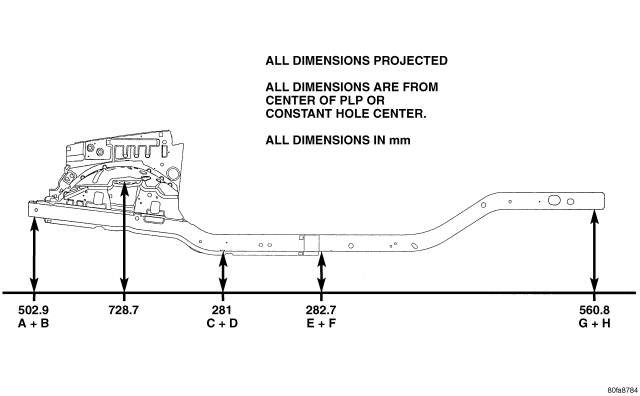

| SIDE VIEW |
( SIDE VIEW) |
| BOTTOM VIEW |
| SIDE VIEW |
TORQUE
DESCRIPTION |
N·m |
Ft. Lbs. |
In. Lbs. |
| Engine cradle crossmember front mounting bolts |
122 |
90 |
— |
| Engine cradle crossmember rear mounting bolts |
115 |
85 |
— |
| Engine mount through bolts/nuts |
88 |
65 |
— |
| Front skid plate bolts |
61 |
45 |
— |
| Front tow hook nuts/bolt |
61 |
45 |
— |
| Fuel tank skid plate |
88 |
65 |
— |
| Rear crossmember bolts |
47 |
35 |
— |
| Rear tow hook bolts |
88 |
65 |
— |
| Trailer hitch bolts |
88 |
65 |
— |
| Transfer case skid plate bolts |
34 |
25 |
— |
| Transmission mount through bolt/nut |
88 |
65 |
— |
