BEARING-DIFFERENTIAL CASE
REMOVAL
1. Remove differential from the housing.

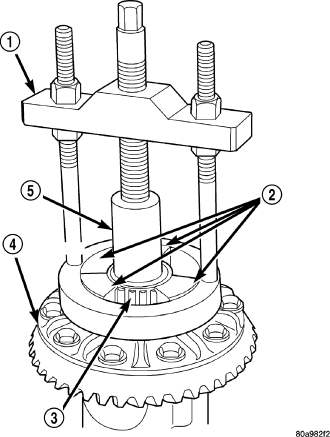

2. Remove bearings (3) from the differential case (4) with Puller/Press C-293-PA (1), Adapters C-293-39 (2) and Plug SP-3289 (5).
INSTALLATION

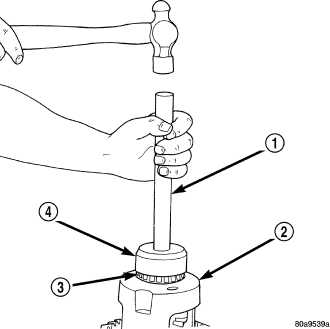

1. Install differential case (2) bearings (3) with Installer C-3716-A (4) and Handle C-4171(1).
2. Install differential into the housing.
