SEAL-AXLE SHAFT
REMOVAL
1. Remove half shaft.
2. Remove axle shaft for right side seal removal.

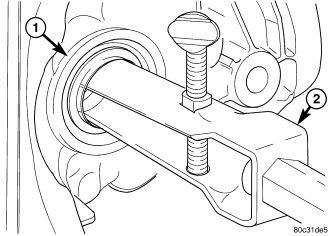

3. Remove shaft seal (1) with Remover 7794-A (2) and a slide hammer.
INSTALLATION
1. Apply a light coat of lubricant on the lip of the shaft seal.

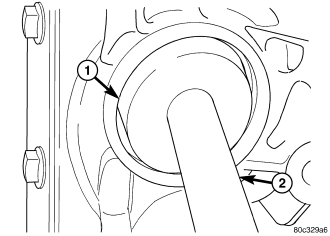

2. Install new shaft seal with Installer 8806 (2) and Handle C-4171(1).
3. Install right axle shaft if removed.
4. Install half shaft.
