STABILIZER LINK
REMOVAL
1. Raise and support the vehicle.
2. Remove the tire and wheel assembly.

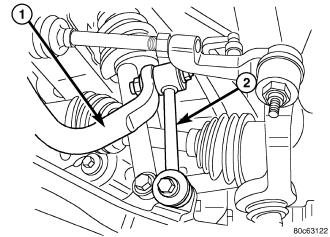

3. Remove the lower stabilizer link bolt (2) at the lower control arm.
4. Remove the upper stabilizer link bolt (2) at the stabilizer bar (1).
5. Remove the stabilizer link (2).
INSTALLATION
1. Install the stabilizer link (2).
2. Install the upper stabilizer link bolt (2) and washer at the stabilizer bar. Tighten the bolt to 136 N·m (100 ft.lbs.).
3. Install the lower stabilizer link bolt (2) and washer at the lower control arm. Tighten the nut to 115 N·m (85 ft.lbs.).
4. Install the tire and wheel assembly. (Refer to 22 - TIRES/WHEELS/WHEELS - STANDARD PROCEDURE).
