SENSOR - ACCELERATOR PEDAL POSITION
DESCRIPTION

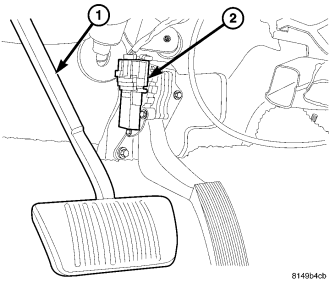

The Accelerator Pedal Position (APP) Sensor is a Hall Effect, angle of rotation sensor. The Accelerator Pedal Position sensor is located inside the accelerator pedal assembly. A magnet located in the pedal shaft cylinder rotates around a hall effect pick-up. The voltage signal increases as the accelerator pedal depresses. The APP sensor receives a 5–volt reference signal from the ECM and based upon the position of the pedal shift magnet relative to the windows on the Hall effect sensor, a portion of the 5 volts is returned to the ECM indicating pedal position.
REMOVAL
1. Disconnect negative battery cable.
2. Disconnect accelerator pedal position sensor electrical connector .
3. Remove accelerator pedal position sensor assembly mounting bolts.
4. Open accelerator pedal position sensor assembly and disconnect accelerator cable.
5. Remove accelerator pedal position sensor assembly.
INSTALLATION
1. Tighten the APP sensor fasteners to 10.8N·m (96 in. lbs.).
2. Connect the APP sensor wiring harness connector.
3. Connect negative battery cable.
